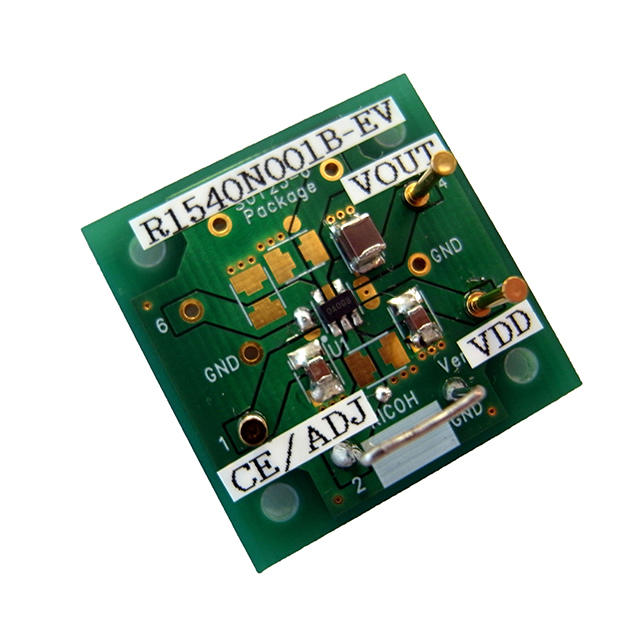

R1540N001B-EV
ActiveNisshinbo Micro Devices Inc
HIGH NOISE IMMUNITY 42 V INPUT V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
R1540N001B-EV
ActiveNisshinbo Micro Devices Inc
HIGH NOISE IMMUNITY 42 V INPUT V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | R1540N001B-EV |
|---|---|
| Board Type | Fully Populated |
| Channels per IC | 1 - Single |
| Current - Output | 70 mA |
| Regulator Type | Positive Adjustable |
| Supplied Contents | Board(s) |
| Utilized IC / Part | R1540N |
| Voltage - Input [Max] | 42 V |
| Voltage - Input [Min] | 3.5 V |
| Voltage - Output [Max] | 14 V |
| Voltage - Output [Min] | 2.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 19.28 | |
| 10 | $ 17.72 | |||
| 100 | $ 14.96 | |||
Description
General part information
R1540 Series
R1540N 1 - Single Channels per IC Positive Adjustable Linear Voltage Regulator Evaluation Board
