5-103944-5
ActiveTE Connectivity AMP Connectors

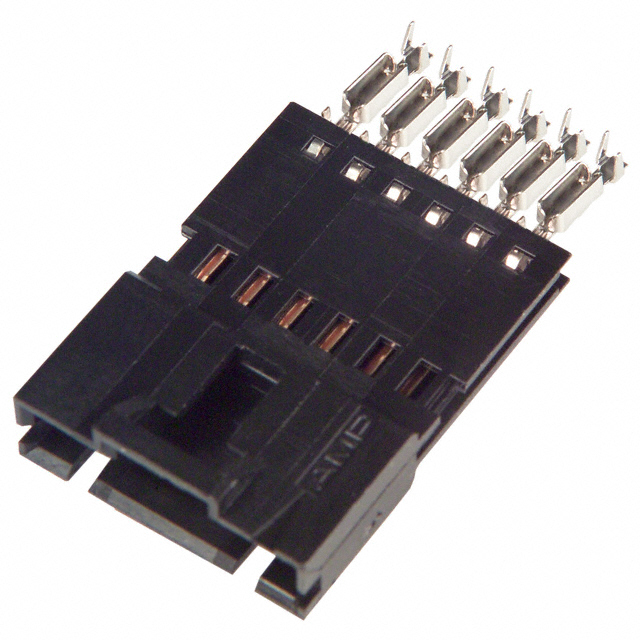

CONN PLUG 6POS IDC 22-26AWG TIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5-103944-5
ActiveTE Connectivity AMP Connectors
CONN PLUG 6POS IDC 22-26AWG TIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 5-103944-5 | 103944 Series |
|---|---|---|
| Cable Termination | IDC | IDC |
| Color | Black | Black |
| Connector Type | Plug | Plug |
| Contact Finish | Tin | Tin, Tin-Lead |
| Contact Finish Thickness | 2.54 µm | 2.54 µm |
| Contact Finish Thickness | 100 µin | 100 µin |
| Contact Type | Male Pin | Male Pin |
| Features | Closed End | Closed End |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 6 | 2 - 9 |
| Number of Rows | 1 | 1 |
| Pitch [x] | 2.54 mm | 2.54 mm |
| Pitch [x] | 0.1 in | 0.1 in |
| Wire Gauge [Max] | 26 AWG | 26 AWG |
| Wire Gauge [Min] | 22 AWG | 22 AWG |
| Wire Type | Ribbon Cable | Ribbon Cable |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1800 | $ 1.61 | |
103944 Series
CONN PLUG 9POS IDC 22-26AWG TIN
| Part | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Pitch [x] | Pitch [x] | Wire Type | Features | Contact Finish | Number of Rows | Color | Cable Termination | Wire Gauge [Min] | Wire Gauge [Max] | Mounting Type | Connector Type | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 5-103944-8 | 9 | 2.54 µm | 100 µin | 2.54 mm | 0.1 in | Ribbon Cable | Closed End | Tin | 1 | Black | IDC | 22 AWG | 26 AWG | Free Hanging (In-Line) | Plug | Male Pin |
TE Connectivity AMP Connectors 5-103944-4 | 2.54 µm | 100 µin | 2.54 mm | 0.1 in | Ribbon Cable | Closed End | Tin | 1 | Black | IDC | 22 AWG | 26 AWG | Free Hanging (In-Line) | Plug | Male Pin | |
TE Connectivity AMP Connectors 103944-3 | 4 | 2.54 µm | 100 µin | 2.54 mm | 0.1 in | Ribbon Cable | Closed End | Tin-Lead | 1 | Black | IDC | 22 AWG | 26 AWG | Free Hanging (In-Line) | Plug | Male Pin |
TE Connectivity AMP Connectors 5-103944-1 | 2 | 2.54 µm | 100 µin | 2.54 mm | 0.1 in | Ribbon Cable | Closed End | Tin | 1 | Black | IDC | 22 AWG | 26 AWG | Free Hanging (In-Line) | Plug | Male Pin |
TE Connectivity AMP Connectors 103944-4 | 2.54 µm | 100 µin | 2.54 mm | 0.1 in | Ribbon Cable | Closed End | Tin-Lead | 1 | Black | IDC | 22 AWG | 26 AWG | Free Hanging (In-Line) | Plug | Male Pin | |
TE Connectivity AMP Connectors 103944-6 | 7 | 2.54 µm | 100 µin | 2.54 mm | 0.1 in | Ribbon Cable | Closed End | Tin-Lead | 1 | Black | IDC | 22 AWG | 26 AWG | Free Hanging (In-Line) | Plug | Male Pin |
TE Connectivity AMP Connectors 5-103944-2 | 2.54 µm | 100 µin | 2.54 mm | 0.1 in | Ribbon Cable | Closed End | Tin | 1 | Black | IDC | 22 AWG | 26 AWG | Free Hanging (In-Line) | Plug | Male Pin | |
TE Connectivity AMP Connectors 5-103944-5 | 6 | 2.54 µm | 100 µin | 2.54 mm | 0.1 in | Ribbon Cable | Closed End | Tin | 1 | Black | IDC | 22 AWG | 26 AWG | Free Hanging (In-Line) | Plug | Male Pin |
TE Connectivity AMP Connectors 103944-7 | 8 | 2.54 µm | 100 µin | 2.54 mm | 0.1 in | Ribbon Cable | Closed End | Tin-Lead | 1 | Black | IDC | 22 AWG | 26 AWG | Free Hanging (In-Line) | Plug | Male Pin |
TE Connectivity AMP Connectors 5-103944-3 | 4 | 2.54 µm | 100 µin | 2.54 mm | 0.1 in | Ribbon Cable | Closed End | Tin | 1 | Black | IDC | 22 AWG | 26 AWG | Free Hanging (In-Line) | Plug | Male Pin |
TE Connectivity AMP Connectors 5-103944-6 | 7 | 2.54 µm | 100 µin | 2.54 mm | 0.1 in | Ribbon Cable | Closed End | Tin | 1 | Black | IDC | 22 AWG | 26 AWG | Free Hanging (In-Line) | Plug | Male Pin |
Description
General part information
103944 Series
6 Position Rectangular Plug Connector IDC Tin 22-26 AWG
