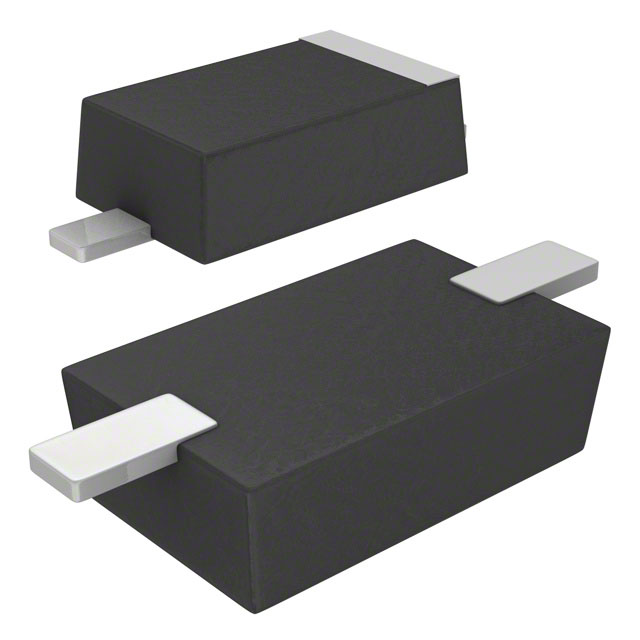

DB2X41500L

Obsolete

Panasonic Industrial Automation Sales

RECTIFIER DIODE, SCHOTTKY, 1 PHASE, 1 ELEMENT, 3A, 40V V(RRM), SILICON, HALOGEN FREE AND ROHS COMPLIANT, MINI2-F4-B, SC-109D, 2 PIN

Search across all available documentation for this part.

Obsolete

Panasonic Industrial Automation Sales

RECTIFIER DIODE, SCHOTTKY, 1 PHASE, 1 ELEMENT, 3A, 40V V(RRM), SILICON, HALOGEN FREE AND ROHS COMPLIANT, MINI2-F4-B, SC-109D, 2 PIN

Technical Specifications

Parameters and characteristics for this part

Specification	DB2X41500L

Capacitance @ Vr, F	70 pF
Current - Average Rectified (Io)	3 A
Current - Reverse Leakage @ Vr	200 µA
Mounting Type	Surface Mount
Operating Temperature - Junction	125 °C
Package / Case	SOD-123F
Reverse Recovery Time (trr)	25 ns
Speed	200 mA, 500 ns
Supplier Device Package	Mini2-F4-B
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	40 V
Voltage - Forward (Vf) (Max) @ If	550 mV

Part	Reverse Recovery Time (trr)	Supplier Device Package	Mounting Type	Package / Case	Current - Average Rectified (Io)	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Reverse Leakage @ Vr	Voltage - Forward (Vf) (Max) @ If	Capacitance @ Vr, F	Speed	Operating Temperature - Junction	Technology
Panasonic Industrial Automation Sales DB2X41500L	25 ns	Mini2-F4-B	Surface Mount	SOD-123F	3 A	40 V	200 µA	550 mV	70 pF	200 mA 500 ns	125 °C	Schottky

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Diode 40 V 3A Surface Mount Mini2-F4-B
