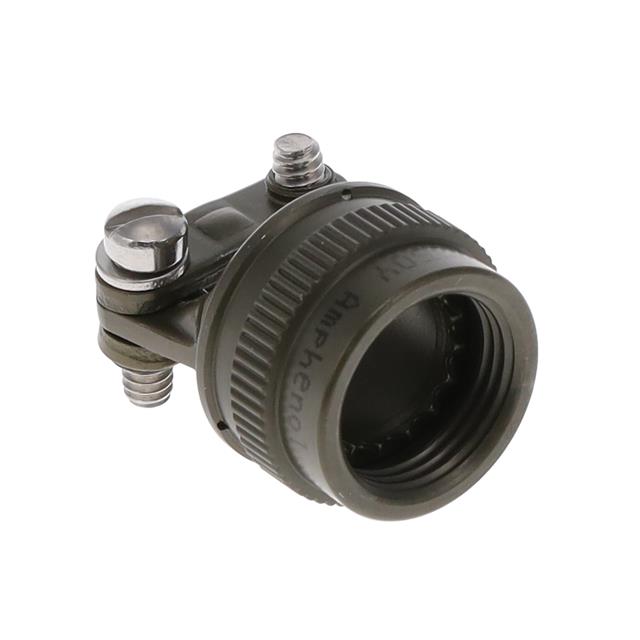

M85049/49-2-10W

Active

Amphenol Interconnect India

CONN CABLE CLAMP SZ10 11 OLIVE

Deep-Dive with AI

Search across all available documentation for this part.

M85049/49-2-10W

Active

Amphenol Interconnect India

CONN CABLE CLAMP SZ10 11 OLIVE

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M85049/49-2-10W

Cable Exit	180 °
Cable Opening [Max] [custom]	5.94 mm
Cable Opening [Max] [custom]	0.234 in
Cable Opening [Min] [custom]	0.153 in
Cable Opening [Min] [custom]	3.89 mm
Color	Olive Drab
Diameter - Outside [diameter]	21.59 mm
Diameter - Outside [diameter]	0.85 in
Features	Clamp Screws
For Use With/Related Products	MIL-DTL-38999 Series I, II
Material	Aluminum Alloy
Plating	Cadmium
Shell Size - Insert	10, 11
Shielding	Unshielded
Type	Cable Clamp

M85049/49 Series

Part	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Color	Plating	Shell Size - Insert	Material	Cable Exit	Type	Features	Shielding	For Use With/Related Products	Cable Opening [diameter]	Cable Opening [diameter]	Thread Size	Cable Opening [custom]	Cable Opening [custom]
Amphenol Interconnect India M85049/49-2-20W	0.698 in	17.73 mm	8.71 mm	0.343 in	38.1 mm	1.5 in	Olive Drab	Cadmium	20 21	Aluminum Alloy	180 °	Cable Clamp	Clamp Screws	Unshielded	MIL-DTL-38999 Series I II
Amphenol Interconnect India M85049/49-2-18W	0.634 in	16.1 mm	8.25 mm	0.325 in	35.56 mm	1.4 in	Olive Drab	Cadmium		Aluminum Alloy	180 °	Cable Clamp	Clamp Screws	Unshielded	MIL-DTL-38999 Series I II
Amphenol Interconnect India M85049/49-2S12N					29.36 mm	1.156 in	Silver	Electroless Nickel	12 13	Aluminum Alloy	180 °	Cable Clamp	Clamp Screws Self-Locking	Unshielded	MIL-DTL-38999 Series I II	4.83 mm 8.33 mm	0.19 in 0.328 in
Amphenol Interconnect India M85049/49-2S12W					29.36 mm	1.156 in	Olive Drab	Cadmium	12 13	Aluminum Alloy	180 °	Cable Clamp	Clamp Screws Self-Locking	Unshielded	MIL-DTL-38999 Series I II	4.83 mm 8.33 mm	0.19 in 0.328 in
Amphenol Interconnect India M85049/49-2-10W	0.234 in	5.94 mm	3.89 mm	0.153 in	21.59 mm	0.85 in	Olive Drab	Cadmium	10 11	Aluminum Alloy	180 °	Cable Clamp	Clamp Screws	Unshielded	MIL-DTL-38999 Series I II
Amphenol Interconnect India M85049/49-2-12N							Silver	Electroless Nickel	12	Aluminum Alloy	180 °	Cable Clamp	Clamp Screws	Unshielded	MIL-DTL-27599 MIL-DTL-38999 Series I MIL-DTL-38999 Series II			11/16-24 UNEF
Amphenol Interconnect India M85049/49-2S22W					44.7 mm	1.76 in	Olive	Cadmium	22	Aluminum Alloy	180 °	Cable Clamp	Clamp Screws Self-Locking	Unshielded	MIL-DTL-38999 Series I II				16.26 mm 24.38 mm	0.64 in 0.96 in
Amphenol Interconnect India M85049/49-2S20N	0.698 in	17.73 mm	8.71 mm	0.343 in	41.68 mm	1.641 "	Silver	Electroless Nickel	20 21	Aluminum Alloy	180 °	Cable Clamp	Clamp Screws Self-Locking	Unshielded	MIL-DTL-38999 Series I II
Amphenol Interconnect India M85049/49-2-14W							Olive	Cadmium Nickel	14	Aluminum Alloy	180 °	Cable Clamp	Clamp Screws	Unshielded	MIL-DTL-27599 MIL-DTL-38999 Series I MIL-DTL-38999 Series II			13/16-20 UNEF
Amphenol Interconnect India M85049/49-2S10W	0.234 in	5.94 mm	3.89 mm	0.153 in	25 mm	0.984 "	Olive Drab	Cadmium	10 11	Aluminum Alloy	180 °	Cable Clamp	Clamp Screws Self-Locking	Unshielded	MIL-DTL-38999 Series I II

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 14.62
		25	$ 12.46
		100	$ 11.30
		1000	$ 8.84

Description

General part information

M85049/49 Series

Olive Drab Connector Cable Clamp 10, 11

Documents

Technical documentation and resources

No documents available
