1-794550-8

Obsolete

TE Connectivity AMP Connectors

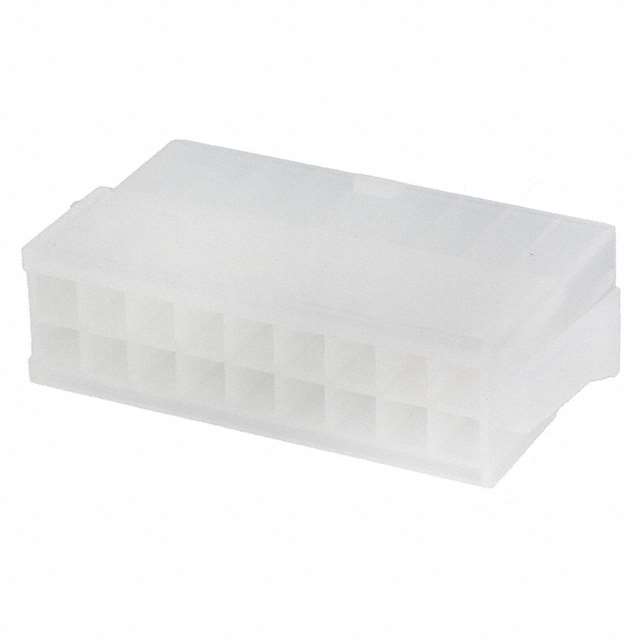

CONN PLUG HSG 18POS 4.20MM

Search across all available documentation for this part.

Obsolete

TE Connectivity AMP Connectors

CONN PLUG HSG 18POS 4.20MM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

18 Rectangular Connectors - Housings Plug Natural 0.165" (4.20mm)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

CONN PLUG HSG 6POS 4.20MM

Part	Fastening Type	Note	Color	Contact Type	Number of Rows	Number of Positions	Row Spacing	Row Spacing	Mounting Type	Connector Type	Pitch [x]	Pitch [x]	Contact Termination	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Material
TE Connectivity AMP Connectors 794550-6	Locking Ramp	Contacts Not Included	Natural	Male Pin	2	6	4.2 mm	0.165 in	Panel Mount, Snap-In	Plug	4.2 mm	0.165 in	Crimp
TE Connectivity AMP Connectors 1-794550-8	Locking Ramp	Contacts Not Included	Natural	Male Pin	2	18	4.2 mm	0.165 in	Panel Mount, Snap-In	Plug	4.2 mm	0.165 in	Crimp
TE Connectivity AMP Connectors 794550-2	Locking Ramp	Contacts Not Included	Natural	Male Pin	2	2	4.2 mm	0.165 in	Panel Mount, Snap-In	Plug			Crimp	105 ░C	-55 °C	Nylon, Polyamide (PA)
TE Connectivity AMP Connectors 2-794550-0	Locking Ramp	Contacts Not Included	Natural	Male Pin	2	20	4.2 mm	0.165 in	Panel Mount, Snap-In	Plug	4.2 mm	0.165 in	Crimp
