1-1337417-0

Active

TE Connectivity AMP Connectors

CONN N JACK STR 50 OHM SOLDER

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN N JACK STR 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	1-1337417-0

Body Finish	Silver
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Silver
Connector Style	N Type
Connector Type	Female Socket, Jack
Contact Termination	Solder Cup
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Nut, 1 Solder Tag, 1 Connector, 1 Lockwasher
Mating Cycles	500
Mounting Feature	Bulkhead - Rear Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder Tag
Voltage Rating	1000 VDC

CONN N JACK STR 50 OHM SOLDER

Part	Shield Termination	Frequency - Max [Max]	Impedance	Center Contact Plating	Voltage Rating	Housing Color	Dielectric Material	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Connector Style	Mating Cycles	Body Material	Center Contact Material	Body Finish	Mounting Feature	Includes	Number of Ports	Contact Termination
TE Connectivity AMP Connectors 1-1337417-0	Solder Tag	11 GHz	50 Ohms	Silver	1000 VDC	Silver	Polytetrafluoroethylene (PTFE)	Female Socket, Jack	-65 ░C	165 °C	N Type	500	Brass	Brass	Silver	Bulkhead - Rear Side Nut	1 Connector, 1 Lockwasher, 1 Nut, 1 Solder Tag	1	Solder Cup

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

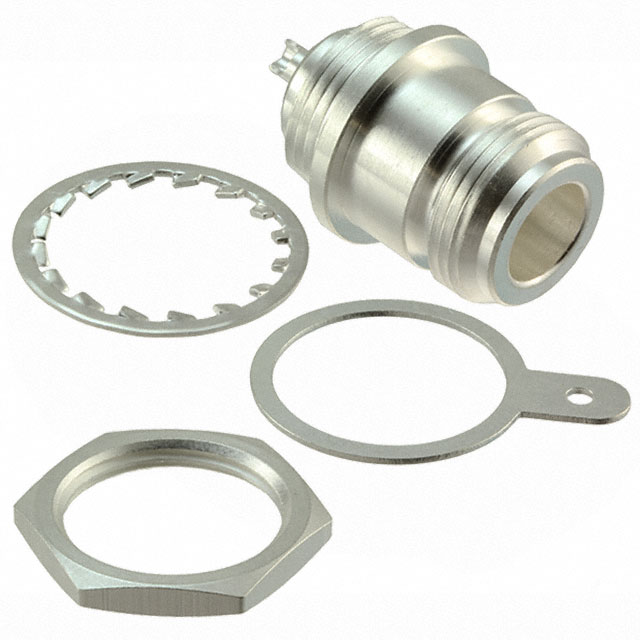

N Type Connector Jack, Female Socket 50 Ohms Panel Mount Solder Cup
