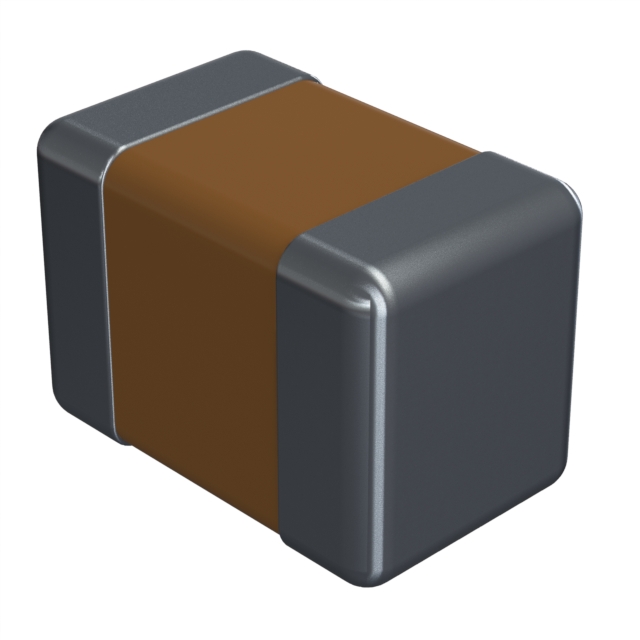

CDR01BX681BKUS7185
ActiveKEMET
CAP CER 680PF 100V BX 0805
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CDR01BX681BKUS7185 |
|---|---|
| Applications | High Reliability |
| Capacitance | 680 pF |
| Failure Rate | S (0.001%) |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 0805 |
| Size / Dimension [x] | 2.03 mm |
| Size / Dimension [x] | 0.08 " |
| Size / Dimension [y] | 0.05 " |
| Size / Dimension [y] | 1.27 mm |
| Temperature Coefficient | BX |
| Thickness (Max) [Max] | 1.4 mm |
| Thickness (Max) [Max] [custom] | 0.055 in |
| Tolerance | 10 % |
| Voltage - Rated | 100 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.64 | |
| 10 | $ 1.09 | |||
| Digi-Reel® | 1 | $ 1.64 | ||
| 10 | $ 1.09 | |||
| Tape & Reel (TR) | 100 | $ 0.81 | ||
| 200 | $ 0.75 | |||
| 300 | $ 0.72 | |||
| 500 | $ 0.69 | |||
| 700 | $ 0.68 | |||
| 1000 | $ 0.66 | |||
| 2500 | $ 0.62 | |||
| 5000 | $ 0.60 | |||
| 10000 | $ 0.58 | |||
Description
General part information
CDR01 Series
680 pF ±10% 100V Ceramic Capacitor BX 0805 (2012 Metric)
