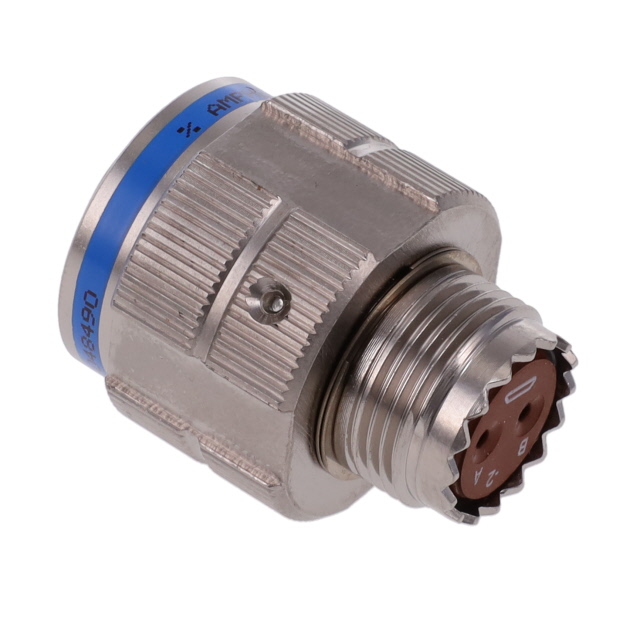

D38999/26FB2SN-LC
ActiveAmphenol Aerospace Operations
CONN PLUG HSNG FMALE 2POS INLINE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | D38999/26FB2SN-LC |
|---|---|
| Connector Type | Plug Housing |
| Contact Shape | Circular |
| Contact Size | 16 |
| Contact Type | Crimp |
| Features | Coupling Nut, Self Locking |
| Grade | Military |
| Housing Color | Silver |
| Ingress Protection | Environment Resistant |
| Insert Material | Thermoplastic |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 2 |
| Operating Temperature [Max] | 200 °C |
| Operating Temperature [Min] | -65 ░C |
| Orientation | N |
| Primary Material | Metal |
| Qualification | MIL-DTL-38999 Series III |
| Shell Finish | Electroless Nickel |
| Shell Material | Aluminum |
| Shell Size - Insert | 11-2 |
| Shell Size, MIL | B |
| Shielding | Shielded |
| Type | For Female Sockets |
D38999/26FB Series
| Part | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Shell Size - Insert [Min] | Shell Size - Insert [Max] | Ingress Protection | Contact Material | Shielding | Shell Finish | Connector Type | Qualification | Features | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Shell Size, MIL | Color | Contact Finish - Mating | Grade | Orientation | Shell Material | Mounting Type | Number of Positions | Applications | Primary Material | Housing Color | Contact Shape | Contact Type | Contact Size | Type | Note | Shell Size - Insert | Insert Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Aerospace Operations | 1.27 µm | 50 µin | 11 | 35 | Environment Resistant | Copper Alloy | Shielded | Electroless Nickel | Male Pins Plug | MIL-DTL-38999 Series III | Coupling Nut | Crimp | -65 ░C | 200 °C | B | Silver | Gold | Military | N | Aluminum | Free Hanging (In-Line) | 13 | Aerospace Aviation Military | Metal | ||||||||
Amphenol Aerospace Operations | 2.54 çm | 100 çin | 11 | 35 | Environment Resistant | Copper Alloy | Shielded | Electroless Nickel | Female Sockets Plug | MIL-DTL-38999 Series III | Coupling Nut | Crimp | -65 ░C | 200 °C | B | Silver | Gold | Military | N | Aluminum | Free Hanging (In-Line) | 13 | Aerospace Aviation Military | Metal | ||||||||
Amphenol Aerospace Operations | Environment Resistant | Shielded | Electroless Nickel | Plug Housing | MIL-DTL-38999 Series III | Coupling Nut Self Locking | -65 ░C | 200 °C | B | Military | A | Aluminum | Free Hanging (In-Line) | Silver | Circular | Crimp | 20 | For Male Pins | Contacts Not Included | 11-5 | ||||||||||||
Amphenol Aerospace Operations | Environment Resistant | Shielded | Electroless Nickel | Plug Housing | MIL-DTL-38999 Series III | Coupling Nut Self Locking | -65 ░C | 200 °C | B | Military | A | Aluminum | Free Hanging (In-Line) | 6 | Silver | Circular | Crimp | 20 | For Male Pins | Contacts Not Included | 11-98 | |||||||||||
Amphenol Aerospace Operations | 1.27 µm | 50 µin | 11 | 35 | Environment Resistant | Copper Alloy | Shielded | Electroless Nickel | Male Pins Plug | MIL-DTL-38999 Series III | Coupling Nut | Crimp | -65 ░C | 200 °C | B | Silver | Gold | Military | A | Aluminum | Free Hanging (In-Line) | 13 | Aerospace Aviation Marine Military | Metal | ||||||||
Amphenol Aerospace Operations | Environment Resistant | Shielded | Electroless Nickel | Plug Housing | MIL-DTL-38999 Series III | Coupling Nut Self Locking | -65 ░C | 200 °C | B | Military | A | Aluminum | Free Hanging (In-Line) | 6 | Metal | Silver | Circular | Crimp | 20 | For Male Pins | Contacts Not Included | 11-98 | Thermoplastic | |||||||||
Amphenol Aerospace Operations | Environment Resistant | Shielded | Electroless Nickel | Plug Housing | MIL-DTL-38999 Series III | Coupling Nut Self Locking | -65 ░C | 200 °C | B | Military | A | Aluminum | Free Hanging (In-Line) | Silver | Circular | Crimp | 20 | For Male Pins | Contacts Not Included | 11-5 | ||||||||||||
Amphenol Aerospace Operations | 2.54 çm | 100 çin | 11 | 35 | Environment Resistant | Copper Alloy | Shielded | Electroless Nickel | Male Pins Plug | MIL-DTL-38999 Series III | Coupling Nut Self Locking | Crimp | -65 ░C | 200 °C | B | Silver | Gold | Military | A | Aluminum | Free Hanging (In-Line) | 13 | Aviation Marine Military | Metal | ||||||||
Amphenol Aerospace Operations | 1.27 µm | 50 µin | 11 | 35 | Environment Resistant | Copper Alloy | Shielded | Electroless Nickel | Female Sockets Plug | MIL-DTL-38999 Series III | Coupling Nut | Crimp | -65 ░C | 200 °C | B | Silver | Gold | Military | N | Aluminum | Free Hanging (In-Line) | 13 | Aerospace Aviation Marine Military | Metal | ||||||||
Amphenol Aerospace Operations | Environment Resistant | Shielded | Electroless Nickel | Plug Housing | MIL-DTL-38999 Series III | Coupling Nut Self Locking | -65 ░C | 200 °C | B | Military | N | Aluminum | Free Hanging (In-Line) | 2 | Metal | Silver | Circular | Crimp | 16 | For Female Sockets | Contacts Not Included | 11-2 | Thermoplastic |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 198.22 | |
| 10 | $ 176.44 | |||
Description
General part information
D38999/26FB Series
2 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut, Self Locking
