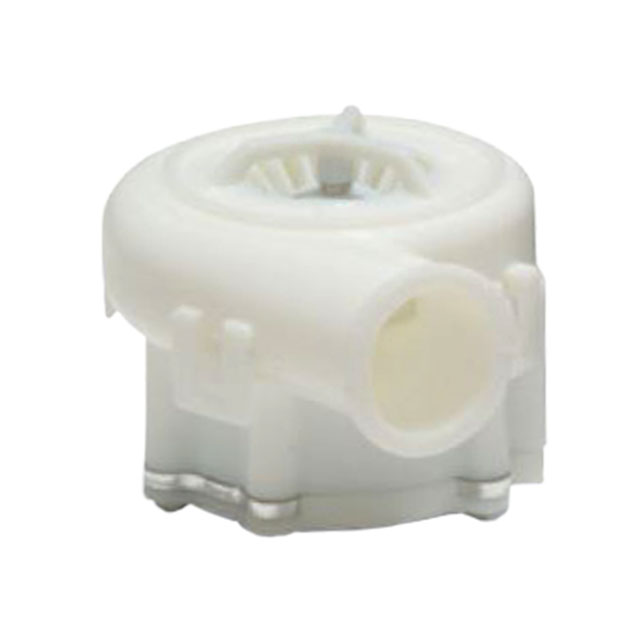

TF029B-1000-F
ActiveNidec Components Corporation
FAN BLOWER 49.4X33.6MM 24VDC
TF029B-1000-F
ActiveNidec Components Corporation
FAN BLOWER 49.4X33.6MM 24VDC
Description
General part information
TF029B Series
Fan Blower, Centrifugal 24VDC Rectangular/Rounded - 49.4mm L x 41.5mm H Aerodynamic 3.5 CFM (0.098m³/min) 5 Wire Leads
Technical Specifications
Parameters and characteristics for this part
| Specification | TF029B-1000-F |
|---|---|
| Air Flow | 3.5 CFM |
| Bearing Type | Aerodynamic |
| Current Rating | 0.62 A |
| Fan Type | Blower, Centrifugal |
| Noise | 65 dB |
| Operating Temperature (Max) | 122 °F |
| Operating Temperature (Min) | 32 °F |
| Power (Watts) | 14.9 W |
| RPM | 36000 RPM |
| Size / Dimension Height | 41.5 mm |
| Size / Dimension Length | 49.4 mm |
| Size / Dimension Shape | Rectangular/Rounded |
| Static Pressure | 8.03 in H2O |
| Termination | 5 Wire Leads |
| Termination Leads Count | 5 |
| Termination Type | Wire Leads |
| Voltage - Rated | 24 VAC |
| Voltage Range (Max) | 27 VDC |
| Voltage Range (Min) | 12 V |
| Weight | 0.121 lb |
| Width | 33.6 mm |
