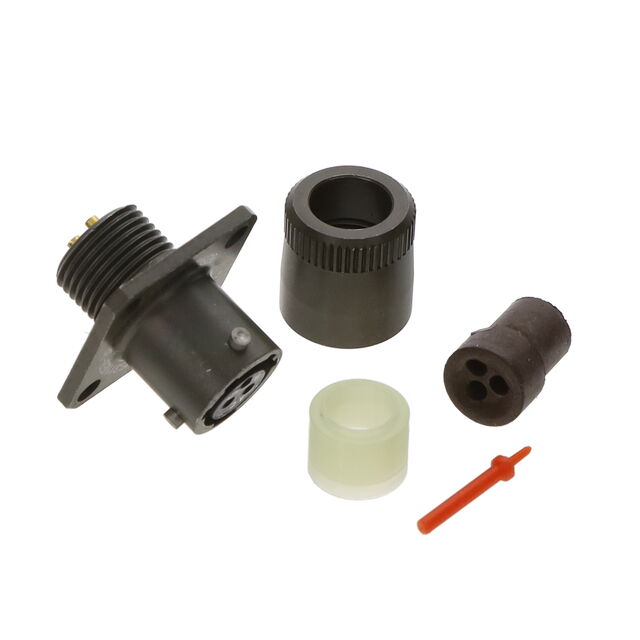

MS3110E8-3S
ActiveAmphenol Industrial Operations
MIL-26482 MS/PT/CMB RECEPT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MS3110E8-3S
ActiveAmphenol Industrial Operations
MIL-26482 MS/PT/CMB RECEPT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MS3110E8-3S | MS3110E8 Series |
|---|---|---|
| - | - | |
| Applications | Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military | Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military |
| Backshell Material, Plating | - | Aluminum, Olive Drab Chromate over Cadmium |
| Color | Olive Drab | Olive Drab |
| Connector Type | Receptacle, Female Sockets | Receptacle, Male Pins, Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 7.5 A | 7.5 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Backshell | Backshell |
| Grade | Military | Military |
| Ingress Protection | Environment Resistant | Environment Resistant |
| Insert Material | Neoprene | Neoprene |
| Mounting Feature | Flange | Flange |
| Number of Positions | - | 4 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | N | N |
| Primary Material | Metal | Metal |
| Qualification | MIL-DTL-26482 Series I | MIL-DTL-26482 Series I |
| Shell Finish | Olive Drab Chromate over Cadmium | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum | Aluminum |
| Shell Size - Insert | 8-3 | 8-4, 8-3 |
| Shielding | Unshielded | Unshielded |
| Voltage Rating | 600 VAC | 600 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 67.08 | |
| 10 | $ 61.56 | |||
| 25 | $ 59.19 | |||
| 50 | $ 57.22 | |||
| 100 | $ 54.06 | |||
MS3110E8 Series
CONN RCPT MALE 4P GOLD SLDR CUP
| Part | Primary Material | Number of Positions | Insert Material | Color | Connector Type | Applications | Contact Finish - Mating | Qualification | Features | Shell Finish | Orientation | Shell Material | Mounting Feature | Shielding | Backshell Material, Plating | Fastening Type | Operating Temperature [Min] | Operating Temperature [Max] | Shell Size - Insert | Contact Material | Grade | Ingress Protection | Voltage Rating | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations MS3110E8-4P | Metal | 4 | Neoprene | Olive Drab | Male Pins, Receptacle | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Gold | MIL-DTL-26482 Series I | Backshell | Olive Drab Chromate over Cadmium | N | Aluminum | Flange | Unshielded | Aluminum, Olive Drab Chromate over Cadmium | Bayonet Lock | -55 °C | 125 °C | 8-4 | Copper Alloy | Military | Environment Resistant | ||
Amphenol Industrial Operations MS3110E8-2S | ||||||||||||||||||||||||
Amphenol Industrial Operations MS3110E8-3S | Metal | Neoprene | Olive Drab | Receptacle, Female Sockets | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Gold | MIL-DTL-26482 Series I | Backshell | Olive Drab Chromate over Cadmium | N | Aluminum | Flange | Unshielded | Bayonet Lock | -55 °C | 125 °C | 8-3 | Copper Alloy | Military | Environment Resistant | 600 VAC | 7.5 A | ||
Amphenol Industrial Operations MS3110E8-3P | ||||||||||||||||||||||||
Amphenol Industrial Operations MS3110E8-4S | Metal | 4 | Neoprene | Olive Drab | Receptacle, Female Sockets | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Gold | MIL-DTL-26482 Series I | Backshell | Olive Drab Chromate over Cadmium | N | Aluminum | Flange | Unshielded | Aluminum, Olive Drab Chromate over Cadmium | Bayonet Lock | -55 °C | 125 °C | 8-4 | Copper Alloy | Military | Environment Resistant |
Description
General part information
MS3110E8 Series
3 Position Circular Connector Receptacle, Female Sockets Solder Cup
