ISL6700IR

Active

Intersil

HALF BRIDGE BASED MOSFET DRIVER

Search across all available documentation for this part.

Active

Intersil

HALF BRIDGE BASED MOSFET DRIVER

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ISL6700IR	ISL6700 Series

Channel Type	Independent	Independent
Current - Peak Output (Source, Sink) [custom]	1.3 A	1.3 A
Current - Peak Output (Source, Sink) [custom]	1.4 A	1.4 A
Driven Configuration	Half-Bridge	Half-Bridge
Gate Type	N-Channel MOSFET	N-Channel MOSFET
High Side Voltage - Max (Bootstrap) [Max]	80 V	80 V
Input Type	Non-Inverting	Non-Inverting
Logic Voltage - VIL, VIH [custom]	2.2 V	2.2 V
Logic Voltage - VIL, VIH [custom]	0.8 V	0.8 V
Mounting Type	Surface Mount	Surface Mount
Number of Drivers	2	2
Operating Temperature [Max]	125 ¯C	125 ¯C
Operating Temperature [Min]	-40 °C	-40 °C

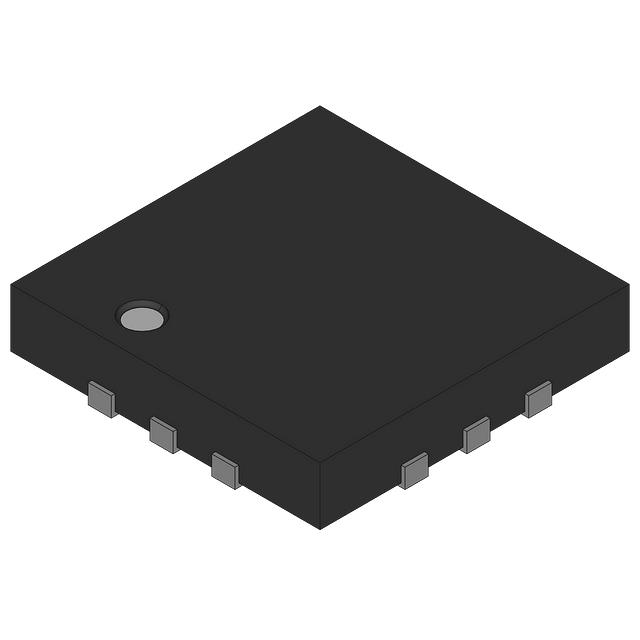

Package / Case	12-VQFN Exposed Pad	12-VQFN Exposed Pad
Supplier Device Package	12-QFN (4x4)	12-QFN (4x4)
Voltage - Supply [Max]	15 V	15 V
Voltage - Supply [Min]	9 V	9 V

HALF BRIDGE BASED MOSFET DRIVER

Part	Supplier Device Package	Voltage - Supply [Max]	Voltage - Supply [Min]	Number of Drivers	Mounting Type	Input Type	Gate Type	Channel Type	Package / Case	Current - Peak Output (Source, Sink) [custom]	Current - Peak Output (Source, Sink) [custom]	High Side Voltage - Max (Bootstrap) [Max]	Logic Voltage - VIL, VIH [custom]	Logic Voltage - VIL, VIH [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Driven Configuration
Intersil ISL6700IR	12-QFN (4x4)	15 V	9 V	2	Surface Mount	Non-Inverting	N-Channel MOSFET	Independent	12-VQFN Exposed Pad	1.3 A	1.4 A	80 V	2.2 V	0.8 V	-40 °C	125 ¯C	Half-Bridge
Intersil ISL6700IR-T	12-QFN (4x4)	15 V	9 V	2	Surface Mount	Non-Inverting	N-Channel MOSFET	Independent	12-VQFN Exposed Pad	1.3 A	1.4 A	80 V	2.2 V	0.8 V	-40 °C	125 ¯C	Half-Bridge

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	229	$ 1.31

General part information

Half-Bridge Gate Driver IC Non-Inverting 12-QFN (4x4)
