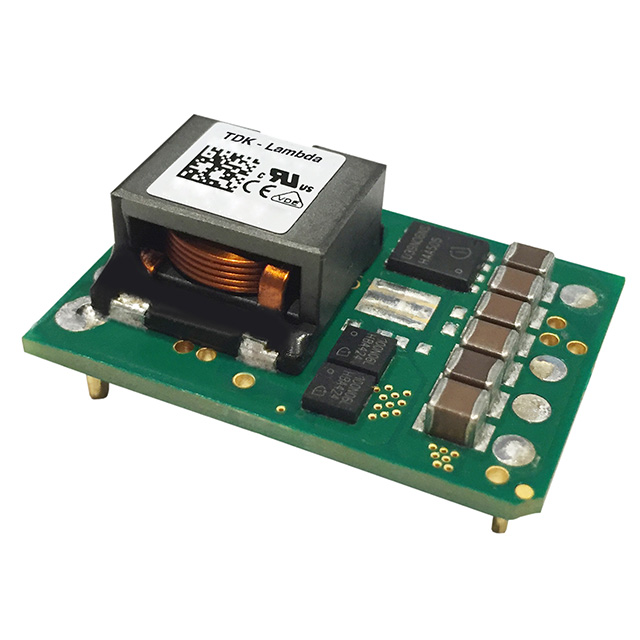

I6A4W020A033V-002-R

Active

TDK-LAMBDA

NON ISOLATED POL DC/DC CONVERTER, ITE, SIXTEENTH BRICK, 250 W, 3.3 V, 15 V, 20 A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Safety Data Sheet EN

I6A4W020A033V-002-R

Active

TDK-LAMBDA

NON ISOLATED POL DC/DC CONVERTER, ITE, SIXTEENTH BRICK, 250 W, 3.3 V, 15 V, 20 A

Deep-Dive with AI

DocumentsDatasheet Safety Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	I6A4W020A033V-002-R

Applications	ITE (Commercial)
Approval Agency	CE
Control Features	Active High, Enable
Current - Output (Max) [Max]	20 A
Efficiency	97 %
Features	OCP, Remote On/Off
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Sixteenth Brick
Power (Watts)	250 W
Size / Dimension [x]	33 mm
Size / Dimension [x]	1.3 "
Size / Dimension [y]	0.9 "
Size / Dimension [y]	22.9 mm
Size / Dimension [z]	12.7 mm
Size / Dimension [z]	0.5 in
Supplier Device Package	Sixteenth Brick
Type	Non-Isolated PoL Module
Voltage - Input (Max) [Max]	53 V
Voltage - Input (Min) [Min]	9 V
Voltage - Output 1 [Max]	15 V
Voltage - Output 1 [Min]	3.3 V

I6A4W020 Series

Part	Package / Case	Type	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Control Features	Efficiency	Features	Applications	Supplier Device Package	Mounting Type	Number of Outputs	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]
TDK-LAMBDA I6A4W020A033V-003-R	Sixteenth Brick	Non-Isolated PoL Module	CE	125 °C	-40 °C	250 W	53 V	20 A	9 V	15 V	3.3 V	Active Low Enable	97 %	OCP Remote On/Off	ITE (Commercial)	Sixteenth Brick	Through Hole	1	12.7 mm	0.9 "	22.9 mm	0.5 in	33 mm	1.3 "
TDK-LAMBDA I6A4W020A033V-002-R	Sixteenth Brick	Non-Isolated PoL Module	CE	125 °C	-40 °C	250 W	53 V	20 A	9 V	15 V	3.3 V	Active High Enable	97 %	OCP Remote On/Off	ITE (Commercial)	Sixteenth Brick	Through Hole	1	12.7 mm	0.9 "	22.9 mm	0.5 in	33 mm	1.3 "
TDK-LAMBDA I6A4W020A033V-0S1-R	20-SIP Module 18 Leads	Non-Isolated PoL Module	CE	125 °C	-40 °C	250 W	53 V	20 A	9 V	15 V	3.3 V	Active Low Enable	97 %	OCP Remote On/Off	ITE (Commercial)	SIP	Through Hole	1	24.8 mm	0.45 in	11.4 mm	0.98 in	33 mm	1.3 "
TDK-LAMBDA I6A4W020A033V-0S3-R	20-SIP Module 18 Leads	Non-Isolated PoL Module	CE	125 °C	-40 °C	250 W	53 V	20 A	9 V	15 V	3.3 V	Active Low Enable	97 %	OCP Remote On/Off	ITE (Commercial)	SIP	Through Hole	1	24.8 mm	0.45 in	11.4 mm	0.98 in	33 mm	1.3 "
TDK-LAMBDA I6A4W020A033V-001-R	Sixteenth Brick	Non-Isolated PoL Module	CE	125 °C	-40 °C	250 W	53 V	20 A	9 V	15 V	3.3 V	Active Low Enable	97 %	OCP OTP Remote On/Off SCP	ITE (Commercial)	Sixteenth Brick	Through Hole	1	12.7 mm	0.9 "	22.9 mm	0.5 in	33 mm	1.3 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 37.45
		10	$ 37.40
		25	$ 35.43
		50	$ 33.42
Newark	Each	25	$ 35.43
		50	$ 33.42

Description

General part information

I6A4W020 Series

I6A4W020A033V-002-R is an i6A4W series non-isolated DC-DC step-down converter is ideal for creating additional high current output voltage rails. The highly accepts a very wide DC input and has a wide output adjustment range, with a choice of 1/16th brick footprint or SIP package. Output trim, remote sense, negative or positive logic remote On-Off comes as standard features. Power good, frequency synchronization and output sequencing are optional features. It includes overcurrent protection. Application includes industrial, test, COMM, broadcast, robotics. Certified by IEC/UL/CSA/EN 62368-1, 60950-1.
