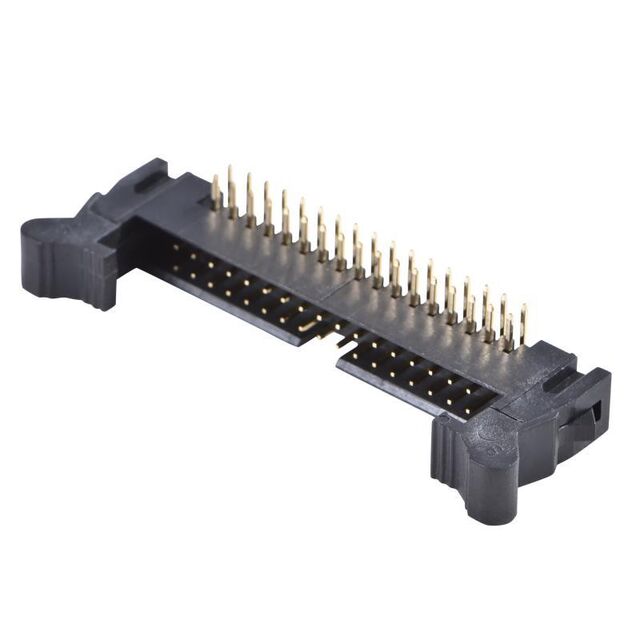

AWHW-200-30RT11

Active

Assmann WSW Components

DIN 41651 HEADER MALE THR 30PIN

Search across all available documentation for this part.

Active

Assmann WSW Components

DIN 41651 HEADER MALE THR 30PIN

Technical Specifications

Parameters and characteristics for this part

Specification	AWHW-200-30RT11

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Length - Mating	3.7 mm
Contact Length - Mating	0.146 in
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2 A
Fastening Type	Latch Lock/Eject Hooks, Short
Features	Keying Slot
Insulation Color	Black
Insulation Height	0.821 "
Insulation Height	20.85 mm
Insulation Material	Polyamide (PA9T), Nylon 9T, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	30
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

Part	Connector Type	Style	Insulation Color	Mounting Type	Contact Shape	Termination	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Contact Type	Features	Number of Positions	Current Rating (Amps)	Number of Positions Loaded	Number of Rows	Contact Length - Post	Contact Length - Post	Contact Material	Contact Finish - Mating	Contact Length - Mating	Contact Length - Mating	Row Spacing - Mating	Row Spacing - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Fastening Type	Shrouding	Pitch - Mating [x]	Pitch - Mating [x]
Assmann WSW Components AWHW-200-30RT11	Header	Board to Cable/Wire	Black	Through Hole	Square	Solder	UL94 V-0	-40 °C	105 ░C	Polyamide (PA9T) Nylon 9T Glass Filled	Male Pin	Keying Slot	30	2 A	All	2	0.118 in	3 mm	Brass	Gold	3.7 mm	0.146 in	0.079 in	2 mm	Flash	0.821 "	20.85 mm	Latch Lock/Eject Hooks Short	Shrouded - 4 Wall	0.079 in	2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1320	$ 1.59

General part information

Connector Header Through Hole 30 position 0.079" (2.00mm)
