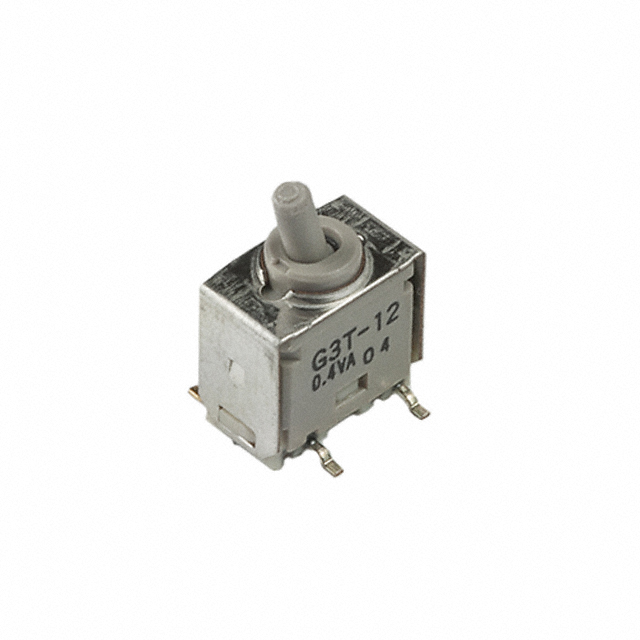

G3T12AP-S
ActiveNKK Switches
TOGGLE SWITCH, ULTRA MINIATURE, ON-NONE-ON, SPDT, NON ILLUMINATED, G3T SERIES, SURFACE MOUNT
Deep-Dive with AI
Search across all available documentation for this part.
G3T12AP-S
ActiveNKK Switches
TOGGLE SWITCH, ULTRA MINIATURE, ON-NONE-ON, SPDT, NON ILLUMINATED, G3T SERIES, SURFACE MOUNT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | G3T12AP-S |
|---|---|
| Actuator Length [x] | 3.81 mm |
| Actuator Material | Polyphenylene Sulfide (PPS) |
| Actuator Type | Standard Round |
| Bushing Thread | Unthreaded |
| Circuit | SPDT |
| Current Rating (Amps) | 0.4 VA |
| Electrical Life | 50000 Cycles |
| Features | Process Sealed |
| Illumination | Non-Illuminated |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Switch Function | On-On |
| Termination Style | Gull Wing |
| Voltage Rating - AC | 28 V |
| Voltage Rating - DC | 28 V |
G3T12A Series
| Part | Switch Function | Circuit | Mounting Type | Voltage Rating - AC | Illumination | Current Rating (Amps) | Actuator Type | Actuator Material | Electrical Life | Termination Style | Operating Temperature [Min] | Operating Temperature [Max] | Actuator Length [x] | Voltage Rating - DC | Features | Bushing Thread |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NKK Switches | On-On | SPDT | Surface Mount Right Angle | 28 V | Non-Illuminated | 0.4 VA | Standard Round | Polyphenylene Sulfide (PPS) | 50000 Cycles | Gull Wing | -30 ░C | 85 °C | 3.81 mm | 28 V | Process Sealed | Unthreaded |
NKK Switches | On-On | SPDT | Surface Mount | 28 V | Non-Illuminated | 0.4 VA | Standard Round | Polyphenylene Sulfide (PPS) | 50000 Cycles | Gull Wing | -30 ░C | 85 °C | 3.81 mm | 28 V | Process Sealed | Unthreaded |
NKK Switches | On-On | SPDT | Surface Mount Right Angle | 28 V | Non-Illuminated | 0.4 VA | Standard Round | Polyphenylene Sulfide (PPS) | 50000 Cycles | Gull Wing | -30 ░C | 85 °C | 3.81 mm | 28 V | Process Sealed | Unthreaded |
NKK Switches | On-On | SPDT | Surface Mount | 28 V | Non-Illuminated | 0.4 VA | Standard Round | Polyphenylene Sulfide (PPS) | 50000 Cycles | Gull Wing | -30 ░C | 85 °C | 3.81 mm | 28 V | Process Sealed | Unthreaded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
G3T12A Series
Toggle Switch SPDT Surface Mount
