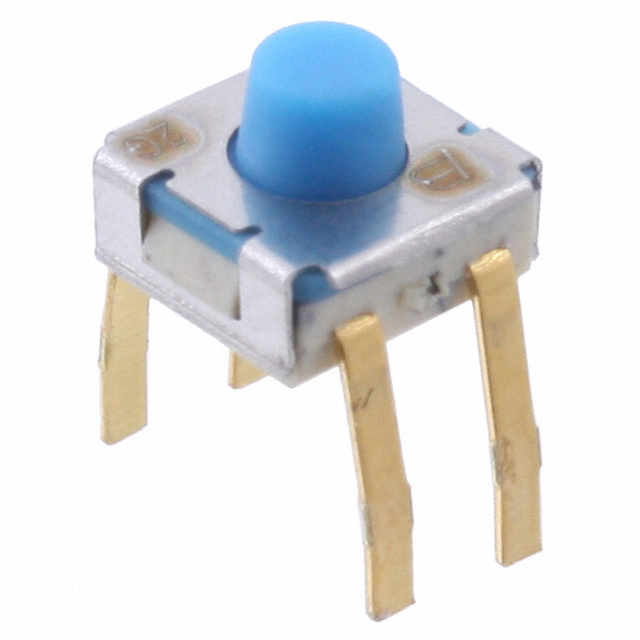

7914H-1-000

Active

Bourns Inc.

SWITCH TACTILE N.O. SPST ROUND BUTTON PC PINS 0.1A 16VAC 16VDC 100000CYCLES 2.94N THRU-HOLE TUBE

Search across all available documentation for this part.

Active

Bourns Inc.

SWITCH TACTILE N.O. SPST ROUND BUTTON PC PINS 0.1A 16VAC 16VDC 100000CYCLES 2.94N THRU-HOLE TUBE

Technical Specifications

Parameters and characteristics for this part

Specification	7914H-1-000

Actuator Height off PCB, Vertical	3.82 mm
Actuator Material	Silicone Rubber
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	16 VAC/DC, 0.1 A
Illumination	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	100000 Cycles
Mounting Type	Through Hole
Operating Force	300 gf
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Outline [x]	5 mm
Outline [y]	5 mm
Switch Function	Off-Mom
Termination Style	PC Pin

Part	Mechanical Life	Operating Force	Operating Temperature [Min]	Operating Temperature [Max]	Outline [x]	Outline [y]	Contact Rating @ Voltage	Illumination	Actuator Type	Switch Function	Actuator Material	Ingress Protection	Termination Style	Circuit	Mounting Type	Actuator Height off PCB, Vertical	Actuator Orientation
Bourns Inc. 7914H-1-000	100000 Cycles	300 gf	-55 °C	125 °C	5 mm	5 mm	0.1 A 16 VAC/DC	Non-Illuminated	Standard	Off-Mom	Silicone Rubber	IP67 - Dust Tight Waterproof	PC Pin	SPST-NO	Through Hole	3.82 mm	Top Actuated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Through Hole
