3SU18030AD002AB1

Active

Siemens

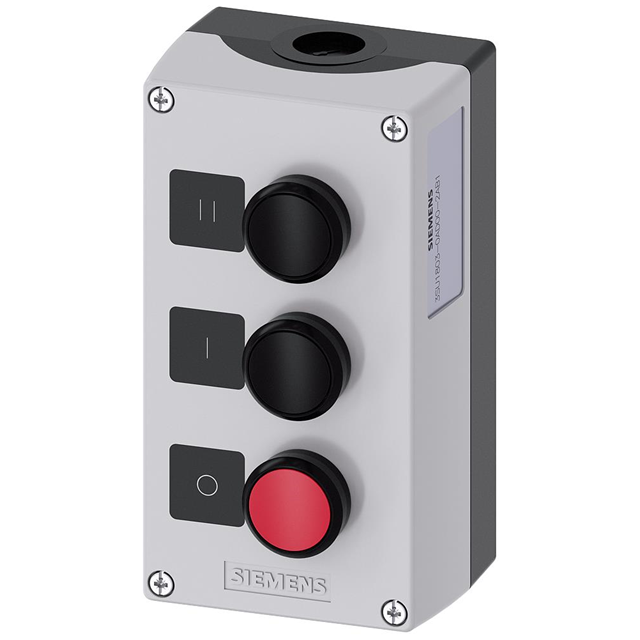

CONTROL SWITCHES ENC PLASTIC,3-PUSHBUTTONS, BLK, BLK, RED

Search across all available documentation for this part.

Active

Siemens

CONTROL SWITCHES ENC PLASTIC,3-PUSHBUTTONS, BLK, BLK, RED

Technical Specifications

Parameters and characteristics for this part

Specification	3SU18030AD002AB1

Actuator Type	Round, Button
Circuit	3PST-2NO/1NC
Color - Actuator/Cap	Black, Red
Current Rating (Amps)	10 A
Ingress Protection	IP69K, IP67, IP66
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	22.3 mm
Termination Style	Screw Terminal
Type	Standard
Voltage Rating - AC	500 V
Voltage Rating - DC	500 V

Part	Accessory Type	For Use With/Related Products	Color - Actuator/Cap	Voltage Rating - DC	Voltage Rating - AC	Panel Cutout Dimensions [diameter]	Type	Ingress Protection	Current Rating (Amps)	Termination Style	Actuator Type	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Circuit
Siemens 3SU18033AA000AA1	Operation Console	3SU1 Series
Siemens 3SU18030AT002AB1			Black Green Red	500 V	500 V	22.3 mm	Standard	IP66 IP67 IP69K	10 A	Screw Terminal	Button Round	Panel Mount Front	70 °C	-25 °C	6PST-3NO/3NC
Siemens 3SU18030AC002AB1			Black Clear White	24 V		22.3 mm	Standard	IP66 IP67 IP69K		Screw Terminal	Button Round	Panel Mount Front	70 °C	-25 °C	DPST-NO/NC
Siemens 3SU18030AD002AB1			Black Red	500 V	500 V	22.3 mm	Standard	IP66 IP67 IP69K	10 A	Screw Terminal	Button Round	Panel Mount Front	70 °C	-25 °C	3PST-2NO/1NC
Siemens 3SU18030AR002AB1			Black Green Red	500 V	500 V	22.3 mm	Standard	IP66 IP67 IP69K	10 A	Screw Terminal	Button Round	Panel Mount Front	70 °C	-25 °C	6PST-3NO/3NC
Siemens 3SU18030AA000AB1	Enclosure	3SU1 Series

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 226.69

General part information

Pushbutton Switch 3PST-2NO/1NC Standard Panel Mount, Front
