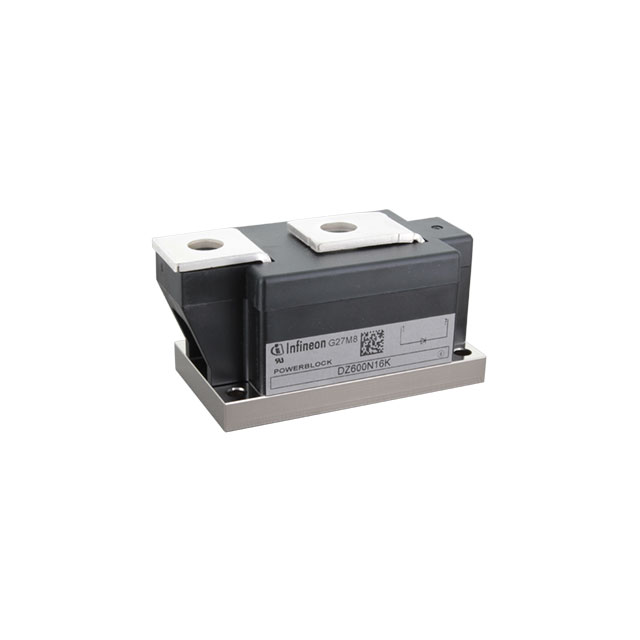

DZ600N16KHPSA1

Active

Infineon Technologies

1600 V, 600 A POWER BLOCK 50 MM SINGLE RECTIFIER DIODE MODULES

Search across all available documentation for this part.

Active

Infineon Technologies

1600 V, 600 A POWER BLOCK 50 MM SINGLE RECTIFIER DIODE MODULES

Technical Specifications

Parameters and characteristics for this part

Specification	DZ600N16KHPSA1

Current - Average Rectified (Io)	735 A
Current - Reverse Leakage @ Vr	40 mA
Mounting Type	Chassis Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-40 °C
Package / Case	Module
Speed	Standard Recovery >500ns
Speed	200 mA
Supplier Device Package	Module
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.4 V

Part	Current - Average Rectified (Io)	Speed	Speed	Technology	Supplier Device Package	Current - Reverse Leakage @ Vr	Package / Case	Voltage - Forward (Vf) (Max) @ If	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Mounting Type
Infineon Technologies DZ600N16KHPSA1	735 A	Standard Recovery >500ns	200 mA	Standard	Module	40 mA	Module	1.4 V	150 °C	-40 °C	Chassis Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 105.31
Digikey	Tray	1	$ 219.20
		12	$ 205.31
		27	$ 197.59
Newark	Each	1	$ 278.17

General part information

Single Rectifier Diode 50 mm Power Block 1600 V, 600 A module for phase control inpressure contact technologyusing an isolated copper base plate.

Technical documentation and resources
