1-929080-5

Active

TE Connectivity AMP Connectors

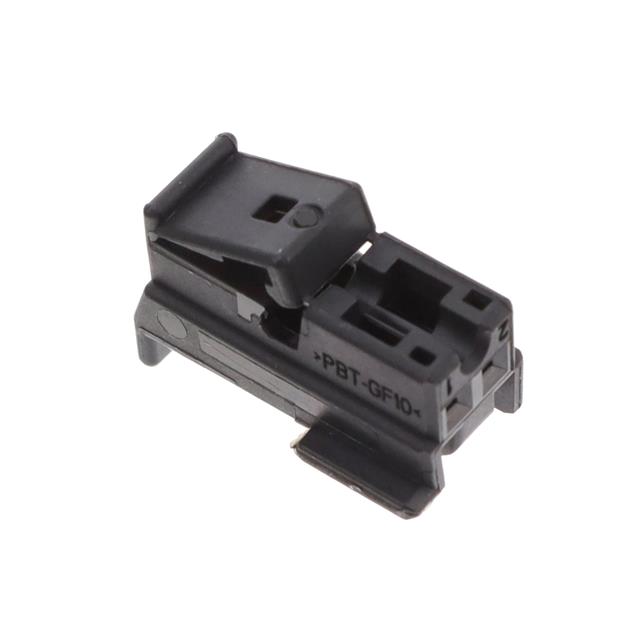

SOCKET HOUSING, 2 POSITION, MQ

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

SOCKET HOUSING, 2 POSITION, MQ

Technical Specifications

Parameters and characteristics for this part

Specification	1-929080-5

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Holder
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)
Number of Positions	2
Number of Rows	1
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in

SOCKET HOUSING, 2 POSITION, MQ

Part	Connector Type	Number of Positions	Pitch [x]	Pitch [x]	Insulation Material	Contact Type	Color	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Contact Termination	Fastening Type	Mounting Type
TE Connectivity AMP Connectors 1-929080-5	Receptacle	2	2.54 mm	0.1 in	Polybutylene Terephthalate (PBT), Glass Filled	Female Socket	Black	-40 °C	120 °C	1	Crimp	Latch Holder	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Rectangular Connectors - Housings Receptacle Black 0.100" (2.54mm)
