SML-LXR851SISGC-TR

Active

Lumex Opto/Components Inc.

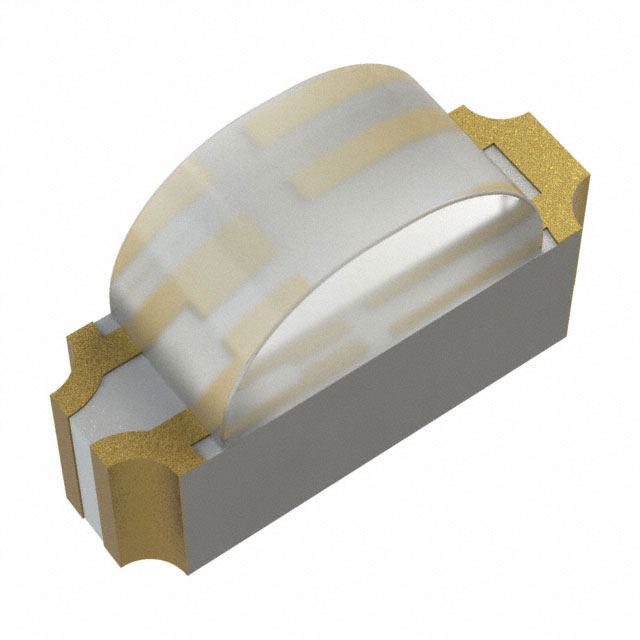

LED GREEN/RED CLEAR SMD R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SML-LXR851SISGC-TR

Active

Lumex Opto/Components Inc.

LED GREEN/RED CLEAR SMD R/A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.74
		10	$ 0.44
		100	$ 0.29
		500	$ 0.23
		1000	$ 0.21
	Digi-Reel®	1	$ 0.74
		10	$ 0.44
		100	$ 0.29
		500	$ 0.23
		1000	$ 0.21
	Tape & Reel (TR)	2000	$ 0.20
		4000	$ 0.19
		6000	$ 0.18
		10000	$ 0.17
		14000	$ 0.17
		20000	$ 0.17
		50000	$ 0.16

Description

General part information

SML-LXR851 Series

Green, Red LED Indication - Discrete 2.1V Green, 2V Red 2-SMD, No Lead

Documents

Technical documentation and resources

Datasheet

Specification	SML-LXR851SISGC-TR	SML-LXR851 Series

Color	Red, Green	Red, Green, Yellow, Blue
Configuration	Common Anode	Standard, Common Anode
Current - Test	20 mA, 20 mA	20 mA
Current - Test	-	20 mA
Current - Test	-	20 mA
Current - Test	-	20 mA
Height (Max) [Max] [z]	1 mm	1 - 2 mm
Lens Color	Colorless	Colorless, White
Lens Size [x]	2 mm	2 mm
Lens Size [y]	1 mm	1 mm
Lens Style	Rectangle with Domed Top	Rectangle with Domed Top, Rectangle with Flat Top
Lens Transparency	Clear	Clear, Diffused
Millicandela Rating	-	11 - 75 mcd
Millicandela Rating	-	70 mcd
Millicandela Rating [custom]	20 mcd	20 - 180 mcd
Millicandela Rating [custom]	50 mcd	50 - 90 mcd
Mounting Type	Surface Mount, Right Angle	Surface Mount, Right Angle, Surface Mount
Package / Case	2-SMD, No Lead	2-SMD, No Lead
Size / Dimension [x]	3 mm	3 mm
Size / Dimension [y]	2 mm	2 mm
Supplier Device Package	SMD	Surface Mount, Right Angle, 2-SMD, SMD
Viewing Angle	120 °	120 - 160 °
Voltage - Forward (Vf) (Typ)	2 V, 2.1 V	1.7 - 3.5 V
Wavelength - Dominant	-	574 - 590 nm
Wavelength - Peak	-	565 - 660 nm
Wavelength - Peak	-	470 nm
Wavelength - Peak [custom]	565 nm	525 - 574 nm
Wavelength - Peak [custom]	636 nm	636 nm

Part

Lens Size [x]

Lens Size [y]

Color

Lens Transparency

Lens Style

Height (Max) [Max] [z]

Package / Case

Supplier Device Package

Lens Color

Mounting Type

Viewing Angle

Voltage - Forward (Vf) (Typ)

Current - Test

Configuration

Size / Dimension [y]

Size / Dimension [x]

Millicandela Rating

Wavelength - Peak

Wavelength - Peak [custom]

Millicandela Rating [custom]

Wavelength - Dominant [custom]

Current - Test [custom]

Millicandela Rating [custom]

Wavelength - Peak [custom]

Lumex Opto/Components Inc.

SML-LXR851SRC-TR

2 mm

1 mm

Red

Clear

Rectangle with Domed Top

1 mm

2-SMD, No Lead

Surface Mount, Right Angle

Colorless

Surface Mount, Right Angle

160 °

1.7 V

20 mA

Standard

2 mm

3 mm

33 mcd

660 nm

Lumex Opto/Components Inc.

SML-LXR851SGSIC-TR

2 mm

1 mm

Green, Red

Clear

Rectangle with Domed Top

1 mm

2-SMD, No Lead

2-SMD

Colorless

Surface Mount, Right Angle

120 °

2 V, 2.2 V

20 mA, 20 mA

Common Anode

2 mm

3 mm

565 nm

636 nm

20 mcd

50 mcd

Lumex Opto/Components Inc.

SML-LXR851SGC-TR

2 mm

1 mm

Green

Clear

Rectangle with Domed Top

1 mm

2-SMD, No Lead

Surface Mount, Right Angle

Colorless

Surface Mount, Right Angle

120 °

2.1 V

20 mA

Standard

2 mm

3 mm

16 mcd

565 nm

Lumex Opto/Components Inc.

SML-LXR851SISGC-TR

2 mm

1 mm

Green, Red

Clear

Rectangle with Domed Top

1 mm

2-SMD, No Lead

SMD

Colorless

Surface Mount, Right Angle

120 °

2 V, 2.1 V

20 mA, 20 mA

Common Anode

2 mm

3 mm

565 nm

636 nm

20 mcd

50 mcd

Lumex Opto/Components Inc.

SML-LXR851GC-TR

2 mm

1 mm

Green

Clear

Rectangle with Domed Top

1 mm

2-SMD, No Lead

Surface Mount, Right Angle

Colorless

Surface Mount, Right Angle

160 °

2.2 V

20 mA

Standard

2 mm

3 mm

11 mcd

565 nm

Lumex Opto/Components Inc.

SML-LXR851SOC-TR

2 mm

1 mm

Clear

Rectangle with Domed Top

1 mm

2-SMD, No Lead

Surface Mount, Right Angle

Colorless

Surface Mount, Right Angle

160 °

2 V

20 mA

Standard

2 mm

3 mm

75 mcd

610 nm

Lumex Opto/Components Inc.

SML-LXR851SYSUGCTR

2 mm

1 mm

Green, Yellow

Clear

Rectangle with Flat Top

1 mm

2-SMD, No Lead

Surface Mount, Right Angle

Colorless

Surface Mount, Right Angle

120 °

20 mA

2 mm

3 mm

574 nm, 590 nm

Lumex Opto/Components Inc.

SML-LXR851SIC-TR

2 mm

1 mm

Red

Clear

Rectangle with Domed Top

1 mm

2-SMD, No Lead

Surface Mount, Right Angle

Colorless

Surface Mount, Right Angle

160 °

2 V

20 mA

Standard

2 mm

3 mm

70 mcd

636 nm

Lumex Opto/Components Inc.

SML-LXR851SUGC-TR

2 mm

1 mm

Green

Clear

Rectangle with Domed Top

1 mm

2-SMD, No Lead

Surface Mount, Right Angle

Colorless

Surface Mount, Right Angle

160 °

2.2 V

20 mA

Standard

2 mm

3 mm

45 mcd

Lumex Opto/Components Inc.

SML-LXR851USBC-TR

2 mm

1 mm

Blue

Clear

Rectangle with Domed Top

1 mm

2-SMD, No Lead

Surface Mount, Right Angle

Colorless

Surface Mount, Right Angle

160 °

3.5 V

20 mA

Standard

2 mm

3 mm

30 mcd

Part	Lens Size [x]	Lens Size [y]	Color	Lens Transparency	Lens Style	Height (Max) [Max] [z]	Package / Case	Supplier Device Package	Lens Color	Mounting Type	Viewing Angle	Voltage - Forward (Vf) (Typ)	Current - Test	Configuration	Size / Dimension [y]	Size / Dimension [x]	Millicandela Rating	Wavelength - Peak	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Wavelength - Dominant [custom]
Lumex Opto/Components Inc. SML-LXR851SRC-TR	2 mm	1 mm	Red	Clear	Rectangle with Domed Top	1 mm	2-SMD, No Lead	Surface Mount, Right Angle	Colorless	Surface Mount, Right Angle	160 °	1.7 V	20 mA	Standard	2 mm	3 mm	33 mcd	660 nm
Lumex Opto/Components Inc. SML-LXR851SGSIC-TR	2 mm	1 mm	Green, Red	Clear	Rectangle with Domed Top	1 mm	2-SMD, No Lead	2-SMD	Colorless	Surface Mount, Right Angle	120 °	2 V, 2.2 V	20 mA, 20 mA	Common Anode	2 mm	3 mm			565 nm	636 nm	20 mcd	50 mcd
Lumex Opto/Components Inc. SML-LXR851SGC-TR	2 mm	1 mm	Green	Clear	Rectangle with Domed Top	1 mm	2-SMD, No Lead	Surface Mount, Right Angle	Colorless	Surface Mount, Right Angle	120 °	2.1 V	20 mA	Standard	2 mm	3 mm	16 mcd	565 nm
Lumex Opto/Components Inc. SML-LXR851SISGC-TR	2 mm	1 mm	Green, Red	Clear	Rectangle with Domed Top	1 mm	2-SMD, No Lead	SMD	Colorless	Surface Mount, Right Angle	120 °	2 V, 2.1 V	20 mA, 20 mA	Common Anode	2 mm	3 mm			565 nm	636 nm	20 mcd	50 mcd
Lumex Opto/Components Inc. SML-LXR851GC-TR	2 mm	1 mm	Green	Clear	Rectangle with Domed Top	1 mm	2-SMD, No Lead	Surface Mount, Right Angle	Colorless	Surface Mount, Right Angle	160 °	2.2 V	20 mA	Standard	2 mm	3 mm	11 mcd	565 nm
Lumex Opto/Components Inc. SML-LXR851SOC-TR	2 mm	1 mm		Clear	Rectangle with Domed Top	1 mm	2-SMD, No Lead	Surface Mount, Right Angle	Colorless	Surface Mount, Right Angle	160 °	2 V	20 mA	Standard	2 mm	3 mm	75 mcd	610 nm
Lumex Opto/Components Inc. SML-LXR851SYSUGCTR	2 mm	1 mm	Green, Yellow	Clear	Rectangle with Flat Top	1 mm	2-SMD, No Lead	Surface Mount, Right Angle	Colorless	Surface Mount, Right Angle	120 °		20 mA		2 mm	3 mm							574 nm, 590 nm
Lumex Opto/Components Inc. SML-LXR851SIC-TR	2 mm	1 mm	Red	Clear	Rectangle with Domed Top	1 mm	2-SMD, No Lead	Surface Mount, Right Angle	Colorless	Surface Mount, Right Angle	160 °	2 V	20 mA	Standard	2 mm	3 mm	70 mcd	636 nm
Lumex Opto/Components Inc. SML-LXR851SUGC-TR	2 mm	1 mm	Green	Clear	Rectangle with Domed Top	1 mm	2-SMD, No Lead	Surface Mount, Right Angle	Colorless	Surface Mount, Right Angle	160 °	2.2 V	20 mA	Standard	2 mm	3 mm	45 mcd
Lumex Opto/Components Inc. SML-LXR851USBC-TR	2 mm	1 mm	Blue	Clear	Rectangle with Domed Top	1 mm	2-SMD, No Lead	Surface Mount, Right Angle	Colorless	Surface Mount, Right Angle	160 °	3.5 V	20 mA	Standard	2 mm	3 mm	30 mcd
