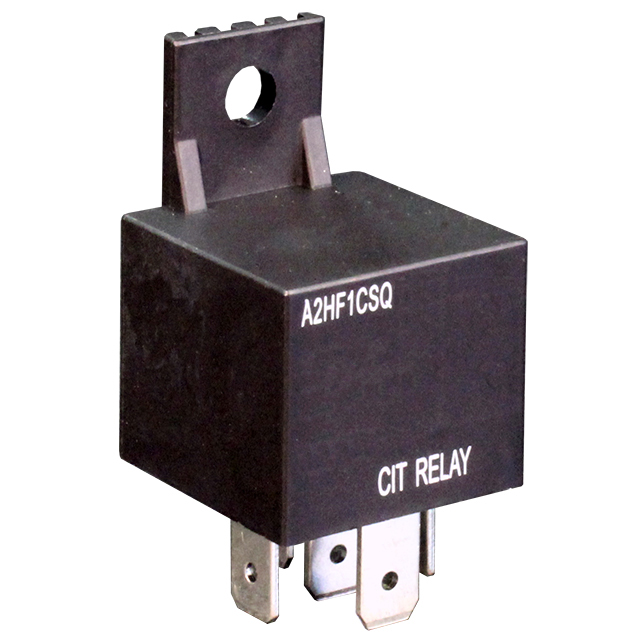

A2HF1CSQ24VDC1.6R

Active

CIT Relay and Switch

RELAY AUTOMOTIVE SPDT 50A 24V

Search across all available documentation for this part.

Active

CIT Relay and Switch

RELAY AUTOMOTIVE SPDT 50A 24V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RELAY AUTOMOTIVE SPDT 50A 24V

Technical documentation and resources

Parameters and characteristics commom to parts in this series

RELAY AUTOMOTIVE SPDT 50A 24V

Part	Coil Power	Contact Form	Coil Voltage	Features	Operating Temperature [Max]	Operating Temperature [Min]	Coil Resistance	Termination Style	Operate Time	Contact Rating (Current)	Release Time	Coil Current	Switching Voltage	Must Release Voltage	Coil Type	Contact Material	Mounting Type	Must Operate Voltage
CIT Relay and Switch A2HF1CSQ24VDC1.6R	1.6 W	SPDT (1 Form C)	24 VDC	Resistor, Sealed - Fully	125 °C	-40 °C	320 Ohms	Quick Connect - 0.250" (6.3mm)	10 ms	50 A	10 ms	75 mA	75 VDC	2.4 VDC	Non Latching	Silver Tin Oxide (AgSnO)	Chassis Mount
CIT Relay and Switch A2HF1CSQ24VDC1.6	1.6 W	SPDT (1 Form C)	24 VDC	Sealed - Fully	125 °C	-40 °C	360 Ohms	Quick Connect - 0.250" (6.3mm)	10 ms	50 A	10 ms	66.7 mA	75 VDC	2.4 VDC	Non Latching	Silver Tin Oxide (AgSnO)	Chassis Mount
CIT Relay and Switch A2HF1CSQ12VDC1.6	1.6 W	SPDT (1 Form C)	12 VDC	Sealed - Fully	125 °C	-40 °C	90 Ohms	Quick Connect - 0.250" (6.3mm)	10 ms	50 A	10 ms	133.3 mA	75 VDC	1.2 VDC	Non Latching	Silver Tin Oxide (AgSnO)	Chassis Mount	7.8 VDC
CIT Relay and Switch A2HF1CSQ12VDC1.6R	1.6 W	SPDT (1 Form C)	12 VDC	Resistor, Sealed - Fully	125 °C	-40 °C	80 Ohms	Quick Connect - 0.250" (6.3mm)	10 ms	50 A	10 ms	150 mA	75 VDC	1.2 VDC	Non Latching	Silver Tin Oxide (AgSnO)	Chassis Mount	7.8 VDC
