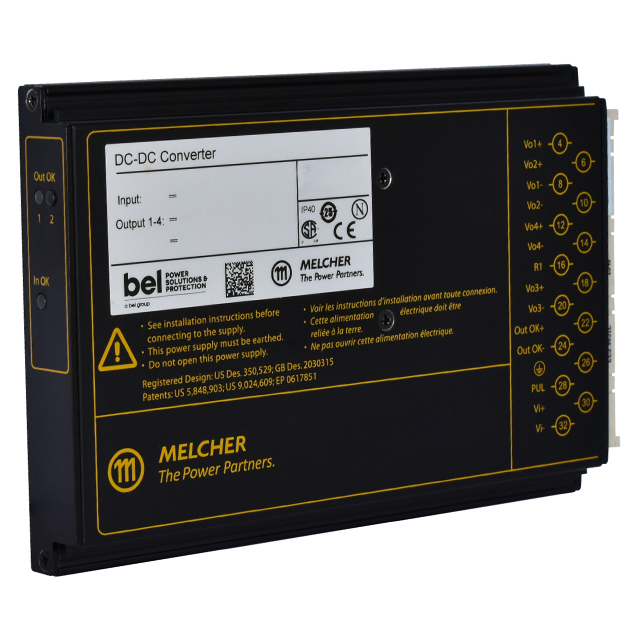

HP3040-9RG

Active

Bel Power Solutions

DC/DC CONVERTER 5.1V 2X15V 187W

Search across all available documentation for this part.

Active

Bel Power Solutions

DC/DC CONVERTER 5.1V 2X15V 187W

Technical Specifications

Parameters and characteristics for this part

DC/DC CONVERTER 5.1V 2X15V 187W

Part	Power (Watts)	Voltage - Input (Min) [Min]	Number of Outputs	Efficiency	Voltage - Input (Max) [Max]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Applications	Current - Output (Max)	Type	Voltage - Output 2	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 3	Approval Agency	Voltage - Output 1
Bel Power Solutions HP3040-9RG	187 W	12.5 V	3	90 %	154 V	6.47 in	20.32 mm	0.8 "	111 mm	4.37 "	164 mm	Chassis Mount	ITE (Commercial), Railway	3.2 A, 17.8 A	Conformal Coated, Enclosed	15 V	71 °C	-40 °C	15 V	cCSAus, CE, NEMKO	5.1 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed, Conformal Coated DC DC Converter 3 Output 5.1V 15V 15V 17.8A, 3.2A, 3.2A 154V Input

Technical documentation and resources

No documents available
