SO63-1-55-22-90

Active

TE Connectivity Aerospace, Defense and Marine

SLDR SLV WIRE-WIRE 0.075/0.105"

Search across all available documentation for this part.

Active

TE Connectivity Aerospace, Defense and Marine

SLDR SLV WIRE-WIRE 0.075/0.105"

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

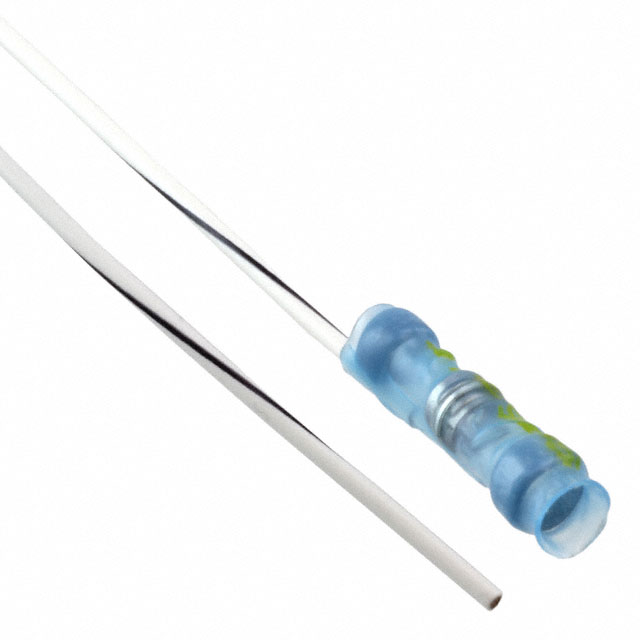

Wire to Wire Solder Sleeve Transparent - Blue 0.075" (1.91mm), 0.105" (2.67mm)

Technical documentation and resources

Specification	SO63-1-55-22-90	SO63 Series

Color	Transparent - Blue	Transparent - Blue
Diameter	2.67 mm, 1.91 mm	0.17 - 2.67 in
Diameter	0.075 in, 0.105 in	0.075 - 5.08 mm
Diameter	-	0.105 - 0.145 in
Diameter	-	2.67 - 3.68 mm
Features	Immersion Resistant, Pre-Installed Lead Wire	Immersion Resistant, Pre-Installed Lead Wire, Pre-Installed Braid
Length	16.51 mm	16.51 mm
Length	0.65 "	0.65 "
Type	Wire to Wire	Wire to Wire

Part	Diameter	Diameter	Color	Length	Length	Type	Features	Diameter [diameter]	Diameter [diameter]
TE Connectivity Aerospace, Defense and Marine SO63-3-55-26-90	4.32 mm, 5.08 mm	0.17 in, 0.2 in	Transparent - Blue	16.51 mm	0.65 "	Wire to Wire	Immersion Resistant, Pre-Installed Lead Wire
TE Connectivity Aerospace, Defense and Marine SO63-3-00	4.32 mm, 5.08 mm	0.17 in, 0.2 in	Transparent - Blue	16.51 mm	0.65 "	Wire to Wire	Immersion Resistant
TE Connectivity Aerospace, Defense and Marine SO63-1-55-22-90	0.075 in, 0.105 in	1.91 mm, 2.67 mm	Transparent - Blue	16.51 mm	0.65 "	Wire to Wire	Immersion Resistant, Pre-Installed Lead Wire
TE Connectivity Aerospace, Defense and Marine SO63-3-9030	4.32 mm, 5.08 mm	0.17 in, 0.2 in	Transparent - Blue	16.51 mm	0.65 "	Wire to Wire	Immersion Resistant, Pre-Installed Braid
TE Connectivity Aerospace, Defense and Marine SO63-1-55-20-90	0.075 in, 0.105 in	1.91 mm, 2.67 mm	Transparent - Blue	16.51 mm	0.65 "	Wire to Wire	Immersion Resistant, Pre-Installed Lead Wire
TE Connectivity Aerospace, Defense and Marine SO63-2-00			Transparent - Blue	16.51 mm	0.65 "	Wire to Wire	Immersion Resistant	0.105 ", 0.145 in	2.67 mm, 3.68 mm
TE Connectivity Aerospace, Defense and Marine SO63-2-9030			Transparent - Blue	16.51 mm	0.65 "	Wire to Wire	Immersion Resistant, Pre-Installed Braid	0.105 ", 0.145 in	2.67 mm, 3.68 mm
