MS3106R14S-2P
ActiveAmphenol Industrial Operations
MIL-5015 MS/AC THREADED PLUG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MS3106R14S-2P
ActiveAmphenol Industrial Operations
MIL-5015 MS/AC THREADED PLUG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MS3106R14S-2P | MS3106R14 Series |
|---|---|---|
| - | - | |
| Applications | Military, Marine | Military, Marine |
| Color | Olive Drab | Olive Drab |
| Connector Type | Plug, Male Pins | Female Sockets, Plug, Male Pins |
| Contact Finish - Mating | Silver | Silver |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 13 A | 13 A |
| Features | - | Coupling Nut, Cable Clamp, Backshell |
| Grade | Military | Military |
| Ingress Protection | Environment Resistant | Environment Resistant |
| Insert Material | Neoprene | Neoprene |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 4 | 4 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | N | N |
| Primary Material | Metal | Metal |
| Qualification | MIL-DTL-5015 | MIL-DTL-5015 |
| Shell Finish | Olive Drab Chromate over Cadmium | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum Alloy | Aluminum Alloy |
| Shell Size - Insert | 14S-2 | 14S-2, 14S-5 |
| Shielding | Unshielded | Unshielded |
| Voltage Rating | 250 VDC, 200 VAC | 200 - 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 94.93 | |
| 10 | $ 87.11 | |||
| 25 | $ 83.76 | |||
| 50 | $ 80.97 | |||
| 100 | $ 76.50 | |||
MS3106R14 Series
PLUG
| Part | Color | Insert Material | Shell Material | Contact Material | Orientation | Operating Temperature [Min] | Operating Temperature [Max] | Shell Finish | Applications | Mounting Type | Grade | Connector Type | Number of Positions | Features | Contact Finish - Mating | Ingress Protection | Shielding | Shell Size - Insert | Primary Material | Qualification | Current Rating (Amps) | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations MS3106R14S-7P | ||||||||||||||||||||||
Amphenol Industrial Operations MS3106R14S-9S | ||||||||||||||||||||||
Amphenol Industrial Operations MS3106R14S-13P | ||||||||||||||||||||||
Amphenol Industrial Operations MS3106R14S-2S | Olive Drab | Neoprene | Aluminum Alloy | Copper Alloy | N | -55 °C | 125 °C | Olive Drab Chromate over Cadmium | Marine, Military | Free Hanging (In-Line) | Military | Female Sockets, Plug | 4 | Cable Clamp, Coupling Nut | Silver | Environment Resistant | Unshielded | 14S-2 | Metal | MIL-DTL-5015 | ||
Amphenol Industrial Operations MS3106R14S-2P | Olive Drab | Neoprene | Aluminum Alloy | Copper Alloy | N | -55 °C | 125 °C | Olive Drab Chromate over Cadmium | Marine, Military | Free Hanging (In-Line) | Military | Male Pins, Plug | 4 | Silver | Environment Resistant | Unshielded | 14S-2 | Metal | MIL-DTL-5015 | 13 A | 200 VAC, 250 VDC | |
Amphenol Industrial Operations MS3106R14S-13S | ||||||||||||||||||||||
Amphenol Industrial Operations MS3106R14-3S | ||||||||||||||||||||||
Amphenol Industrial Operations MS3106R14S-12S | ||||||||||||||||||||||
Amphenol Industrial Operations MS3106R14S-9P | ||||||||||||||||||||||
Amphenol Industrial Operations MS3106R14S-12P |
Description
General part information
MS3106R14 Series

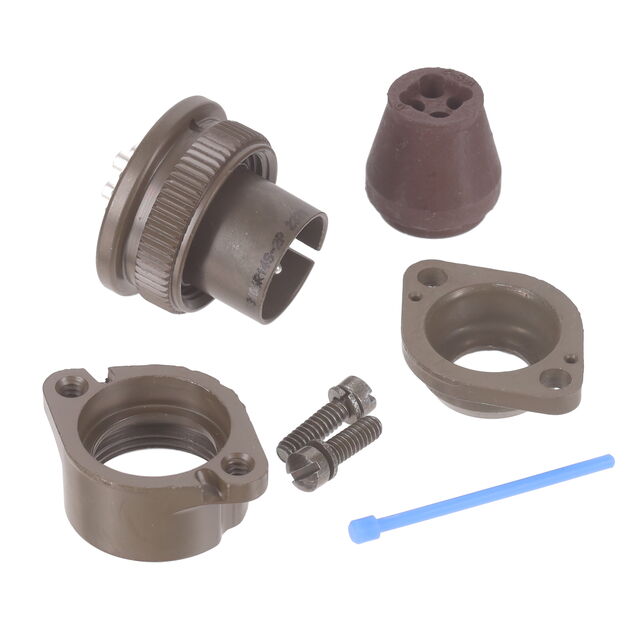

4 Position Circular Connector Plug, Male Pins Solder Cup
