E2PBXSS

Active

Hoffman Enclosures, Inc.

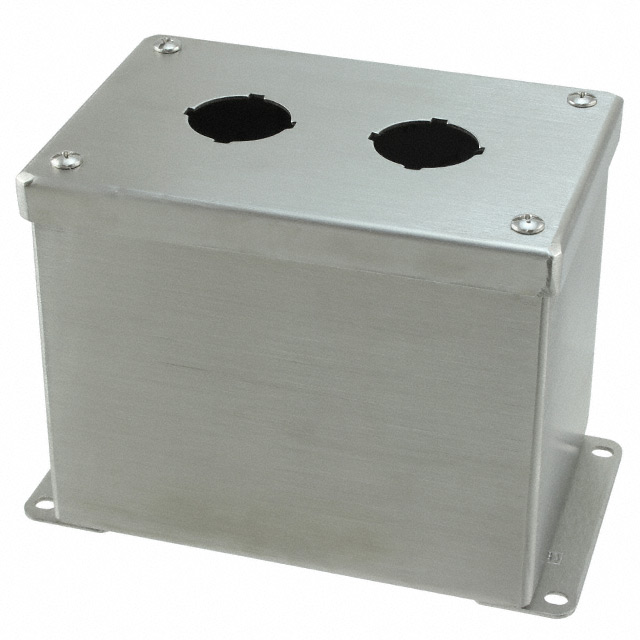

BOX S STL NAT 5.98"L X 4.02"W

Search across all available documentation for this part.

Active

Hoffman Enclosures, Inc.

BOX S STL NAT 5.98"L X 4.02"W

Technical Specifications

Parameters and characteristics for this part

Specification	E2PBXSS

Area (L x W) [custom]	155 cm²
Area (L x W) [custom]	24 in²
Color	Natural
Container Type	Box
Design	Cover Included
Features	Pushbutton Holes - 2, Mounting Flange
Height [z]	121 mm
Height [z]	4.764 in
Ratings	NEMA 12, IP66, NEMA 4, UL-508A, NEMA 13, NEMA 4X
Size / Dimension [x]	5.984 in
Size / Dimension [x]	152 mm
Size / Dimension [y]	4.016 in
Size / Dimension [y]	102 mm
Thickness	14 Gauge
Weight	1.5 kg
Weight	3.3 lbs

Part	Ratings	Color	Height [z]	Height [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Container Type	Weight	Weight	Design	Features	Thickness	Material	Area (L x W)	Area (L x W)	Area (L x W) [custom]	Area (L x W) [custom]
Hoffman Enclosures, Inc. E2PBG	IP65 NEMA 12 NEMA 13 UL-508A	Gray	70 mm	2.756 "	83 mm	5.748 in	3.268 in	146 mm	Box	861.8 g	1.9 lbs	Cover Included	Mounting Flange Pushbutton Holes - 2	16 Gauge	Metal Steel	18.7 in²	121 cm²
Hoffman Enclosures, Inc. E2PBXSS	IP66 NEMA 12 NEMA 13 NEMA 4 NEMA 4X UL-508A	Natural	121 mm	4.764 in	102 mm	5.984 in	4.016 in	152 mm	Box	1.5 kg	3.3 lbs	Cover Included	Mounting Flange Pushbutton Holes - 2	14 Gauge				155 cm²	24 in²
Hoffman Enclosures, Inc. E2PBX	IP65 NEMA 12 NEMA 13 UL-508A	Gray	121 mm	4.764 in	102 mm	5.984 in	4.016 in	152 mm	Box	1.6 kg	3.6 lbs	Cover Included	Mounting Flange Pushbutton Holes - 2	14 Gauge	Metal Steel			155 cm²	24 in²

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box Metal, Stainless Steel Natural Cover Included 5.984" L x 4.016" W (152.00mm x 102.00mm) X 4.764" (121.00mm)
