TA2-1G-DC-6-O

Active

Switch Components

SWITCH TOGGLE SPDT 20A 125V

Search across all available documentation for this part.

Active

Switch Components

SWITCH TOGGLE SPDT 20A 125V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

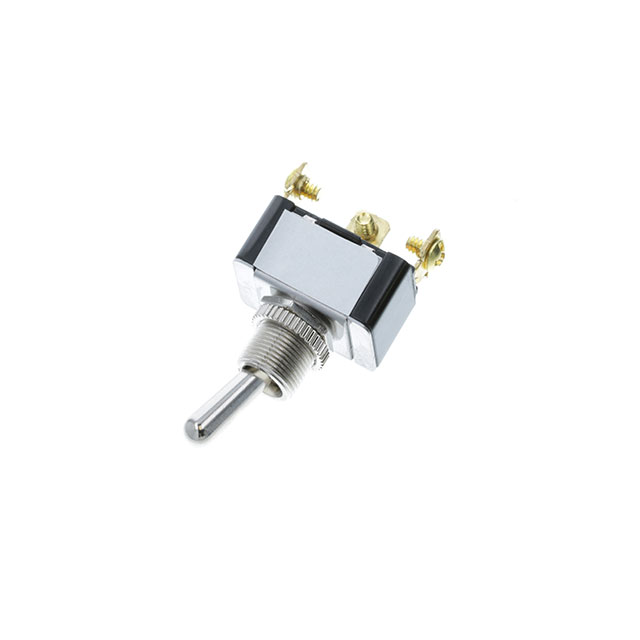

Toggle Switch SPDT Panel Mount

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	TA2-1G-DC-6-O	TA2-1G Series

Actuator Length [x]	16.5 mm	16.5 mm
Actuator Type	Standard Round	Standard Round
Bushing Thread	15/32-32	15/32-32
Circuit	SPDT	SPDT
Current Rating (Amps)	21 A, 20 A	12 - 21 A
Electrical Life	6000 Cycles	6000 Cycles
Illumination	Non-Illuminated	Non-Illuminated
Ingress Protection	IP55 - Dust Protected, Water Resistant	IP55 - Dust Protected, Water Resistant
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-20 C	-20 C
Panel Cutout Dimensions [diameter]	12 mm	12 - 12.2 mm
Switch Function	Mom-Off-Mom	Mom-Off-Mom
Termination Style	Screw Terminal	Screw Terminal, Quick Connect - 0.250" (6.3mm), Solder Lug
Voltage Rating - AC	125 V	125 - 250 V
Voltage Rating - DC	14 V	14 V

VAC SPDT (ON)-OFF-(ON), 15/32

Part	Panel Cutout Dimensions [diameter]	Current Rating (Amps)	Circuit	Termination Style	Actuator Type	Bushing Thread	Illumination	Switch Function	Voltage Rating - AC	Actuator Length [x]	Ingress Protection	Electrical Life	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]
Switch Components TA2-1G-AC-6	12.2 mm	12 A	SPDT	Screw Terminal	Standard Round	15/32-32	Non-Illuminated	Mom-Off-Mom	250 V	16.5 mm
Switch Components TA2-1G-AC-1-O	12.2 mm	12 A	SPDT	Quick Connect - 0.250" (6.3mm)	Standard Round	15/32-32	Non-Illuminated	Mom-Off-Mom	250 V	16.5 mm	IP55 - Dust Protected, Water Resistant
Switch Components TA2-1G-DC-5	12 mm	20 A, 21 A	SPDT	Solder Lug	Standard Round	15/32-32	Non-Illuminated	Mom-Off-Mom	125 V	16.5 mm		6000 Cycles	14 V	85 °C	-20 C
Switch Components TA2-1G-DC-6	12 mm	20 A, 21 A	SPDT	Screw Terminal	Standard Round	15/32-32	Non-Illuminated	Mom-Off-Mom	125 V	16.5 mm		6000 Cycles	14 V	85 °C	-20 C
Switch Components TA2-1G-AC-1	12.2 mm	12 A	SPDT	Quick Connect - 0.250" (6.3mm)	Standard Round	15/32-32	Non-Illuminated	Mom-Off-Mom	250 V	16.5 mm
Switch Components TA2-1G-DC-1-O	12 mm	20 A, 21 A	SPDT	Quick Connect - 0.250" (6.3mm)	Standard Round	15/32-32	Non-Illuminated	Mom-Off-Mom	125 V	16.5 mm	IP55 - Dust Protected, Water Resistant	6000 Cycles	14 V	85 °C	-20 C
Switch Components TA2-1G-DC-6-O	12 mm	20 A, 21 A	SPDT	Screw Terminal	Standard Round	15/32-32	Non-Illuminated	Mom-Off-Mom	125 V	16.5 mm	IP55 - Dust Protected, Water Resistant	6000 Cycles	14 V	85 °C	-20 C
