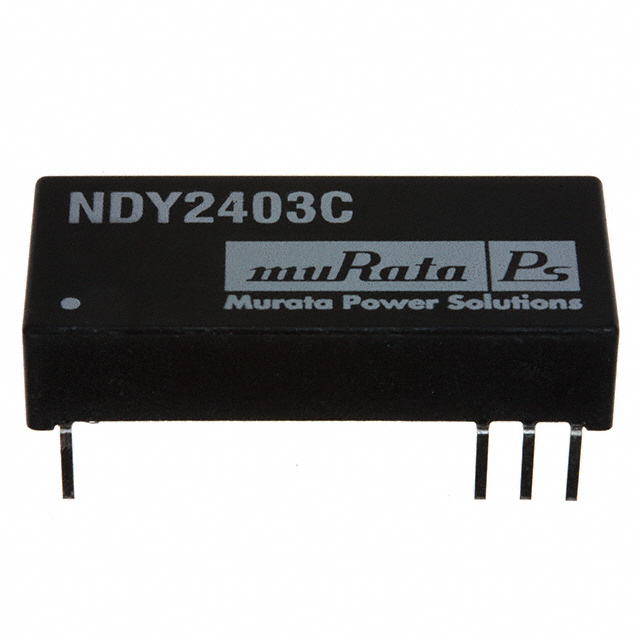

NDY2403C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 3.3V 3W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NDY2403C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 3.3V 3W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | NDY2403C | NDY24 Series |
|---|---|---|
| Applications | ITE (Commercial) | ITE (Commercial) |
| Current - Output (Max) [Max] | 909 mA | 250 - 909 mA |
| Efficiency | 70 % | 70 - 80 % |
| Mounting Type | Through Hole | Through Hole |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 24-DIP Module, 8 Leads | 24-DIP Module, 8 Leads |
| Power (Watts) | 3 W | 3 W |
| Size / Dimension [x] | 1.27 in | 1.27 in |
| Size / Dimension [x] | 32.3 mm | 32.3 mm |
| Size / Dimension [y] | 0.58 " | 0.58 " |
| Size / Dimension [y] | 14.7 mm | 14.7 mm |
| Size / Dimension [z] | 6.9 mm | 6.9 mm |
| Size / Dimension [z] | 0.27 " | 0.27 " |
| Type | Isolated Module | Isolated Module |
| Voltage - Input (Max) [Max] | 36 V | 36 V |
| Voltage - Input (Min) [Min] | 18 V | 18 V |
| Voltage - Isolation | 1000 V | 1000 V |
| Voltage - Output 1 | 3.3 V | 3.3 - 12 V |
NDY24 Series
DC DC CONVERTER 3.3V 3W
| Part | Number of Outputs | Voltage - Isolation | Applications | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Type | Efficiency | Package / Case | Power (Watts) | Mounting Type | Voltage - Output 1 | Operating Temperature [Max] | Operating Temperature [Min] | Current - Output (Max) [Max] | Voltage - Input (Min) [Min] | Voltage - Input (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. NDY2403C | 1 | 1000 V | ITE (Commercial) | 6.9 mm | 0.27 " | 0.58 " | 14.7 mm | 1.27 in | 32.3 mm | Isolated Module | 70 % | 24-DIP Module, 8 Leads | 3 W | Through Hole | 3.3 V | 85 °C | -40 °C | 909 mA | 18 V | 36 V |
Murata Power Solutions Inc. NDY2412C | 1 | 1000 V | ITE (Commercial) | 6.9 mm | 0.27 " | 0.58 " | 14.7 mm | 1.27 in | 32.3 mm | Isolated Module | 80 % | 24-DIP Module, 8 Leads | 3 W | Through Hole | 12 V | 85 °C | -40 °C | 250 mA | 18 V | 36 V |
Murata Power Solutions Inc. NDY2409C | 1 | 1000 V | ITE (Commercial) | 6.9 mm | 0.27 " | 0.58 " | 14.7 mm | 1.27 in | 32.3 mm | Isolated Module | 78 % | 24-DIP Module, 8 Leads | 3 W | Through Hole | 9 V | 85 °C | -40 °C | 333 mA | 18 V | 36 V |
Murata Power Solutions Inc. NDY2405C | 1 | 1000 V | ITE (Commercial) | 6.9 mm | 0.27 " | 0.58 " | 14.7 mm | 1.27 in | 32.3 mm | Isolated Module | 70 % | 24-DIP Module, 8 Leads | 3 W | Through Hole | 5 V | 85 °C | -40 °C | 600 mA | 18 V | 36 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
NDY24 Series
Isolated Module DC DC Converter 1 Output 3.3V 909mA 18V - 36V Input
