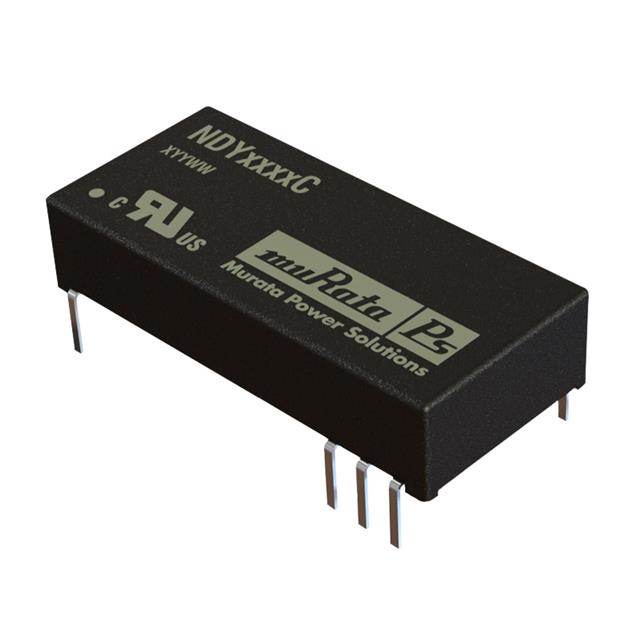

NDY2409C

Active

Murata Power Solutions Inc.

DC DC CONVERTER 9V 3W

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

DC DC CONVERTER 9V 3W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 1 Output 9V 333mA 18V - 36V Input

Technical documentation and resources

Parameters and characteristics commom to parts in this series

DC DC CONVERTER 3.3V 3W

Part	Number of Outputs	Voltage - Isolation	Applications	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Type	Efficiency	Package / Case	Power (Watts)	Mounting Type	Voltage - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]
Murata Power Solutions Inc. NDY2403C	1	1000 V	ITE (Commercial)	6.9 mm	0.27 "	0.58 "	14.7 mm	1.27 in	32.3 mm	Isolated Module	70 %	24-DIP Module, 8 Leads	3 W	Through Hole	3.3 V	85 °C	-40 °C	909 mA	18 V	36 V
Murata Power Solutions Inc. NDY2412C	1	1000 V	ITE (Commercial)	6.9 mm	0.27 "	0.58 "	14.7 mm	1.27 in	32.3 mm	Isolated Module	80 %	24-DIP Module, 8 Leads	3 W	Through Hole	12 V	85 °C	-40 °C	250 mA	18 V	36 V
Murata Power Solutions Inc. NDY2409C	1	1000 V	ITE (Commercial)	6.9 mm	0.27 "	0.58 "	14.7 mm	1.27 in	32.3 mm	Isolated Module	78 %	24-DIP Module, 8 Leads	3 W	Through Hole	9 V	85 °C	-40 °C	333 mA	18 V	36 V
Murata Power Solutions Inc. NDY2405C	1	1000 V	ITE (Commercial)	6.9 mm	0.27 "	0.58 "	14.7 mm	1.27 in	32.3 mm	Isolated Module	70 %	24-DIP Module, 8 Leads	3 W	Through Hole	5 V	85 °C	-40 °C	600 mA	18 V	36 V
