Q-2P00Q0003084I
ActiveAmphenol Custom Cable

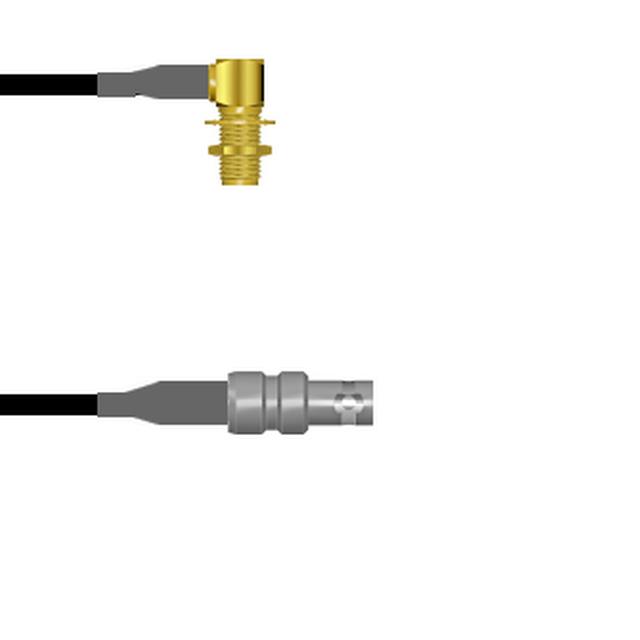

COAX CBL HD-BNC TO SMA 7'
Deep-Dive with AI
Search across all available documentation for this part.
Q-2P00Q0003084I
ActiveAmphenol Custom Cable
COAX CBL HD-BNC TO SMA 7'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-2P00Q0003084I |
|---|---|
| 1st Connector | HD-BNC Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | SMA Jack, Right Angle |
| 2nd Connector Mounting Feature | Bulkhead - Front Side Nut |
| 2nd Connector Mounting Type | Panel Mount |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | RG-174 |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Features | Shielded |
| Frequency - Max [Max] | 1 GHz |
| Length | 84 in |
| Length | 2.1 m |
| Length | 7 ft |
| Overall Impedance | 50 Ohms |
| Style | HD-BNC to SMA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 203.23 | |
| 25 | $ 199.28 | |||
| 50 | $ 195.33 | |||
| 100 | $ 191.38 | |||
| 250 | $ 187.43 | |||
Description
General part information
Q-2P00Q0 Series
Cable Assembly Coaxial HD-BNC to SMA RG-174 84.0" (2.1m) 7.0'
Documents
Technical documentation and resources
No documents available
