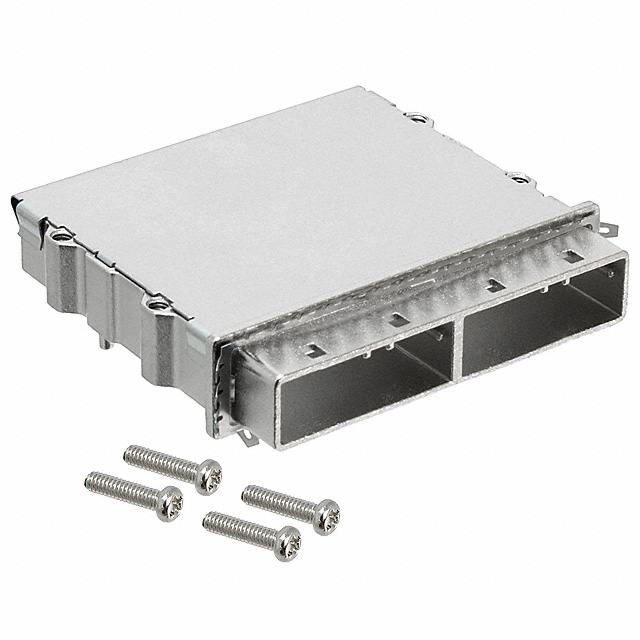

FS1-S02-1D66E1
ObsoleteAmphenol ICC (Commercial Products)
CONN MIN SAS CAGE 1X2 SLD RA SMD
FS1-S02-1D66E1
ObsoleteAmphenol ICC (Commercial Products)
CONN MIN SAS CAGE 1X2 SLD RA SMD
Description
General part information
FS1-S02 Series
Position SAS, Mini Cage, Ganged (1 x 2) Connector Solder Surface Mount, Right Angle
Technical Specifications
Parameters and characteristics for this part
| Specification | FS1-S02-1D66E1 |
|---|---|
| Connector Pin Configuration (Columns) | 2 pins |
| Connector Pin Configuration (Rows) | 1 pins |
| Connector Style | Ganged, Cage |
| Connector Type | SAS, Mini |
| Features | Board Guide, EMI Shielded |
| Mounting Type | Right Angle, Surface Mount |
| Termination | Solder |
