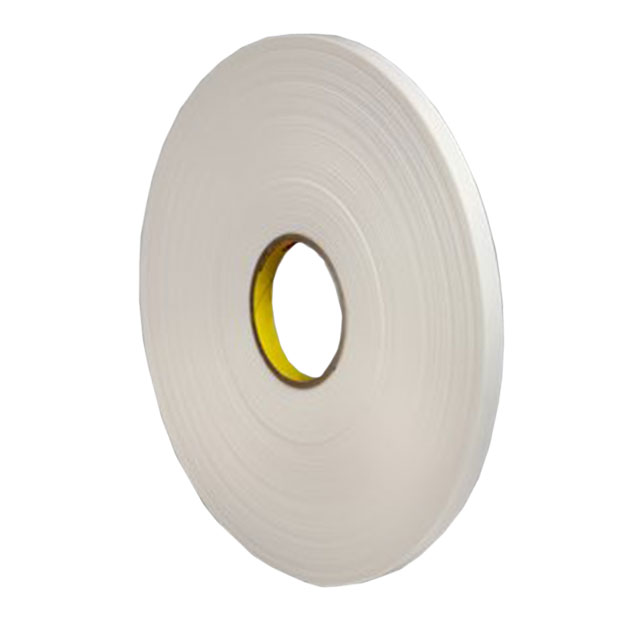

4116-3/4"X36YD

Active

3M (TC)

TAPE SINGLE COAT NATU 3/4"X36YD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 4(1,3,5,7)00 Series Datasheet

4116-3/4"X36YD

Active

3M (TC)

TAPE SINGLE COAT NATU 3/4"X36YD

Deep-Dive with AI

DocumentsDatasheet 4(1,3,5,7)00 Series Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	4116-3/4"X36YD

Adhesive	Acrylic, 350
Backing, Carrier	Polyurethane Foam
Color	Natural
Length	36 yd
Length	32.9 m
Length	108 ft
Shelf Life	24 Months
Shelf Life Start	Date of Manufacture
Tape Type	Single Coated Foam
Temperature Range	93 °C
Temperature Range	200 °F
Thickness	0.0625 in
Thickness	62.5 mils
Thickness	0.0625 "
Thickness	1.588 mm
Usage	Holding, Mounting, Joining
Width	0.75 in
Width	19.05 mm
Width	0.75 in

4116 Series

Part	Tape Type	Length	Length	Length	Usage	Backing, Carrier	Thickness	Thickness	Thickness	Thickness	Temperature Range	Temperature Range	Adhesive	Width	Width	Width	Shelf Life	Color	Shelf Life Start	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Width [y]	Width [y]	Width [x]	Width [x]
3M (TC) 4116-1/4"X36YD	Single Coated Foam	36 yd	32.9 m	108 ft	Holding Joining Mounting	Polyurethane Foam	0.063 "	63 mils	1.6 mm	0.0625 "	200 °F	93 °C	Acrylic 350	0.25 in	0.25 in	6.35 mm	24 Months	Natural	Date of Manufacture	16 °C 60 °F	27 °C 80 °F
3M (TC) 4116-2"X36YD NAT	Single Coated Foam	36 yd	32.9 m	108 ft	Holding Joining Mounting	Polyurethane Foam	0.0625 in	62.5 mils	1.588 mm	0.0625 "	200 °F	93 °C	Acrylic 350				24 Months	Natural	Date of Manufacture			2 "	50.8 mm
3M (TC) 4116-1"X36YD	Single Coated Foam	36 yd	32.9 m	108 ft	Holding Joining Mounting	Polyurethane Foam	0.0625 in	62.5 mils	1.588 mm	0.0625 "	200 °F	93 °C	Acrylic 350				24 Months	Natural	Date of Manufacture					25.4 mm	1 in
3M (TC) 4116-2"X6"	Single Coated Foam		152.4 mm	6 in	Sealing	Urethane	0.062 in	62 mils	1.575 mm				Acrylic				24 Months	Natural	Date of Manufacture	16 °C 60 °F	27 °C 80 °F	2 "	50.8 mm
3M (TC) 4116-3/4"X36YD	Single Coated Foam	36 yd	32.9 m	108 ft	Holding Joining Mounting	Polyurethane Foam	0.0625 in	62.5 mils	1.588 mm	0.0625 "	200 °F	93 °C	Acrylic 350	19.05 mm	0.75 in	0.75 in	24 Months	Natural	Date of Manufacture
3M (TC) 4116-1/2"X36YD	Single Coated Foam	36 yd	32.9 m	108 ft	Holding Joining Mounting	Polyurethane Foam	0.0625 in	62.5 mils	1.588 mm	0.0625 "	200 °F	93 °C	Acrylic 350	0.5 in	0.5 in	12.7 mm	24 Months	Natural	Date of Manufacture

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 97.83
		12	$ 91.72
		36	$ 85.60
		60	$ 81.32

Description

General part information

4116 Series

Single Coated Foam Tape Acrylic, 350 Adhesive Natural 0.75" (19.05mm) 3/4" X 108' (32.9m) 36 yds
