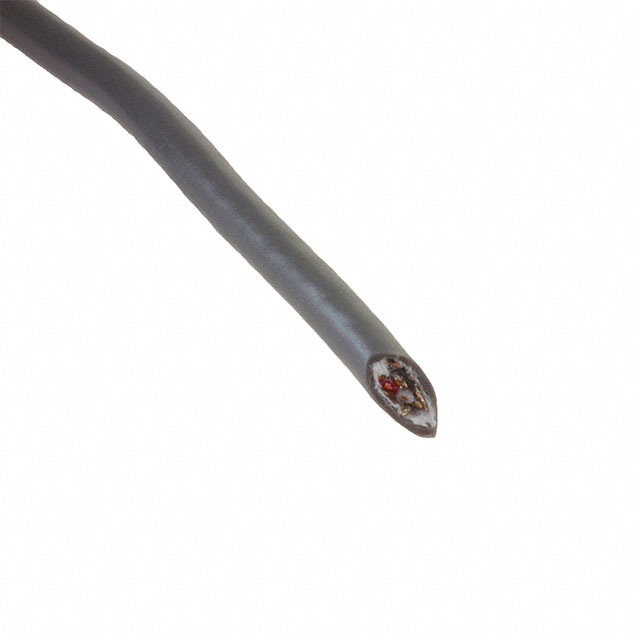

Specification	8643 060100

Cable Type	Conductor, Multi
Conductor Insulation	Polypropylene (PP)
Conductor Material	Tinned, Copper
Conductor Strand Count	7 Strands
Conductor Strand Gauge	38 AWG
Jacket (Insulation) Diameter	0.096 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.014 in
Jacket Color	Chrome
Length	100 ft
Number of Conductors	3
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-20 °C
Shield Coverage	95 %
Shield Material	Copper, Tinned
Shield Type	Braid
Usage	Instrumentation, Control, Audio
Wire Gauge	30 AWG

8643 Series

Part	Shield Coverage	Shield Material	Shield Type	Wire Gauge	Length	Jacket Color	Conductor Material	Conductor Insulation	Conductor Strand Count	Conductor Strand Gauge	Jacket (Insulation) Thickness	Jacket (Insulation) Diameter	Operating Temperature (Min)	Operating Temperature (Max)	Cable Type	Jacket (Insulation) Material	Usage	Number of Conductors
Belden Inc. 8643 060100	95 %	Copper Tinned	Braid	30 AWG	100 ft	Chrome	Copper Tinned	Polypropylene (PP)	7 Strands	38 AWG	0.014 in	0.096 in	-20 °C	105 °C	Conductor Multi	Poly-Vinyl Chloride (PVC)	Audio Control Instrumentation	3
Belden Inc. 8643 060250	95 %	Copper Tinned	Braid	30 AWG	250 ft	Chrome	Copper Tinned	Polypropylene (PP)	7 Strands	38 AWG	0.014 in	0.096 in	-20 °C	105 °C	Conductor Multi	Poly-Vinyl Chloride (PVC)	Audio Control Instrumentation	3
