CT2887-10-0
ActiveCal Test Electronics

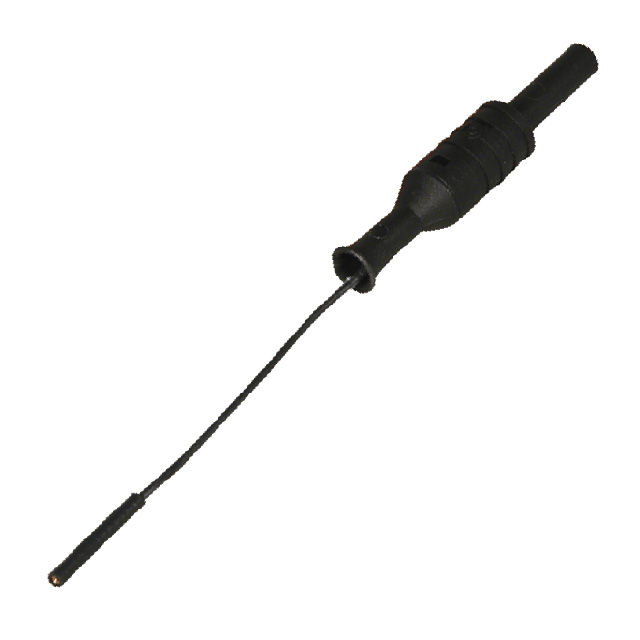

TEST LEAD BANANA TO SOCKET 4"
CT2887-10-0
ActiveCal Test Electronics
TEST LEAD BANANA TO SOCKET 4"
Description
General part information
CT2887 Series
4.0" (101.60mm) Banana Socket (Jack), Single, Sheathed To Socket, Round, 0.030" (0.76mm) Patch Cord 33VAC, 70VDC
Technical Specifications
Parameters and characteristics for this part
| Specification | CT2887-10-0 |
|---|---|
| 1st Connector | Sheathed, Banana Socket (Jack), Single |
| 2nd Connector | 0.030", Round, Socket |
| 2nd Connector Diameter | 0.76 mm |
| Cable Length | 4 in |
| Configuration | Banana to Socket |
| Contents | Black |
| Current Rating | 2 A |
| Lead Quantity | 1 |
| Material - Insulation | Silicone |
| Stacking Method | Non Stackable |
| Type | Patch Cord |
| Voltage - Rated | 33 VAC, 70 VAC |
| Wire Gauge | 24 AWG |
