MYMGK1R806FRSR

Active

Murata Power Solutions Inc.

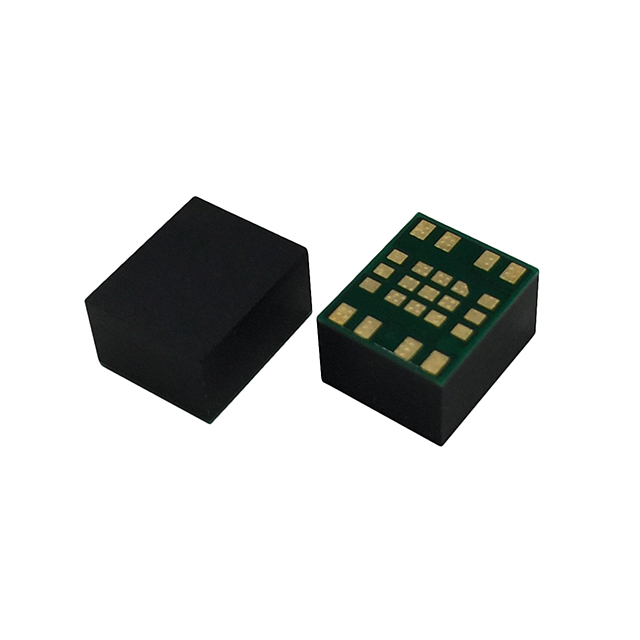

DC/DC POL CONVERTER, ADJUSTABLE, MINIATURE MONO BLOCK, 4.5V TO 5.5V, 11W, 0.7V TO 1.8V, 6A

Deep-Dive with AI

Search across all available documentation for this part.

MYMGK1R806FRSR

Active

Murata Power Solutions Inc.

DC/DC POL CONVERTER, ADJUSTABLE, MINIATURE MONO BLOCK, 4.5V TO 5.5V, 11W, 0.7V TO 1.8V, 6A

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MYMGK1R806FRSR	MYMGK1R8 Series

Applications	ITE (Commercial)	ITE (Commercial)
Board Type	-	Fully Populated
Contents	-	Board(s)
Control Features	Active High, Enable	Active High, Enable
Current - Output	-	4 - 12 A
Current - Output (Max) [Max]	6 A	4 - 20 A
Efficiency	90 %	89.2 - 93 %
Features	OVP, UVLO, OCP, Remote On/Off, SCP	OCP, UVLO, OTP, Remote On/Off, SCP, OVP
Frequency - Switching	-	250 - 500 kHz
Main Purpose	-	DC/DC Converter, DC/DC, Step Down
Mounting Type	Surface Mount	Surface Mount
Number of Outputs	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Outputs and Type	-	1 Non-Isolated Output, Non-Isolated
Outputs and Type	-	1
Package / Case	23-SMD Module	23-SMD Module, 37-SMD Module
Power - Output	-	7.2 - 21.6 W
Power (Watts)	-	7.2 W
Regulator Topology	-	Buck
Size / Dimension	-	5.6 mm
Size / Dimension	-	9 mm
Size / Dimension [x]	9 mm	9 - 10.5 mm
Size / Dimension [x]	0.35 in	0.35 - 0.41 in
Size / Dimension [y]	7.5 mm	7.5 mm
Size / Dimension [y]	0.3 "	0.3 - 0.35 "
Size / Dimension [z]	5 mm	5 mm
Size / Dimension [z]	0.2 "	0.2 - 0.22 "
Supplied Contents	-	Board(s)
Supplier Device Package	Module	Module
Type	Non-Isolated PoL Module	Non-Isolated PoL Module
Utilized IC / Part	-	MYMGK1R806FRSR, MYMGK1R812FRSR
Voltage - Input	-	5.5 - 8 V
Voltage - Input	-	4.5 V
Voltage - Input (Max) [Max]	5.5 V	5.5 - 14 V
Voltage - Input (Min) [Min]	4.5 V	4.5 - 8 V
Voltage - Output	-	0.7 - 1.8 V
Voltage - Output 1 [Max]	1.8 V	1.8 V
Voltage - Output 1 [Min]	0.7 V	0.7 V

MYMGK1R8 Series

Power Management IC Development Tools 12A 8-15VIN 0.7-1.8VOUT

Part	Outputs and Type	Current - Output	Voltage - Output	Utilized IC / Part	Main Purpose	Voltage - Input [Max]	Voltage - Input [Min]	Contents	Frequency - Switching	Power - Output	Supplied Contents	Regulator Topology	Outputs and Type	Board Type	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Power (Watts)	Package / Case	Efficiency	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Mounting Type	Number of Outputs	Voltage - Input (Min) [Min]	Type	Supplier Device Package	Control Features	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Features	Size / Dimension [z]	Size / Dimension [y]
Murata Power Solutions Inc. MYMGK1R806FRSR-EVM	1 Non-Isolated Output	6 A	1.8 V	MYMGK1R806FRSR	DC/DC Converter	5.5 V	4.5 V	Board(s)	250 kHz
Murata Power Solutions Inc. MYMGK1R812FRSR-EVM	Non-Isolated	12 A	0.7 V, 1.8 V	MYMGK1R812FRSR	DC/DC, Step Down	8 VDC	4.5 V		500 kHz	21.6 W	Board(s)	Buck	1	Fully Populated
Murata Power Solutions Inc. MYMGK1R804FRSR															0.7 V	1.8 V	7.2 W	23-SMD Module	93 %	ITE (Commercial)	85 °C	-40 °C	7.5 mm	0.3 "	5 mm	0.2 "	9 mm	0.35 in	Surface Mount	1	4.5 V	Non-Isolated PoL Module	Module	Active High, Enable	4 A	5.5 V	OCP, OTP, OVP, Remote On/Off, SCP, UVLO
Murata Power Solutions Inc. MYMGK1R820ERSR															0.7 V	1.8 V		37-SMD Module	89.2 %	ITE (Commercial)	85 °C	-40 °C		0.35 "		0.22 in	10.5 mm	0.41 "	Surface Mount	1	8 V	Non-Isolated PoL Module	Module	Active High, Enable	20 A	14 V	OCP, OVP, Remote On/Off, SCP, UVLO	5.6 mm	9 mm
Murata Power Solutions Inc. MYMGK1R804FRSR-EVM	Non-Isolated	4 A	1.8 V		DC/DC, Step Down	8 VDC	4.5 V		250 kHz	7.2 W	Board(s)	Buck	1	Fully Populated
Murata Power Solutions Inc. MYMGK1R806FRSR															0.7 V	1.8 V		23-SMD Module	90 %	ITE (Commercial)	85 °C	-40 °C	7.5 mm	0.3 "	5 mm	0.2 "	9 mm	0.35 in	Surface Mount	1	4.5 V	Non-Isolated PoL Module	Module	Active High, Enable	6 A	5.5 V	OCP, OVP, Remote On/Off, SCP, UVLO
