Specification	MYMGK1R806FRSR

Applications	ITE (Commercial)
Control Features	Active High, Enable
Current - Output (Max)	6 A
Efficiency	90 %
Features	UVLO, Remote On/Off, OVP, SCP, OCP
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Package / Case	23-SMD Module
Package Name	Module
Size / Dimension Height	0.2 in
Size / Dimension Length	0.35 in
Size / Dimension Width	0.3 in
Type	Non-Isolated PoL Module
Voltage - Input (Max)	5.5 V
Voltage - Input (Min)	4.5 V
Voltage - Output 1 (Max)	1.8 V
Voltage - Output 1 (Min)	0.7 V

MYMGK1R8 Series

Part	Total Output Count	Output Type	Non-Isolated Output Count	Board Type	Power - Output	Supplied Contents	Contents	Current - Output	Voltage - Input (Maximum)	Voltage - Input (Minimum)	Frequency - Switching	Regulator Topology	Main Purpose	Voltage - Output	Power (Watts)	Current - Output (Max)	Voltage - Input (Min)	Voltage - Output 1 (Min)	Voltage - Output 1 (Max)	Package Name	Features	Package / Case	Operating Temperature (Max)	Operating Temperature (Min)	Applications	Size / Dimension Height	Size / Dimension Length	Size / Dimension Width	Efficiency	Type	Mounting Type	Control Features	Number of Outputs	Voltage - Input (Max)	Utilized IC / Part
Murata Electronics MYMGK1R804FRSR-EVM	1	Non-Isolated	1 count	Fully Populated	7.2 W	Board(s)	Board	4 A	8 V	4.5 V	250 kHz	Buck	DC/DC Step Down	1.8 V
Murata Electronics MYMGK1R804FRSR															7.2 W	4 A	4.5 V	0.7 V	1.8 V	Module	OCP OTP OVP Remote On/Off SCP UVLO	23-SMD Module	85 °C	-40 °C	ITE (Commercial)	0.2 in	0.35 in	0.3 in	93 %	Non-Isolated PoL Module	Surface Mount	Active High Enable	1	5.5 V

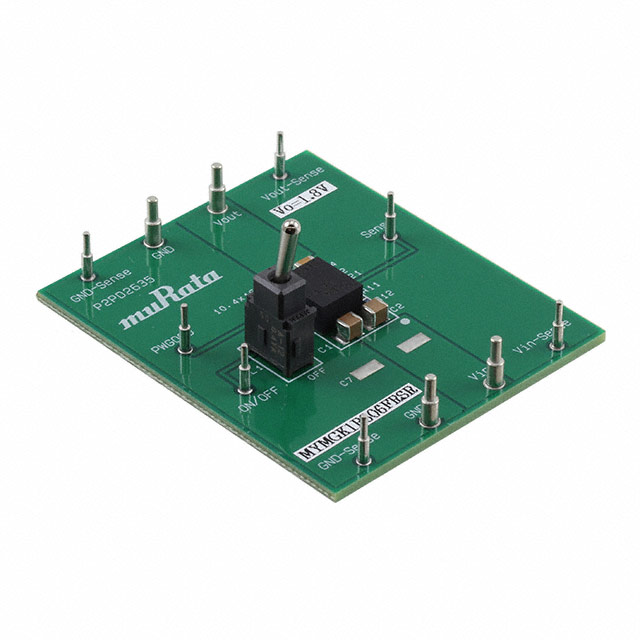

Murata Electronics MYMGK1R806FRSR-EVM	1	Non-Isolated	1 count				Board	6 A	5.5 V	4.5 V	250 kHz		DC/DC Converter	1.8 V																					MYMGK1R806FRSR
Murata Electronics MYMGK1R820ERSR																20 A	8 V	0.7 V	1.8 V	Module	OCP OVP Remote On/Off SCP UVLO	37-SMD Module	85 °C	-40 °C	ITE (Commercial)	0.22 in	0.41 in	0.35 in	89.2 %	Non-Isolated PoL Module	Surface Mount	Active High Enable	1	14 V
Murata Electronics MYMGK1R806FRSR																6 A	4.5 V	0.7 V	1.8 V	Module	OCP OVP Remote On/Off SCP UVLO	23-SMD Module	85 °C	-40 °C	ITE (Commercial)	0.2 in	0.35 in	0.3 in	90 %	Non-Isolated PoL Module	Surface Mount	Active High Enable	1	5.5 V
Murata Electronics MYMGK1R812FRSR-EVM	1	Non-Isolated	1 count	Fully Populated	21.6 W	Board(s)	Board	12 A	8 V	4.5 V	500 kHz	Buck	DC/DC Step Down	0.7 V 1.8 V																					MYMGK1R812FRSR
