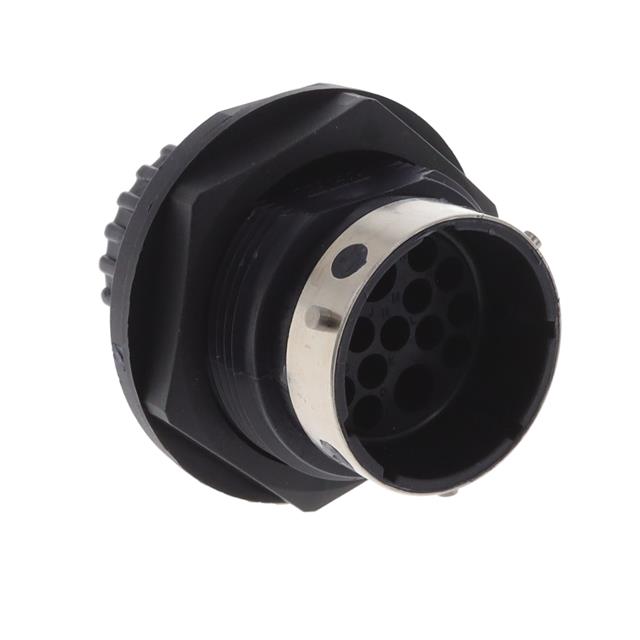

CIRCULAR CONNECTOR, TRIDENT NEPTUNE SERIES, JAM NUT RECEPTACLE, 15 CONTACTS
TN7S16-0213P1L
ActiveITT Cannon, LLC
CIRCULAR CONNECTOR, TRIDENT NEPTUNE SERIES, JAM NUT RECEPTACLE, 15 CONTACTS
Description
General part information
TN7S1 Series
15 (13 + 2 Power) Position Circular Connector Receptacle Housing Panel Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | TN7S16-0213P1L |
|---|---|
| Connector Type | Receptacle Housing |
| Contact Shape | Circular |
| Contact Type | Solder Cup, Crimp, Solder |
| Fastening Type | Detent Lock |
| Housing Color | Black |
| Includes | Connector, Nuts, O-Ring, Grommet |
| Includes Total Count | 5 pcs |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Bulkhead, Front Side Nut |
| Mounting Type | Panel Mount |
| Note | Contacts Not Included |
| Number of Positions (Normal) | 13 |
| Number of Positions (Power) | 2 |
| Number of Positions (Total) | 15 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Shell Material | Nylon, Polyamide (PA) |
| Shell Size - Insert (Maximum) | 213 |
| Shell Size - Insert (Minimum) | 16 S |
| Shielding | Unshielded |
| Type | For Male Pins |
