2145-1X10C00SA

Active

Oupiin

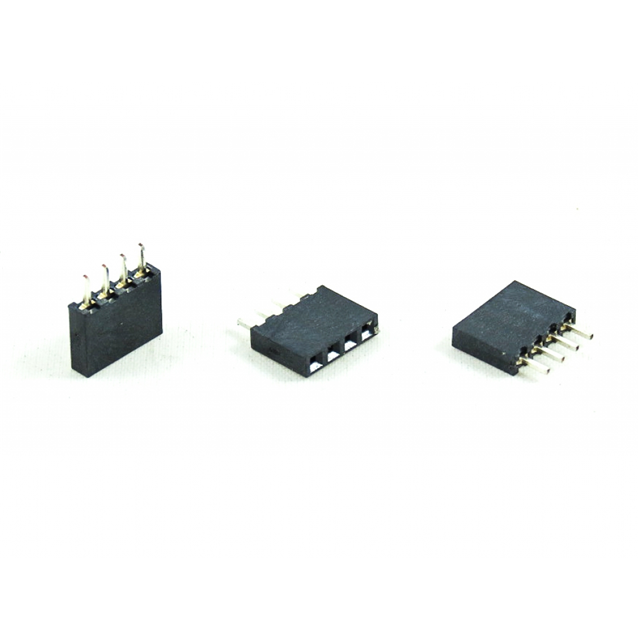

PCB SOCKET, SINGLE ROW, 10 PIN,

Search across all available documentation for this part.

Active

Oupiin

PCB SOCKET, SINGLE ROW, 10 PIN,

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2145-1X10C00SA	2145 Series

Connector Type	Socket	Socket
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Gold	Gold
Contact Finish Thickness - Mating	Flash	Flash
Contact Finish Thickness - Post	Flash	Flash
Contact Length - Post	0.094 in	0.094 in
Contact Length - Post	2.4 mm	2.4 mm
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Female Socket	Female Socket
Fastening Type	Push-Pull	Push-Pull
Insulation Material	Plastic	Plastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	10	4 - 40
Number of Positions Loaded	All	All
Number of Rows	1	1 - 2
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Pitch - Mating [x]	0.079 in	0.079 in
Pitch - Mating [x]	2 mm	2 mm
Row Spacing - Mating	-	0.079 in
Row Spacing - Mating	-	2 mm
Termination	Solder	Solder

PCB SOCKET, SINGLE ROW, 36 PIN,

Part	Number of Positions	Contact Material	Fastening Type	Connector Type	Number of Positions Loaded	Number of Rows	Contact Finish - Mating	Termination	Contact Finish Thickness - Mating	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Post	Pitch - Mating [x]	Pitch - Mating [x]	Contact Shape	Material Flammability Rating	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Insulation Material	Contact Finish - Post	Row Spacing - Mating	Row Spacing - Mating
Oupiin 2145-1X36C00SA	36	Copper Alloy	Push-Pull	Socket	All	1	Gold	Solder	Flash	0.094 in	2.4 mm	Flash	0.079 in	2 mm	Square	UL94 V-0	Through Hole	125 °C	-65 ░C	Female Socket	Plastic	Gold
Oupiin 2145-1X04C00SA	4	Copper Alloy	Push-Pull	Socket	All	1	Gold	Solder	Flash	0.094 in	2.4 mm	Flash	0.079 in	2 mm	Square	UL94 V-0	Through Hole	125 °C	-65 ░C	Female Socket	Plastic	Gold
Oupiin 2145-2X20G00SA	40	Copper Alloy	Push-Pull	Socket	All	2	Gold	Solder	Flash	0.094 in	2.4 mm	Flash	0.079 in	2 mm	Square	UL94 V-0	Through Hole	125 °C	-65 ░C	Female Socket	Plastic	Gold	0.079 in	2 mm
Oupiin 2145-2X09C00SA	18	Copper Alloy	Push-Pull	Socket	All	2	Gold	Solder	Flash	0.094 in	2.4 mm	Flash	0.079 in	2 mm	Square	UL94 V-0	Through Hole	125 °C	-65 ░C	Female Socket	Plastic	Gold	0.079 in	2 mm
Oupiin 2145-1X10C00SA	10	Copper Alloy	Push-Pull	Socket	All	1	Gold	Solder	Flash	0.094 in	2.4 mm	Flash	0.079 in	2 mm	Square	UL94 V-0	Through Hole	125 °C	-65 ░C	Female Socket	Plastic	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Position Socket Connector 0.079" (2.00mm) Through Hole Gold
