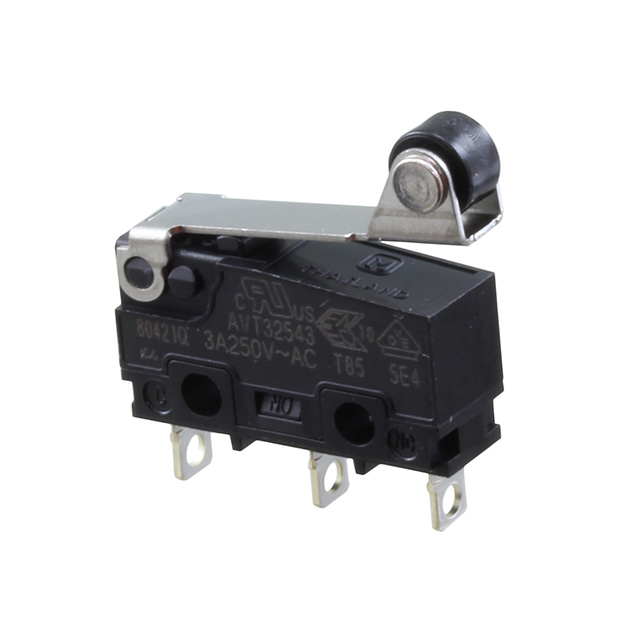

AVT32543-A
ActivePanasonic Electric Works
SWITCH SNAP ACTION SPDT 3A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsHow to Read Date Codes
AVT32543-A
ActivePanasonic Electric Works
SWITCH SNAP ACTION SPDT 3A 125V
Deep-Dive with AI
DocumentsHow to Read Date Codes
Technical Specifications
Parameters and characteristics for this part
| Specification | AVT32543-A |
|---|---|
| Actuator Type | Roller, Lever |
| Circuit | SPDT |
| Current Rating (Amps) | 3 A |
| Differential Travel | 0.5 mm |
| Differential Travel | 0.02 in |
| Electrical Life | 50000 Cycles |
| Mechanical Life | 500000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force | 40 gf |
| Operating Position [custom] | 0.571 in |
| Operating Position [custom] | 14.5 mm |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Overtravel | 0.76 mm |
| Overtravel | 0.03 in |
| Pretravel | 0.1 in |
| Pretravel | 2.5 mm |
| Release Force | 3.5 gf |
| Switch Function | On-Mom |
| Termination Style | Solder Lug |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
