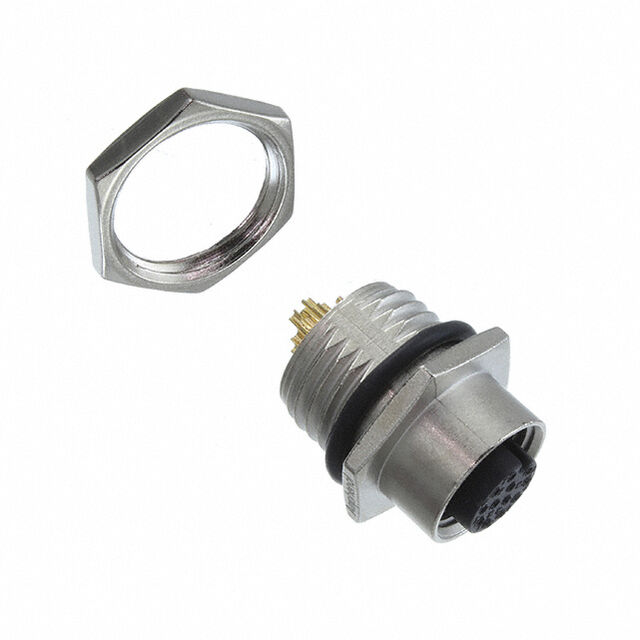

M12A-12PFFS-SH8001 - M Series

M12A-12PFFS-SH8001

Active
Amphenol LTW

CONNECTOR: M12; SOCKET; FEMALE; PIN: 12

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
M12A-12PFFS-SH8001 - M Series

M12A-12PFFS-SH8001

Active
Amphenol LTW

CONNECTOR: M12; SOCKET; FEMALE; PIN: 12

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics for this part

SpecificationM12A-12PFFS-SH8001
ColorSilver
Connector TypeReceptacle, Female Sockets
Contact Finish - MatingGold
Contact MaterialCopper Alloy
Current Rating (Amps)1.5 A
Ingress ProtectionIP68, IP69K
Insert MaterialPolyamide (PA), Nylon, Glass Filled
Mounting FeatureBulkhead - Rear Side Nut
Mounting TypeThrough Hole, Panel Mount
Number of Positions12
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-40 °C
OrientationA
Primary MaterialMetal
Shell FinishNickel
Shell MaterialZinc Alloy
Shell Size - InsertM12-12
ShieldingShielded
Voltage Rating30 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 13.75
10$ 12.19
25$ 11.72
50$ 11.25
100$ 10.63
250$ 9.69
450$ 9.07
950$ 8.32
TMEN/A 10$ 29.67
25$ 26.73
100$ 24.68
500$ 23.71

Description

General part information

M12A-12PFFS Series

12 Position Circular Connector Receptacle, Female Sockets Solder Cup

Documents

Technical documentation and resources

Datasheet

Datasheet
