S26B-PHDSS

Active

JST Sales America Inc.

CONN HEADER R/A 26POS 2MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER R/A 26POS 2MM

Technical Specifications

Parameters and characteristics for this part

Specification	S26B-PHDSS

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	0.114 in
Contact Length - Mating	2.9 mm
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Detent Lock
Insulation Color	Natural
Insulation Height	0.197 in
Insulation Height	5 mm
Insulation Material	Nylon, Polyamide (PA), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	26
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VDC

Part	Contact Length - Mating	Contact Length - Mating	Number of Rows	Number of Positions Loaded	Pitch - Mating [x]	Pitch - Mating [x]	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height	Style	Contact Shape	Connector Type	Material Flammability Rating	Contact Finish - Post	Voltage Rating	Fastening Type	Current Rating (Amps)	Row Spacing - Mating	Row Spacing - Mating	Insulation Material	Number of Positions	Insulation Color	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Shrouding	Contact Material	Contact Type
JST Sales America Inc. S26B-PHDSS	0.114 in	2.9 mm	2	All	0.079 in	2 mm	0.118 in	3 mm	0.197 in	5 mm	Board to Cable/Wire	Square	Header	UL94 V-0	Tin	250 VDC	Detent Lock	3 A	0.079 in	2 mm	Glass Filled Nylon Polyamide (PA)	26	Natural	Solder	-25 °C	85 °C	Through Hole Right Angle	Shrouded - 4 Wall	Copper Alloy	Male Pin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

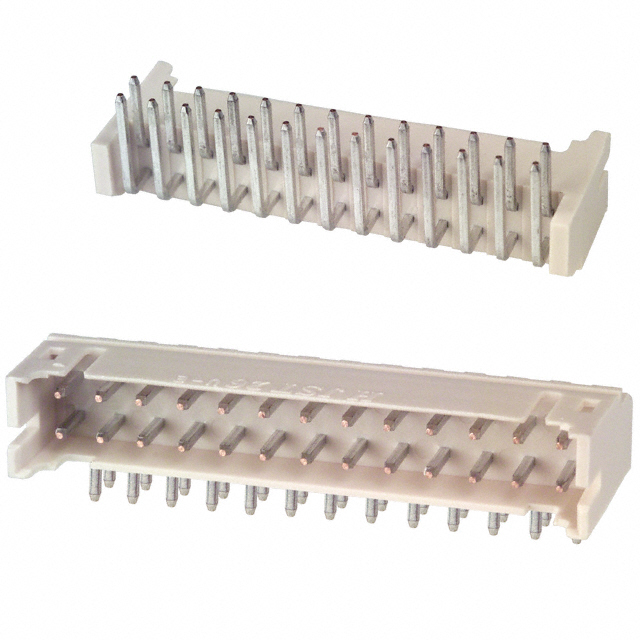

Connector Header Through Hole, Right Angle 26 position 0.079" (2.00mm)
