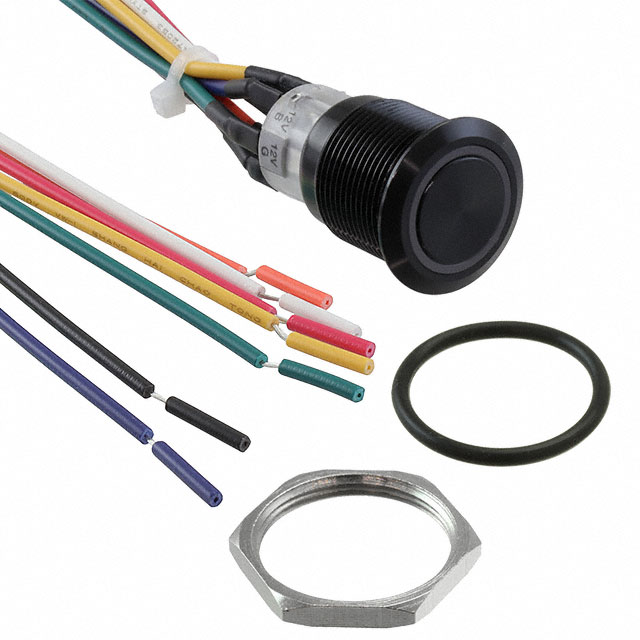

Specification	PV4FWB011-3R4

Actuator Marking	No Marking
Actuator Type	Round, Flush, Button
Circuit	SPDT
Color	Blue, Red, Green
Color - Actuator/Cap	Black
Current Rating	2 A
Electrical Life (Cycles)	50000
Illumination Type	LED
Illumination Voltage (Nominal)	12 V
Ingress Protection Description	Dust Tight, Water Resistant
Ingress Protection IP Rating	IP65
Mechanical Life (Cycles)	1000000 Cycles
Mounting Type	Front, Panel Mount
Operating Temperature (Max)	55 °C
Operating Temperature (Min)	-20 °C
Panel Cutout Diameter	19 mm
Panel Cutout Shape	Circular
Switch Function	On-Mom
Termination Style	Wire Leads
Type	Illuminated, Anti-Vandal
Voltage Rating - DC	24 V

pv4 Series

Part	Actuator Type	Illumination Voltage (Nominal)	Quick Connect Size (0.110")	Termination Style	Actuator Marking	Illumination Type	Color	Mounting Type	Current Rating	Ingress Protection IP Rating	Ingress Protection Description	Switch Function	Operating Temperature (Min)	Operating Temperature (Max)	Circuit	Voltage Rating - DC	Panel Cutout Diameter	Panel Cutout Shape	Type	Features	Color - Actuator/Cap	Electrical Life (Cycles)	Mechanical Life (Cycles)
E-Switch PV4F2B0SS-341-M01	Button Flush Round	2.8 VDC	0.11 in	Quick Connect Solder	Power Symbol	LED	Blue	Front Panel Mount	2 A	IP65	Dust Tight Water Resistant	On-Mom	-20 °C	55 °C	SPDT	24 V	19 mm	Circular	Anti-Vandal Illuminated	Fixed LED Ring	Silver	50000
E-Switch PV4FWB0SS-341	Button Flush Round	2.8 VDC		Wire Leads		LED	Blue	Front Panel Mount	2 A	IP65	Dust Tight Water Resistant	On-Mom	-20 °C	55 °C	SPDT	24 V	19 mm	Circular	Anti-Vandal Illuminated		Silver
E-Switch PV4F230SS-341	Button Flush Round	2.8 VDC	0.11 in	Quick Connect Solder	No Marking	LED	Blue	Front Panel Mount	2 A	IP65	Dust Tight Water Resistant	On-On	-20 °C	55 °C	SPDT	24 V	19 mm	Circular	Anti-Vandal Illuminated		Silver	50000	1000000 Cycles
E-Switch PV4F2B0SS-333-M26	Button Flush Round	6 VDC	0.11 in	Quick Connect Solder		LED	Green	Front Panel Mount	2 A	IP65	Dust Tight Water Resistant	On-Mom	-20 °C	55 °C	SPDT	24 V	19 mm	Circular	Anti-Vandal Illuminated		Silver
E-Switch PV4F2G0SS-344-M39
E-Switch PV4F2Y0SS-304-M26	Button Flush Round	12 V	0.11 in	Quick Connect Solder		LED	White	Front Panel Mount	2 A	IP65	Dust Tight Water Resistant	Off-Mom On-Mom	-20 °C	55 °C	DPST-NO/NC	24 V	19 mm	Circular	Anti-Vandal Illuminated		Silver
E-Switch PV4F23011-3R4	Button Flush Round	12 V	0.11 in	Quick Connect Solder	No Marking	LED	Blue Green Red	Front Panel Mount	2 A	IP65	Dust Tight Water Resistant	On-On	-20 °C	55 °C	SPDT	24 V	19 mm	Circular	Anti-Vandal Illuminated		Black	50000	1000000 Cycles
E-Switch PV4FWB011-3R4	Button Flush Round	12 V		Wire Leads	No Marking	LED	Blue Green Red	Front Panel Mount	2 A	IP65	Dust Tight Water Resistant	On-Mom	-20 °C	55 °C	SPDT	24 V	19 mm	Circular	Anti-Vandal Illuminated		Black	50000	1000000 Cycles
E-Switch PV4F23011-335	Button Flush Round	24 V	0.11 in	Quick Connect Solder	No Marking	LED	Green	Front Panel Mount	2 A	IP65	Dust Tight Water Resistant	On-On	-20 °C	55 °C	SPDT	24 V	19 mm	Circular	Anti-Vandal Illuminated		Black
E-Switch PV4F2B0SS-331-M01	Button Flush Round	2.8 VDC	0.11 in	Quick Connect Solder		LED	Green	Front Panel Mount	2 A	IP65	Dust Tight Water Resistant	On-Mom	-20 °C	55 °C	SPDT	24 V	19 mm	Circular	Anti-Vandal Illuminated		Silver

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

PV4FWB011-3R4.pdf
