1-104074-1
ActiveTE Connectivity AMP Connectors

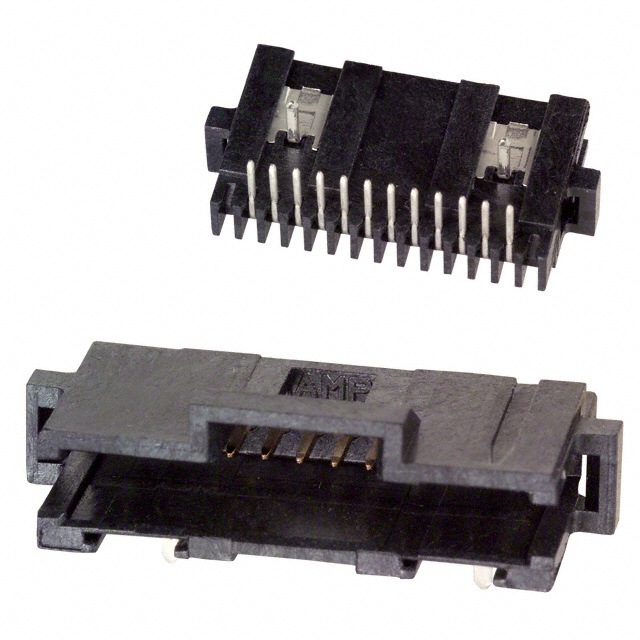

CONN HEADER R/A 12POS 1.27MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-104074-1
ActiveTE Connectivity AMP Connectors
CONN HEADER R/A 12POS 1.27MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1-104074-1 | 104074 Series |
|---|---|---|
| Applications | Medical, General Purpose, Automotive, Telecommunications | Medical, General Purpose, Automotive, Telecommunications |
| Connector Type | Header | Header |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish - Post | Tin-Lead | Tin-Lead, Tin |
| Contact Finish Thickness - Mating | 30 Áin | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness - Post | 150 Áin | 150 Áin |
| Contact Finish Thickness - Post | 3.81 Ám | 3.81 Ám |
| Contact Length - Mating | 0.125 in | 0.125 in |
| Contact Length - Mating | 3.18 mm | 3.18 mm |
| Contact Length - Post | 2.54 mm | 2.54 mm |
| Contact Length - Post | 0.1 in | 0.1 in |
| Contact Material | Copper Alloy | Copper Alloy |
| Contact Shape | Circular | Circular |
| Contact Type | Male Pin | Male Pin |
| Fastening Type | Latch Holder | Latch Holder |
| Features | Board Guide | Board Guide |
| Insulation Color | Black | Black |
| Insulation Height | 4.83 mm | 4.83 mm |
| Insulation Height | 0.19 in | 0.19 in |
| Insulation Material | Thermoplastic | Thermoplastic |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle |
| Number of Positions | 12 | 4 - 50 |
| Number of Positions Loaded | All | All |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Pitch - Mating | 0.05 in | 0.05 in |
| Pitch - Mating | 1.27 mm | 1.27 mm |
| Shrouding | Shrouded - 2 Wall | Shrouded - 2 Wall |
| Style | Board to Board, Cable | Board to Board, Cable |
| Termination | Solder | Solder |
| Voltage Rating | 30 VAC | 30 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1380 | $ 2.64 | |
104074 Series
CONN HEADER R/A 12POS 1.27MM
| Part | Insulation Height | Insulation Height | Number of Rows | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Pitch - Mating | Pitch - Mating | Connector Type | Contact Material | Number of Positions Loaded | Contact Shape | Features | Fastening Type | Termination | Material Flammability Rating | Contact Length - Mating | Contact Length - Mating | Insulation Color | Mounting Type | Insulation Material | Style | Voltage Rating | Contact Finish - Mating | Applications | Contact Length - Post | Contact Length - Post | Contact Finish - Post | Shrouding | Contact Type | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1-104074-1 | 4.83 mm | 0.19 in | 1 | -65 ░C | 105 ░C | 12 | 0.05 in | 1.27 mm | Header | Copper Alloy | All | Circular | Board Guide | Latch Holder | Solder | UL94 V-0 | 0.125 in | 3.18 mm | Black | Through Hole, Right Angle | Thermoplastic | Board to Board, Cable | 30 VAC | Gold | Automotive, General Purpose, Medical, Telecommunications | 2.54 mm | 0.1 in | Tin-Lead | Shrouded - 2 Wall | Male Pin | 150 Áin | 3.81 Ám | 30 Áin | 0.76 Ám |
TE Connectivity AMP Connectors 1-104074-0 | 4.83 mm | 0.19 in | 1 | -65 ░C | 105 ░C | 8 | 0.05 in | 1.27 mm | Header | Copper Alloy | All | Circular | Board Guide | Latch Holder | Solder | UL94 V-0 | 0.125 in | 3.18 mm | Black | Through Hole, Right Angle | Thermoplastic | Board to Board, Cable | 30 VAC | Gold | Automotive, General Purpose, Medical, Telecommunications | 2.54 mm | 0.1 in | Tin-Lead | Shrouded - 2 Wall | Male Pin | 150 Áin | 3.81 Ám | 30 Áin | 0.76 Ám |
TE Connectivity AMP Connectors 1-104074-7 | 4.83 mm | 0.19 in | 1 | -65 ░C | 105 ░C | 40 | 0.05 in | 1.27 mm | Header | Copper Alloy | All | Circular | Board Guide | Latch Holder | Solder | UL94 V-0 | 0.125 in | 3.18 mm | Black | Through Hole, Right Angle | Thermoplastic | Board to Board, Cable | 30 VAC | Gold | Automotive, General Purpose, Medical, Telecommunications | 2.54 mm | 0.1 in | Tin-Lead | Shrouded - 2 Wall | Male Pin | 150 Áin | 3.81 Ám | 30 Áin | 0.76 Ám |
TE Connectivity AMP Connectors 104074-1 | 4.83 mm | 0.19 in | 1 | -65 ░C | 105 ░C | 10 | 0.05 in | 1.27 mm | Header | Copper Alloy | All | Circular | Board Guide | Latch Holder | Solder | UL94 V-0 | 0.125 in | 3.18 mm | Black | Through Hole, Right Angle | Thermoplastic | Board to Board, Cable | 30 VAC | Gold | Automotive, General Purpose, Medical, Telecommunications | 2.54 mm | 0.1 in | Tin-Lead | Shrouded - 2 Wall | Male Pin | 150 Áin | 3.81 Ám | 30 Áin | 0.76 Ám |
TE Connectivity AMP Connectors 6-104074-0 | 4.83 mm | 0.19 in | 1 | -65 ░C | 105 ░C | 8 | 0.05 in | 1.27 mm | Header | Copper Alloy | All | Circular | Board Guide | Latch Holder | Solder | UL94 V-0 | 0.125 in | 3.18 mm | Black | Through Hole, Right Angle | Thermoplastic | Board to Board, Cable | 30 VAC | Gold | Automotive, General Purpose, Medical, Telecommunications | 2.54 mm | 0.1 in | Tin | Shrouded - 2 Wall | Male Pin | 150 Áin | 3.81 Ám | 30 Áin | 0.76 Ám |
TE Connectivity AMP Connectors 104074-3 | 4.83 mm | 0.19 in | 1 | -65 ░C | 105 ░C | 15 | 0.05 in | 1.27 mm | Header | Copper Alloy | All | Circular | Board Guide | Latch Holder | Solder | UL94 V-0 | 0.125 in | 3.18 mm | Black | Through Hole, Right Angle | Thermoplastic | Board to Board, Cable | 30 VAC | Gold | Automotive, General Purpose, Medical, Telecommunications | 2.54 mm | 0.1 in | Tin-Lead | Shrouded - 2 Wall | Male Pin | 150 Áin | 3.81 Ám | 30 Áin | 0.76 Ám |
TE Connectivity AMP Connectors 104074-8 | 4.83 mm | 0.19 in | 1 | -65 ░C | 105 ░C | 6 | 0.05 in | 1.27 mm | Header | Copper Alloy | All | Circular | Board Guide | Latch Holder | Solder | UL94 V-0 | 0.125 in | 3.18 mm | Black | Through Hole, Right Angle | Thermoplastic | Board to Board, Cable | 30 VAC | Gold | Automotive, General Purpose, Medical, Telecommunications | 2.54 mm | 0.1 in | Tin-Lead | Shrouded - 2 Wall | Male Pin | 150 Áin | 3.81 Ám | 30 Áin | 0.76 Ám |
TE Connectivity AMP Connectors 1-104074-6 | 4.83 mm | 0.19 in | 1 | -65 ░C | 105 ░C | 36 | 0.05 in | 1.27 mm | Header | Copper Alloy | All | Circular | Board Guide | Latch Holder | Solder | UL94 V-0 | 0.125 in | 3.18 mm | Black | Through Hole, Right Angle | Thermoplastic | Board to Board, Cable | 30 VAC | Gold | Automotive, General Purpose, Medical, Telecommunications | 2.54 mm | 0.1 in | Tin-Lead | Shrouded - 2 Wall | Male Pin | 150 Áin | 3.81 Ám | 30 Áin | 0.76 Ám |
TE Connectivity AMP Connectors 1-104074-9 | 4.83 mm | 0.19 in | 1 | -65 ░C | 105 ░C | 50 | 0.05 in | 1.27 mm | Header | Copper Alloy | All | Circular | Board Guide | Latch Holder | Solder | UL94 V-0 | 0.125 in | 3.18 mm | Black | Through Hole, Right Angle | Thermoplastic | Board to Board, Cable | 30 VAC | Gold | Automotive, General Purpose, Medical, Telecommunications | 2.54 mm | 0.1 in | Tin-Lead | Shrouded - 2 Wall | Male Pin | 150 Áin | 3.81 Ám | 30 Áin | 0.76 Ám |
TE Connectivity AMP Connectors 5-104074-1 | 4.83 mm | 0.19 in | 1 | -65 ░C | 105 ░C | 10 | 0.05 in | 1.27 mm | Header | Copper Alloy | All | Circular | Board Guide | Latch Holder | Solder | UL94 V-0 | 0.125 in | 3.18 mm | Black | Through Hole, Right Angle | Thermoplastic | Board to Board, Cable | 30 VAC | Gold | Automotive, General Purpose, Medical, Telecommunications | 2.54 mm | 0.1 in | Tin | Shrouded - 2 Wall | Male Pin | 150 Áin | 3.81 Ám | 30 Áin | 0.76 Ám |
TE Connectivity AMP Connectors 104074-6 | 4.83 mm | 0.19 in | 1 | -65 ░C | 105 ░C | 30 | 0.05 in | 1.27 mm | Header | Copper Alloy | All | Circular | Board Guide | Latch Holder | Solder | UL94 V-0 | 0.125 in | 3.18 mm | Black | Through Hole, Right Angle | Thermoplastic | Board to Board, Cable | 30 VAC | Gold | Automotive, General Purpose, Medical, Telecommunications | 2.54 mm | 0.1 in | Tin-Lead | Shrouded - 2 Wall | Male Pin | 150 Áin | 3.81 Ám | 30 Áin | 0.76 Ám |
TE Connectivity AMP Connectors 5-104074-7 | 4.83 mm | 0.19 in | 1 | -65 ░C | 105 ░C | 4 | 0.05 in | 1.27 mm | Header | Copper Alloy | All | Circular | Board Guide | Latch Holder | Solder | UL94 V-0 | 0.125 in | 3.18 mm | Black | Through Hole, Right Angle | Thermoplastic | Board to Board, Cable | 30 VAC | Gold | Automotive, General Purpose, Medical, Telecommunications | 2.54 mm | 0.1 in | Tin | Shrouded - 2 Wall | Male Pin | 150 Áin | 3.81 Ám | 30 Áin | 0.76 Ám |
TE Connectivity AMP Connectors 6-104074-7 | 4.83 mm | 0.19 in | 1 | -65 ░C | 105 ░C | 40 | 0.05 in | 1.27 mm | Header | Copper Alloy | All | Circular | Board Guide | Latch Holder | Solder | UL94 V-0 | 0.125 in | 3.18 mm | Black | Through Hole, Right Angle | Thermoplastic | Board to Board, Cable | 30 VAC | Gold | Automotive, General Purpose, Medical, Telecommunications | 2.54 mm | 0.1 in | Tin | Shrouded - 2 Wall | Male Pin | 150 Áin | 3.81 Ám | 30 Áin | 0.76 Ám |
TE Connectivity AMP Connectors 104074-2 | 4.83 mm | 0.19 in | 1 | -65 ░C | 105 ░C | 0.05 in | 1.27 mm | Header | Copper Alloy | All | Circular | Board Guide | Latch Holder | Solder | UL94 V-0 | 0.125 in | 3.18 mm | Black | Through Hole, Right Angle | Thermoplastic | Board to Board, Cable | 30 VAC | Gold | Automotive, General Purpose, Medical, Telecommunications | 2.54 mm | 0.1 in | Tin-Lead | Shrouded - 2 Wall | Male Pin | 150 Áin | 3.81 Ám | 30 Áin | 0.76 Ám | |
TE Connectivity AMP Connectors 5-104074-2 | 4.83 mm | 0.19 in | 1 | -65 ░C | 105 ░C | 0.05 in | 1.27 mm | Header | Copper Alloy | All | Circular | Board Guide | Latch Holder | Solder | UL94 V-0 | 0.125 in | 3.18 mm | Black | Through Hole, Right Angle | Thermoplastic | Board to Board, Cable | 30 VAC | Gold | Automotive, General Purpose, Medical, Telecommunications | 2.54 mm | 0.1 in | Tin | Shrouded - 2 Wall | Male Pin | 150 Áin | 3.81 Ám | 30 Áin | 0.76 Ám |
Description
General part information
104074 Series
Connector Header Through Hole, Right Angle 12 position 0.050" (1.27mm)
