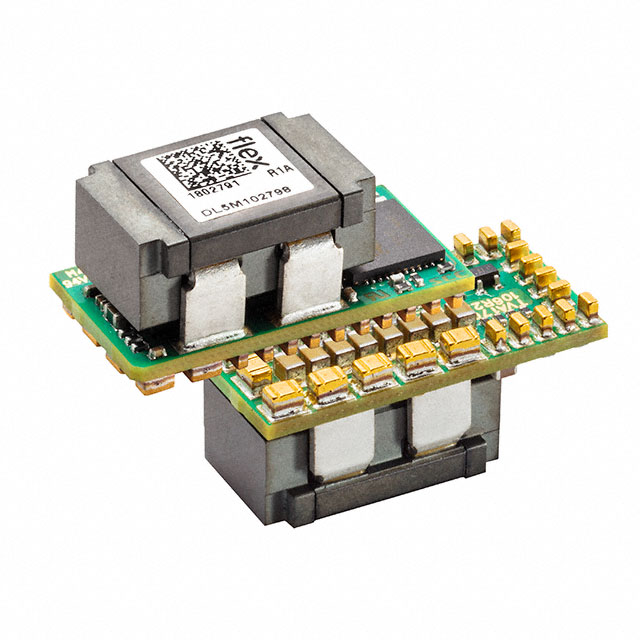

BMR4690000/001
ActiveFlex Power Modules
DC DC CONVERTER 0.6-5V 400W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BMR4690000/001
ActiveFlex Power Modules
DC DC CONVERTER 0.6-5V 400W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BMR4690000/001 | BMR469 Series |
|---|---|---|
| Applications | ITE (Commercial) | ITE (Commercial) |
| Approval Agency | CB, UL, IEC, TUV, CSA | CB, UL, IEC, TUV, CSA |
| Control Features | - | Active High, Enable |
| Current - Output (Max) [Max] | 80 A | 50 - 80 A |
| Efficiency | 95.9 % | 94.4 - 95.9 % |
| Features | PMBus™, Adjustable Output, Remote Sense | PMBus™, Adjustable Output, Remote Sense, Remote On/Off |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 28-SMD Module | 28-SMD Module |
| Power (Watts) | 400 W | 250 - 400 W |
| Size / Dimension [x] | 1 in | 1 in |
| Size / Dimension [x] | 25.4 mm | 25.4 mm |
| Size / Dimension [y] | 12.7 mm | 12.7 - 14.5 mm |
| Size / Dimension [y] | 0.5 in | 0.5 - 0.57 in |
| Size / Dimension [z] | 0.46 in | 0.23 - 0.46 in |
| Size / Dimension [z] | 11.6 mm | 5.8 - 11.6 mm |
| Standard Number | 62368-1 | 62368-1 |
| Type | Non-Isolated PoL Module, Digital | Non-Isolated PoL Module, Digital |
| Voltage - Input (Max) [Max] | 14 V | 14 V |
| Voltage - Input (Min) [Min] | 7.5 V | 7.5 V |
| Voltage - Output 1 [Max] | 5 V | 5 V |
| Voltage - Output 1 [Min] | 0.6 V | 0.6 V |
BMR469 Series
DC DC CONVERTER 0.6-5V 400W
| Part | Approval Agency | Mounting Type | Voltage - Input (Min) [Min] | Efficiency | Features | Package / Case | Power (Watts) | Voltage - Input (Max) [Max] | Standard Number | Number of Outputs | Type | Operating Temperature [Max] | Operating Temperature [Min] | Applications | Voltage - Output 1 [Max] | Voltage - Output 1 [Min] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Current - Output (Max) [Max] | Control Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Flex Power Modules BMR4690000/001 | CB, CSA, IEC, TUV, UL | Surface Mount | 7.5 V | 95.9 % | Adjustable Output, PMBus™, Remote Sense | 28-SMD Module | 400 W | 14 V | 62368-1 | 1 | Non-Isolated PoL Module, Digital | 125 °C | -40 °C | ITE (Commercial) | 5 V | 0.6 V | 1 in | 0.46 in | 11.6 mm | 12.7 mm | 25.4 mm | 0.5 in | 80 A | |
Flex Power Modules BMR4696001/001 | CB, CSA, IEC, TUV, UL | Surface Mount | 7.5 V | 94.4 % | Adjustable Output, PMBus™, Remote On/Off, Remote Sense | 28-SMD Module | 250 W | 14 V | 62368-1 | 1 | Non-Isolated PoL Module, Digital | 125 °C | -40 °C | ITE (Commercial) | 5 V | 0.6 V | 1 in | 0.23 " | 5.8 mm | 14.5 mm | 25.4 mm | 0.57 in | 50 A | Active High, Enable |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 38.94 | |
| 5 | $ 36.71 | |||
| 10 | $ 35.79 | |||
| 25 | $ 34.61 | |||
| 50 | $ 33.74 | |||
| 100 | $ 32.89 | |||
| Digi-Reel® | 1 | $ 38.94 | ||
| 5 | $ 36.71 | |||
| 10 | $ 35.79 | |||
| 25 | $ 34.61 | |||
| 50 | $ 33.74 | |||
| 100 | $ 32.89 | |||
| Tape & Reel (TR) | 220 | $ 31.96 | ||
Description
General part information
BMR469 Series
Non-Isolated PoL Module, Digital DC DC Converter 1 Output 0.6 ~ 5V 80A 7.5V - 14V Input
