H2MXH-1006M

Active

Assmann WSW Components

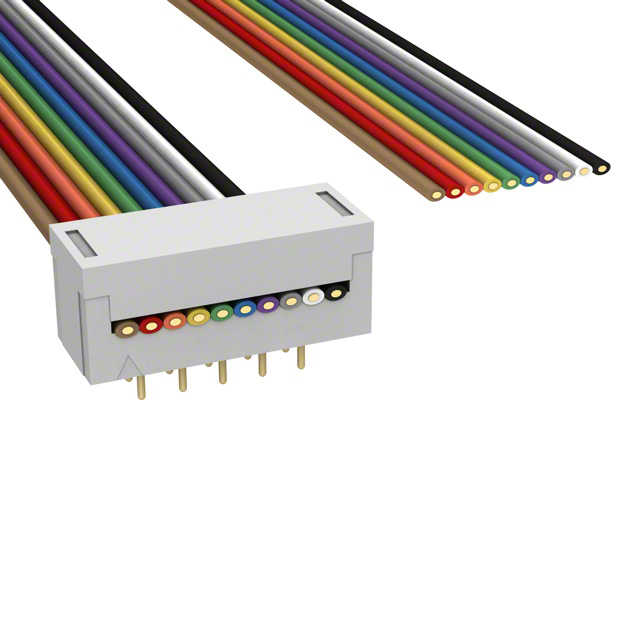

DIP CABLE - HDM10H/AE10M/X

Search across all available documentation for this part.

Active

Assmann WSW Components

DIP CABLE - HDM10H/AE10M/X

Technical Specifications

Parameters and characteristics for this part

Part	Pitch - Connector	Pitch - Connector	Length [x]	Length [x]	Number of Rows	Shielding	Pitch - Cable	Pitch - Cable	Contact Finish Thickness	Contact Finish Thickness	Color	Number of Positions	Contact Finish	Cable Termination	Usage	Connector Type	Length	Length	Length
Assmann WSW Components H2MXH-1036M	0.1 in	2.54 mm	3 ft	914.4 mm	2	Unshielded	0.05 "	1.27 mm	0.76 Ám	30 Áin	Multiple Ribbon	10	Gold	IDC	Board In Socket (0.1")	DIP to Cable
Assmann WSW Components H2MXH-1036G	0.1 in	2.54 mm	3 ft	914.4 mm	2	Unshielded	0.05 "	1.27 mm	0.76 Ám	30 Áin		10	Gold	IDC	Board In Socket (0.1")	DIP to Cable
Assmann WSW Components H2MXH-1006M	0.1 in	2.54 mm			2	Unshielded	0.05 "	1.27 mm	0.76 Ám	30 Áin	Multiple Ribbon	10	Gold	IDC	Board In Socket (0.1")	DIP to Cable	152.4 mm	6 "	0.5 '
Assmann WSW Components H2MXH-1006G	0.1 in	2.54 mm			2	Unshielded	0.05 "	1.27 mm	0.76 Ám	30 Áin		10	Gold	IDC	Board In Socket (0.1")	DIP to Cable	152.4 mm	6 "	0.5 '
Assmann WSW Components H2MXH-1018M	0.1 in	2.54 mm	1.5 ft	457.2 mm	2	Unshielded	0.05 "	1.27 mm	0.76 Ám	30 Áin	Multiple Ribbon	10	Gold	IDC	Board In Socket (0.1")	DIP to Cable

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Position Cable Assembly Rectangular DIP to Cable 0.500' (152.40mm, 6.00")
