307-074-520-278
ActiveEDAC Inc.

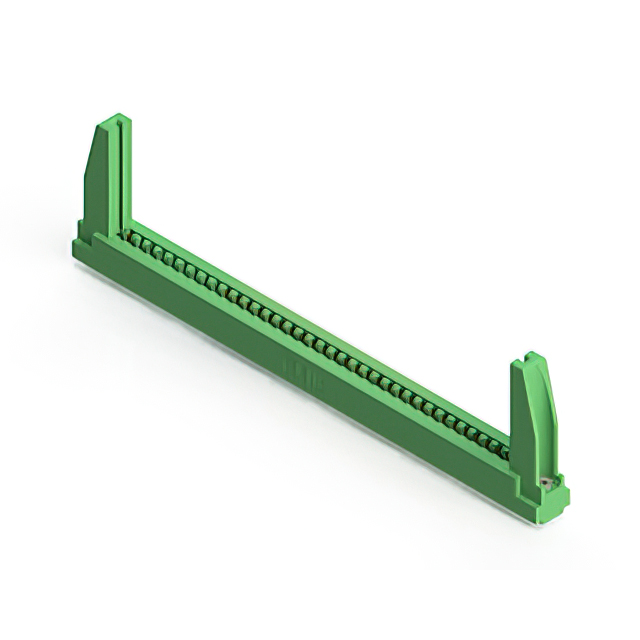

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 74 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
307-074-520-278
ActiveEDAC Inc.
CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 74 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 307-074-520-278 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Features | Card Guides |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 74 |
| Number of Positions/Bay/Row [custom] | 37 |
| Number of Positions/Bay/Row [custom] | 37 |
| Number of Positions/Bay/Row [custom] | 37 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
307-074 Series
...
| Part | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Termination Rows | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Mounting Type | Material - Insulation | Color | Contact Material | Card Type | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions | Gender | Termination | Number of Rows | Operating Temperature [Min] | Operating Temperature [Max] | Read Out | Contact Type | Flange Feature | Pitch [x] | Pitch [x] | Features | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 10 Áin | 0.25 Ám | Gold | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Polyester Thermoplastic | Green | Copper Alloy | Non Specified - Dual Edge | 37 | 37 | 37 | 74 | Female | Wire Wrap | 2 | -40 °C | 105 ░C | Dual | Semi Bellows | 4-40 Flush Mount Threaded Insert Top Opening | 0.156 in | 3.96 mm | Card Guides | ||
EDAC Inc. | Tin | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Polyester Thermoplastic | Green | Copper Alloy | Non Specified - Dual Edge | 37 | 37 | 37 | 74 | Female | Wire Wrap | 2 | -40 °C | 105 ░C | Dual | Semi Bellows | Flush Mount M3 Threaded Insert Top Opening | 0.156 in | 3.96 mm | |||||
EDAC Inc. | 10 Áin | 0.25 Ám | Gold | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Board Edge Straddle Mount | Polyester Thermoplastic | Green | Copper Alloy | Non Specified - Dual Edge | 37 | 37 | 37 | 74 | Female | Solder | 2 | -40 °C | 105 ░C | Dual | Semi Bellows | Flush Mount Side Opening Unthreaded | 0.156 in | 3.96 mm | Card Extender | 3.25 mm | 0.128 " |
EDAC Inc. | 10 Áin | 0.25 Ám | Gold | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Polyester Thermoplastic | Green | Copper Alloy | Non Specified - Dual Edge | 37 | 37 | 37 | 74 | Female | Solder | 2 | -40 °C | 105 ░C | Dual | Semi Bellows | 4-40 Flush Mount Threaded Insert Top Opening | 0.156 in | 3.96 mm | Card Guides | ||
EDAC Inc. | 10 Áin | 0.25 Ám | Gold | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Polyester Thermoplastic | Green | Copper Alloy | Non Specified - Dual Edge | 37 | 37 | 37 | 74 | Female | Solder | 2 | -40 °C | 105 ░C | Dual | Semi Bellows | 0.156 in | 3.96 mm | ||||
EDAC Inc. | Tin | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Polyester Thermoplastic | Green | Copper Alloy | Non Specified - Dual Edge | 37 | 37 | 37 | 74 | Female | Wire Wrap | 2 | -40 °C | 105 ░C | Dual | Semi Bellows | 4-40 Flush Mount Threaded Insert Top Opening | 0.156 in | 3.96 mm | Card Guides | ||||
EDAC Inc. | 10 Áin | 0.25 Ám | Gold | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole Right Angle | Polyester Thermoplastic | Green | Copper Alloy | Non Specified - Dual Edge | 37 | 37 | 37 | 74 | Female | Solder | 2 | -40 °C | 105 ░C | Dual | Semi Bellows | Flush Mount Top Opening Unthreaded | 0.156 in | 3.96 mm | 3.96 mm | 0.156 in | |
EDAC Inc. | Tin | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Polyester Thermoplastic | Green | Copper Alloy | Non Specified - Dual Edge | 37 | 37 | 37 | 74 | Female | Solder Eyelet(s) | 2 | -40 °C | 105 ░C | Dual | Semi Bellows | 4-40 Flush Mount Threaded Insert Top Opening | 0.156 in | 3.96 mm | Card Guides | ||||
EDAC Inc. | Tin | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Polyester Thermoplastic | Green | Copper Alloy | Non Specified - Dual Edge | 37 | 37 | 37 | 74 | Female | Solder | 2 | -40 °C | 105 ░C | Dual | Semi Bellows | 0.156 in | 3.96 mm | ||||||
EDAC Inc. | 10 Áin | 0.25 Ám | Gold | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Polyester Thermoplastic | Green | Copper Alloy | Non Specified - Dual Edge | 37 | 37 | 37 | 74 | Female | Wire Wrap | 2 | -40 °C | 105 ░C | Dual | Semi Bellows | 4-40 Flush Mount Threaded Insert Top Opening | 0.156 in | 3.96 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
307-074 Series
74 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
