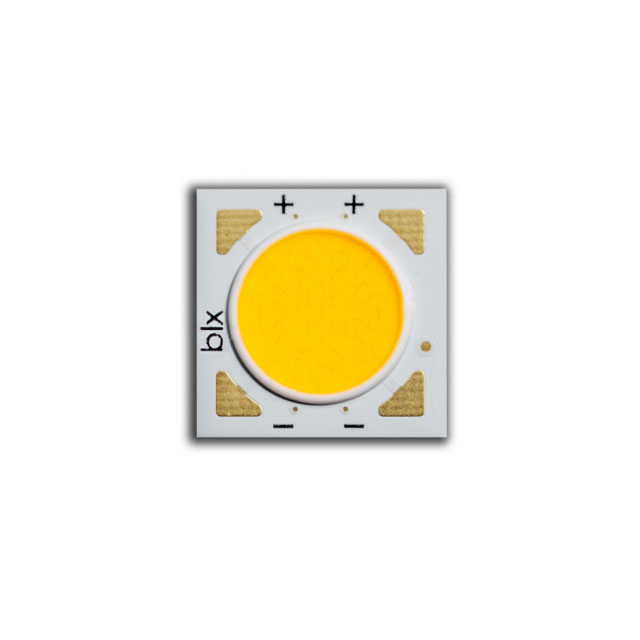

BXRE-50C0801-D-84

Active

BRIDGELUX

LED COB V SER GEN 8 WHT SQ 5000K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsV Series™ Gen 8 Sell Sheet Datasheet

BXRE-50C0801-D-84

Active

BRIDGELUX

LED COB V SER GEN 8 WHT SQ 5000K

Deep-Dive with AI

DocumentsV Series™ Gen 8 Sell Sheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BXRE-50C0801-D-84	BXRE-50 Series

CCT (K)	5000 K	5000 K
Color	Cool, White	Cool, White
Configuration	Square	Square
CRI (Color Rendering Index)	70	70 - 98
Current - Max	-	1 - 950 A
Current - Test	300 mA	1.05 - 900 A
Features	-	Dimming
Height	-	1.65 - 1.7 mm
Lens Type	Flat	Flat
Light Emitting Surface (LES) [diameter]	8 mm	6.1 - 23.3 mm
Lumens/Watt @ Current - Test	189 lm/W	115 - 197 lm/W
Luminous Flux @ Current/Temperature	953 lm	416 - 11932 lm
Size / Dimension	-	12.5 - 28 mm
Size / Dimension	-	12.5 - 28 mm
Temperature - Test	-	85 °C
Type	Chip On Board (COB)	Chip On Board (COB)
Viewing Angle	-	120 °
Voltage - Forward (Vf) (Typ)	16.8 V	9 - 52 V

BXRE-50 Series

LED COB V22 CL WHT SQUARE 5000K

...

Part	Light Emitting Surface (LES) [diameter]	Current - Max [Max]	CRI (Color Rendering Index)	Viewing Angle	Size / Dimension [y]	Size / Dimension [x]	Type	Current - Test	Height [z]	Lumens/Watt @ Current - Test	Lens Type	Color	Voltage - Forward (Vf) (Typ)	Temperature - Test	Configuration	Luminous Flux @ Current/Temperature	CCT (K)	Features
BRIDGELUX BXRE-50C6501-C-73	22.6 mm	2.88 A	70	120 °	28 mm	28 mm	Chip On Board (COB)	1.44 A	1.7 mm	164 lm/W	Flat	Cool, White	50.7 V	85 °C	Square	11932 lm
BRIDGELUX BXRE-50E1000-B-24	9.9 mm	700 mA	80	120 °	15.8 mm	15.8 mm	Chip On Board (COB)	350 mA	1.7 mm	136 lm/W	Flat	Cool, White	26.5 V		Square	1263 lm	5000 K
BRIDGELUX BXRE-50G2001-C-83	14.8 mm	1.75 A	90	120 °	19 mm	19 mm	Chip On Board (COB)	500 mA	1.65 mm	161 lm/W	Flat	Cool, White	33.4 V		Square	2682 lm
BRIDGELUX BXRE-50C2000-C-24	13.4 mm	1.05 A	70	120 °	15.8 mm	15.8 mm	Chip On Board (COB)	500 mA	1.7 mm	148 lm/W	Flat	Cool, White	32.3 V		Square	2394 lm	5000 K
BRIDGELUX BXRE-50E2000-C-24	13.4 mm	1.05 A	80	120 °	15.8 mm	15.8 mm	Chip On Board (COB)	500 mA	1.7 mm	139 lm/W	Flat	Cool, White	32.3 V		Square	2252 lm	5000 K
BRIDGELUX BXRE-50G10F0-B-83	10 mm	200 mA	90	120 °			Chip On Board (COB)		1.65 mm	169 lm/W	Flat	Cool, White	33.4 V	85 °C	Square	1132 lm	5000 K	Dimming
BRIDGELUX BXRE-50G1001-C-83	10.2 mm	1 A	90	120 °			Chip On Board (COB)	300 mA	1.65 mm	160 lm/W	Flat	Cool, White	30.7 V		Square	1477 lm
BRIDGELUX BXRE-50G2001-C-74	14 mm	1.26 A	90		19 mm	19 mm	Chip On Board (COB)	630 mA	1.7 mm	130 lm/W	Flat	Cool, White	33.9 V	85 °C	Square	2780 lm	5000 K
BRIDGELUX BXRE-50C4001-B-73	19.2 mm	1.8 A	70	120 °	24 mm	24 mm	Chip On Board (COB)	900 mA	1.7 mm		Flat	Cool, White	34 V	85 °C	Square	4963 lm
BRIDGELUX BXRE-50G6501-B-73	22.6 mm	2.34 A	90	120 °	28 mm	28 mm	Chip On Board (COB)		1.7 mm	131 lm/W	Flat	Cool, White	50.7 V	85 °C	Square	7755 lm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 2.26
		10	$ 1.59
		100	$ 1.34

Description

General part information

BXRE-50 Series

LED Lighting COBs Engines Modules Chip On Board (COB) V Series™ Gen 8 White, Cool Square

Documents

Technical documentation and resources

V Series™ Gen 8 Sell Sheet

Datasheet
