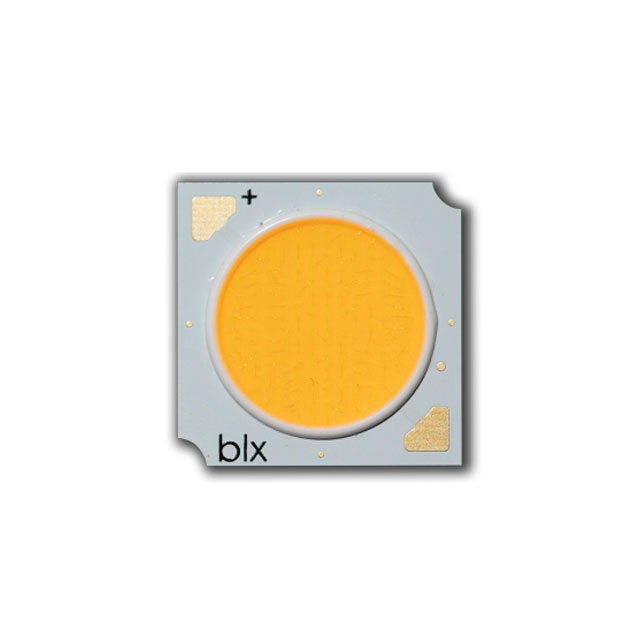

BXRE-50G2001-C-83

Active

BRIDGELUX

LED COB V13 CL WHT SQUARE 5000K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BXRE-50G2001-C-83

Active

BRIDGELUX

LED COB V13 CL WHT SQUARE 5000K

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 8.07
		10	$ 5.85
		100	$ 4.84
		500	$ 4.24
		1000	$ 4.00
		2000	$ 3.91

Description

General part information

BXRE-50 Series

LED Lighting COBs Engines Modules Chip On Board (COB) Gen 8 V13 Array White, Cool Square

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BXRE-50G2001-C-83	BXRE-50 Series

CCT (K)	-	5000 K
Color	Cool, White	Cool, White
Configuration	Square	Square
CRI (Color Rendering Index)	90	70 - 98
Current - Max [Max]	1.75 A	1 - 950 A
Current - Test	500 mA	1.05 - 900 A
Features	-	Dimming
Height [z]	1.65 mm	1.65 - 1.7 mm
Lens Type	Flat	Flat
Light Emitting Surface (LES) [diameter]	14.8 mm	6.1 - 23.3 mm
Lumens/Watt @ Current - Test	161 lm/W	115 - 197 lm/W
Luminous Flux @ Current/Temperature	2682 lm	416 - 11932 lm
Size / Dimension [x]	19 mm	12.5 - 28 mm
Size / Dimension [y]	19 mm	12.5 - 28 mm
Temperature - Test	-	85 °C
Type	Chip On Board (COB)	Chip On Board (COB)
Viewing Angle	120 °	120 °
Voltage - Forward (Vf) (Typ)	33.4 V	9 - 52 V

BXRE-50 Series

LED COB V22 CL WHT SQUARE 5000K

...

Part	Light Emitting Surface (LES) [diameter]	Current - Max [Max]	CRI (Color Rendering Index)	Viewing Angle	Size / Dimension [y]	Size / Dimension [x]	Type	Current - Test	Height [z]	Lumens/Watt @ Current - Test	Lens Type	Color	Voltage - Forward (Vf) (Typ)	Temperature - Test	Configuration	Luminous Flux @ Current/Temperature	CCT (K)	Features
BRIDGELUX BXRE-50C6501-C-73	22.6 mm	2.88 A	70	120 °	28 mm	28 mm	Chip On Board (COB)	1.44 A	1.7 mm	164 lm/W	Flat	Cool, White	50.7 V	85 °C	Square	11932 lm
BRIDGELUX BXRE-50E1000-B-24	9.9 mm	700 mA	80	120 °	15.8 mm	15.8 mm	Chip On Board (COB)	350 mA	1.7 mm	136 lm/W	Flat	Cool, White	26.5 V		Square	1263 lm	5000 K
BRIDGELUX BXRE-50G2001-C-83	14.8 mm	1.75 A	90	120 °	19 mm	19 mm	Chip On Board (COB)	500 mA	1.65 mm	161 lm/W	Flat	Cool, White	33.4 V		Square	2682 lm
BRIDGELUX BXRE-50C2000-C-24	13.4 mm	1.05 A	70	120 °	15.8 mm	15.8 mm	Chip On Board (COB)	500 mA	1.7 mm	148 lm/W	Flat	Cool, White	32.3 V		Square	2394 lm	5000 K
BRIDGELUX BXRE-50E2000-C-24	13.4 mm	1.05 A	80	120 °	15.8 mm	15.8 mm	Chip On Board (COB)	500 mA	1.7 mm	139 lm/W	Flat	Cool, White	32.3 V		Square	2252 lm	5000 K
BRIDGELUX BXRE-50G10F0-B-83	10 mm	200 mA	90	120 °			Chip On Board (COB)		1.65 mm	169 lm/W	Flat	Cool, White	33.4 V	85 °C	Square	1132 lm	5000 K	Dimming
BRIDGELUX BXRE-50G1001-C-83	10.2 mm	1 A	90	120 °			Chip On Board (COB)	300 mA	1.65 mm	160 lm/W	Flat	Cool, White	30.7 V		Square	1477 lm
BRIDGELUX BXRE-50G2001-C-74	14 mm	1.26 A	90		19 mm	19 mm	Chip On Board (COB)	630 mA	1.7 mm	130 lm/W	Flat	Cool, White	33.9 V	85 °C	Square	2780 lm	5000 K
BRIDGELUX BXRE-50C4001-B-73	19.2 mm	1.8 A	70	120 °	24 mm	24 mm	Chip On Board (COB)	900 mA	1.7 mm		Flat	Cool, White	34 V	85 °C	Square	4963 lm
BRIDGELUX BXRE-50G6501-B-73	22.6 mm	2.34 A	90	120 °	28 mm	28 mm	Chip On Board (COB)		1.7 mm	131 lm/W	Flat	Cool, White	50.7 V	85 °C	Square	7755 lm
