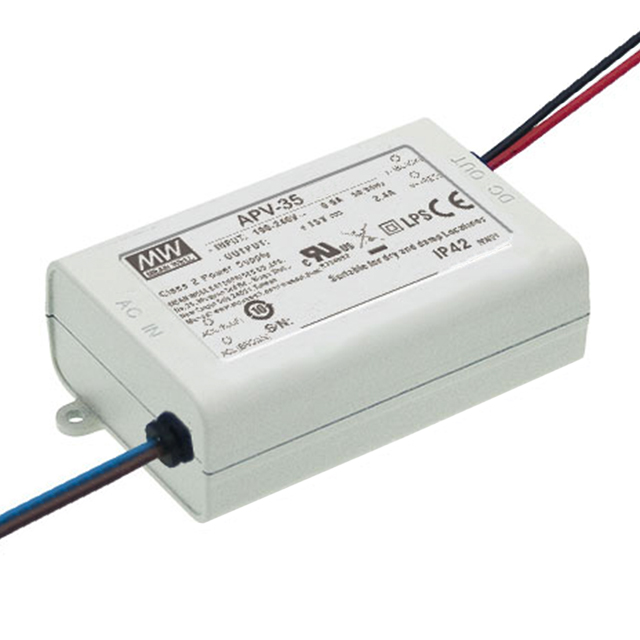

APV-35-24

Active

MEAN WELL USA Inc.

LED DRIVER CV AC/DC 24V 1.5A

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

LED DRIVER CV AC/DC 24V 1.5A

Technical Specifications

Parameters and characteristics commom to parts in this series

LED DRIVER CV AC/DC 36V 1A

Part	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Voltage - Output	Topology	Termination Style	Features	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Approval Agency	Voltage - Isolation	Type	Mounting Type	Ratings	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Number of Outputs
MEAN WELL USA Inc. APV-35-36	264 VAC	1 A	90 VAC	36 V	AC DC Converter	Wire Leads	OCP, OVP, SCP	3.31 "	57 mm	29.5 mm	84 mm	2.24 "	1.16 "	CE, cURus	3000 V	Constant Voltage	Chassis Mount	IP42	85 %	70 °C	-30 ░C	36 W	1
MEAN WELL USA Inc. APV-35-5	264 VAC	5 A	90 VAC	5 V	AC DC Converter	Wire Leads	OCP, OVP, SCP	3.31 "	57 mm	29.5 mm	84 mm	2.24 "	1.16 "	CE, cURus	3000 V	Constant Voltage	Chassis Mount	IP42	76.5 %	70 °C	-30 ░C	25 W	1
MEAN WELL USA Inc. APV-35-12	264 VAC	3 A	90 VAC	12 V	AC DC Converter	Wire Leads	OCP, OVP, SCP	3.31 "	57 mm	29.5 mm	84 mm	2.24 "	1.16 "	CE, cURus	3000 V	Constant Voltage	Chassis Mount	IP42	83 %	70 °C	-30 ░C	36 W	1
MEAN WELL USA Inc. APV-35-24	264 VAC	1.5 A	90 VAC	24 V	AC DC Converter	Wire Leads	OCP, OVP, SCP	3.31 "	57 mm	29.5 mm	84 mm	2.24 "	1.16 "	CE, cURus	3000 V	Constant Voltage	Chassis Mount	IP42	84 %	70 °C	-30 ░C	36 W	1
MEAN WELL USA Inc. APV-35-15	264 VAC	2.4 A	90 VAC	15 VDC	AC DC Converter	Wire Leads	OCP, OVP, SCP	3.31 "	57 mm	29.5 mm	84 mm	2.24 "	1.16 "	CE, cURus	3000 V	Constant Voltage	Chassis Mount	IP42	84 %	70 °C	-30 ░C	36 W	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1.5A 24V Constant Voltage LED Driver AC DC Converter Topology 1 Output
