Technical Specifications
Parameters and characteristics for this part
| Specification | EVLONE65W |
|---|---|
| Contents | Board(s) |
| Embedded | True |
| Function | USB Type-C® Power Delivery (PD) |
| Primary Attributes [Max] | 265 VAC |
| Primary Attributes [Min] | 90 VAC |
| Secondary Attributes | On-Board Test Points |
| Supplied Contents | Board(s) |
| Type | Power Management |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 172.50 | |
Description
General part information
EVLONE65W Series

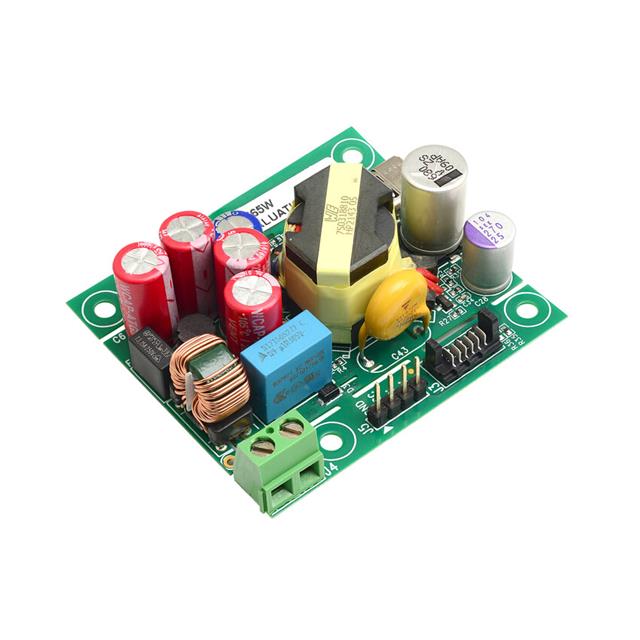

The EVLONE65W is a high power density USB-PD board supporting Programmable Power Supply (PPS). The design supports wide range input voltage and can deliver five fixed PDOs and two APDOs.
This board is based on ST-ONE, the world’s first digital controller embedding an Arm® Cortex® M0+ core, an offline programmable controller with synchronous rectification, and USB-PD PHY in a single package.
Such a system is specifically designed to control ZVS non-complementary active clamp flyback converters to create high power density chargers and adapters with USB-PD interface. The device includes an active clamp flyback controller and its HV startup on the primary side, a microcontroller and all the peripherals required to control the conversion and the USB-PD communication on the secondary side. The two sides are connected through an embedded galvanically isolated dual communication channel.
