2903056

Active

Phoenix Contact

CONN MODULE DB37 FEEDTHROUGH

Search across all available documentation for this part.

Active

Phoenix Contact

CONN MODULE DB37 FEEDTHROUGH

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2903056	DFLK-D37 Series

Convert From (Adapter End)	Terminal Blocks, Screwless Connection, 37 Pos, 2 Rows	Terminal Blocks, Screw Connection, Terminal Blocks, Screwless Connection, 37 Pos, 2 Rows
Convert From (Adapter End)	-	2 - 37 Rows
Convert To (Adapter End)	Male Pins, D-Sub	Male Pins, D-Sub, Female Sockets
Convert To (Adapter End)	2 Rows, 37 Pos	2 - 37 Rows
Mounting Type	Feed Through, Panel Mount	Feed Through, Panel Mount
Wire Gauge [Max]	24 AWG	24 AWG
Wire Gauge [Min]	12 AWG	12 AWG

INTER MOD D SUB PINSTRIP 37 POS

Part	Mounting Type	Convert To (Adapter End)	Convert To (Adapter End)	Wire Gauge [Min]	Wire Gauge [Max]	Convert From (Adapter End)	Convert From (Adapter End)
Phoenix Contact 2280336	Feed Through, Panel Mount	D-Sub, Male Pins	2 Rows, 37 Pos	12 AWG	24 AWG	2 Rows, 37 Pos	Screw Connection, Terminal Blocks
Phoenix Contact 2280349	Feed Through, Panel Mount	D-Sub, Female Sockets	2 Rows, 37 Pos	12 AWG	24 AWG	2 Rows, 37 Pos	Screw Connection, Terminal Blocks
Phoenix Contact 2903056	Feed Through, Panel Mount	D-Sub, Male Pins	2 Rows, 37 Pos	12 AWG	24 AWG		Terminal Blocks, Screwless Connection, 37 Pos, 2 Rows
Phoenix Contact 2903069	Feed Through, Panel Mount	D-Sub, Female Sockets	2 Rows, 37 Pos	12 AWG	24 AWG		Terminal Blocks, Screwless Connection, 37 Pos, 2 Rows

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 194.57

General part information

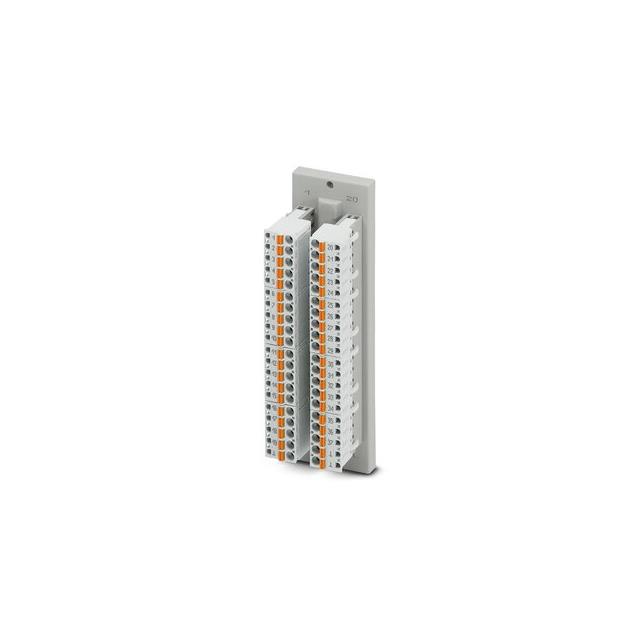

Adapter Terminal Blocks, Screwless Connection, 37 Pos, 2 Rows To D-Sub, Male Pins, 37 Pos, 2 Rows
