Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 228.74 | |
| 10 | $ 210.44 | |||
| 50 | $ 194.43 | |||
General part information

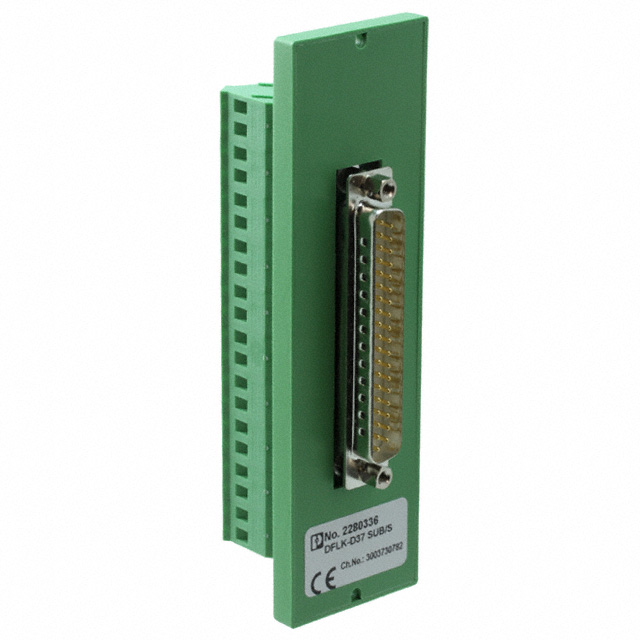

Adapter Terminal Blocks, Screw Connection, 37 Pos, 2 Rows To D-Sub, Male Pins, 37 Pos, 2 Rows
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | 2280336 | DFLK-D37 Series |
|---|---|---|
| Convert From (Adapter End) | 2 Rows, 37 Pos | 2 - 37 Rows |
| Convert From (Adapter End) | Terminal Blocks, Screw Connection | Terminal Blocks, Screw Connection, Terminal Blocks, Screwless Connection, 37 Pos, 2 Rows |
| Convert To (Adapter End) | Male Pins, D-Sub | Male Pins, D-Sub, Female Sockets |
| Convert To (Adapter End) | 2 Rows, 37 Pos | 2 - 37 Rows |
| Mounting Type | Feed Through, Panel Mount | Feed Through, Panel Mount |
| Wire Gauge [Max] | 24 AWG | 24 AWG |
| Wire Gauge [Min] | 12 AWG | 12 AWG |
INTER MOD D SUB PINSTRIP 37 POS
| Part | Mounting Type | Convert To (Adapter End) | Convert To (Adapter End) | Wire Gauge [Min] | Wire Gauge [Max] | Convert From (Adapter End) | Convert From (Adapter End) |
|---|---|---|---|---|---|---|---|
Phoenix Contact 2280336 | Feed Through, Panel Mount | D-Sub, Male Pins | 2 Rows, 37 Pos | 12 AWG | 24 AWG | 2 Rows, 37 Pos | Screw Connection, Terminal Blocks |
Phoenix Contact 2280349 | Feed Through, Panel Mount | D-Sub, Female Sockets | 2 Rows, 37 Pos | 12 AWG | 24 AWG | 2 Rows, 37 Pos | Screw Connection, Terminal Blocks |
Phoenix Contact 2903056 | Feed Through, Panel Mount | D-Sub, Male Pins | 2 Rows, 37 Pos | 12 AWG | 24 AWG | Terminal Blocks, Screwless Connection, 37 Pos, 2 Rows | |
Phoenix Contact 2903069 | Feed Through, Panel Mount | D-Sub, Female Sockets | 2 Rows, 37 Pos | 12 AWG | 24 AWG | Terminal Blocks, Screwless Connection, 37 Pos, 2 Rows |
